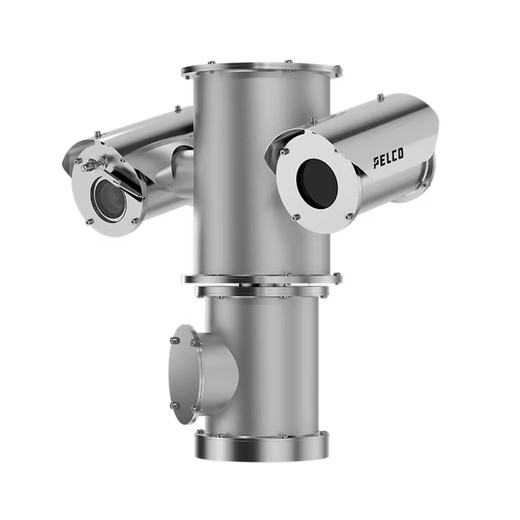

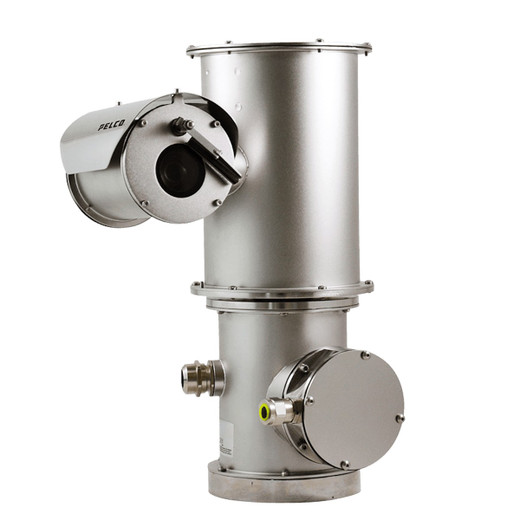

Pelco EABE1-2X40VF09-SPT0-AC 2MP 40x PTZ Camera

We've deployed the Pelco Esprit Anti-Corrosion Enhanced 1 platform across maritime, chemical processing, and pulp-mill sites where standard camera housings fail predictably within a year. The 316L stainless steel advantage is not cosmetic—it's operational. We've seen customers avoid a second camera replacement cycle simply by specifying 316L upfront, which translates to 15–20% lower total cost of ownership over a 5-year surveillance lifecycle when factoring in labor, downtime, and inventory carrying costs. The 40× zoom is genuinely useful on sprawling industrial campuses: a single PTZ mounted on a central utility pole covers gate access, vessel berthing zones, and tank farm perimeter in ways that would otherwise require 3–4 fixed cameras. The 256 presets allow operators to lock cameras on critical zones without continuous manual panning, reducing surveillance fatigue and improving detection consistency.

Technical Highlights:

• 316L Stainless Steel Housing: Austenitic stainless grade with molybdenum content resists pitting corrosion in salt spray (ASTM B117 salt-fog testing) and chlorine-rich environments. On marine docks or chemical plants, this eliminates the need for conformal coatings, sacrificial anodes, or annual housing replacement—direct capex and labor savings.
• 40× Optical Zoom (4.3–129 mm): Focal length range covers 77° wide-angle sweeps to 2.1° telephoto capture. Real-world benefit: a single camera mounted 50 meters from a gate can acquire facial detail of personnel entering secure areas without requiring separate facial-recognition camera placement.
• 130 dB WDR: Handles extreme contrast scenes (sunlit dock with shadowed warehouse entry, metallic tank farm with sky reflection). On industrial sites, this eliminates image ghosting and shadow crushing that would otherwise blind operators to activity in backlit zones.
• 0.1 lux Color Minimum Illumination: Captures color video in pre-dawn/post-dusk conditions without external lighting. On 24/7 industrial operations, this reduces the capex and maintenance overhead of external floodlight rigs that attract insects and require seasonal cleaning.
• 360° Continuous Pan; -90° to +1° Tilt: Unlike stop-start pan-tilt cameras, continuous panning enables smooth operator control and automated patrol sweeps. The -90° tilt range (looking straight down) is critical for monitoring tank-top access or dock walkways directly beneath the camera; the +1° upper tilt limit is realistic for most rooftop/pole-mount installations where over-tilt causes downward video loss.
• ONVIF Profile S, T, G, M Compliance: Ensures plug-and-play integration with heterogeneous VMS environments. We've deployed this camera alongside Genetec Omnicast and Milestone XProtect without codec negotiation issues—H.265 streams when the VMS supports it, graceful fallback to H.264 on older systems.

Deployment Considerations:

• Salt-spray and corrosive-vapor environments require stainless fasteners and non-ferrous cable glands throughout the installation. Do not use mild-steel conduit, aluminum brackets, or zinc-plated hardware; they will corrode and degrade electrical connections. Specify 316L or 304 stainless mounting hardware and silicone-sealed M20 cable entries.
• The IP68 rating (submersion-capable) requires careful attention to drain holes and condensation management in warm, humid climates. We've seen moisture accumulation in the optics on coastal sites with high dew-point swings. Ensure the camera is mounted with a slight tilt (1–2°) to prevent water pooling on the dome, and verify that drain ports are clear before installation.
• ATEX/IECEx certification applies to Zone 2 hazardous areas (explosive atmosphere possible but unlikely). If your site is classified as Zone 1 (frequent or prolonged explosive atmosphere), this camera does not meet the regulatory requirement—upgrade to Zone 1 or non-hazardous equipment will be necessary. Verify zone classification with your facility HSE team before procurement.
• PoE+ power draw (~90W) requires a dedicated PoE+ switch port or a low-impedance 24VAC/DC hardwired supply. Standard PoE (802.3af, 15W ceiling) will not suffice; the camera will brown out under zoom or IR load. Budget adequate power distribution to avoid voltage sag on the supply run.
• The 256-preset architecture is powerful for fixed monitoring points but less efficient for dynamic patrol scenarios. Operators controlling the camera in manual mode will experience normal pan-tilt lag (1–2 sec response time per joystick command); presets snap instantly. Plan preset layouts during site survey to maximize operator efficiency.
• H.265 codec support varies by VMS platform maturity. Milestone and Genetec support it; older ExacqVision or custom integrations may not. Test codec negotiation in your lab environment before rolling out across a fleet of these cameras to avoid surprise compatibility issues.

The Esprit Anti-Corrosion Enhanced 1 platform is the right choice for integrators specifying surveillance in salt-spray, chemical-vapor, or washdown-intensive environments where camera lifespan and operational reliability directly impact site security and compliance. If your customer site is inland, non-corrosive, and budget-constrained, a standard aluminum PTZ will suffice and offer better capex economics. But on maritime, petrochemical, or food-processing facilities, the 316L investment pays for itself through reduced lifecycle downtime and replacement cycles. Explore more options in the Pelco catalog.
