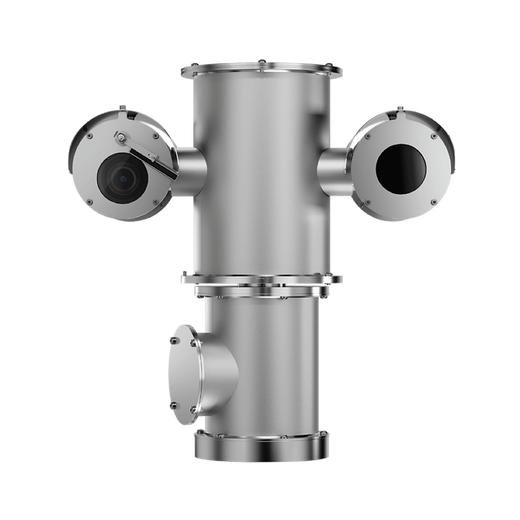

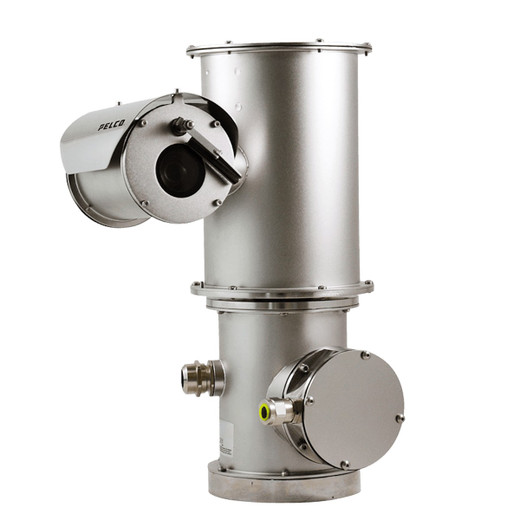

Pelco EABE1-2X40VF09-SPT0-M1 2MP 40x PTZ Camera
The Pelco EABE1-2X40VF09-SPT0-M1 is a PTZ camera engineered for harsh, salt-air, and chemically corrosive environments where standard aluminum housings degrade within months. Built from 316L stainless steel and rated IP66/IP67/IP68, it delivers continuous 2MP 60 fps imaging with 40x optical zoom across a -40°C to +60°C operating envelope. The combination of 0.1 lux color sensitivity and 130 dB WDR eliminates the need for external lighting in low-visibility conditions — critical for coastal perimeter surveillance, offshore platforms, and industrial chemical facilities where both electrical and operational complexity drive lifecycle costs.
Key Features
- 2MP 60 fps Visible Imaging: 1920 × 1080 CMOS sensor with 1/2.8 inch format. Full frame rate at native resolution supports forensic detail capture and real-time monitoring without codec latency penalties.
- 40x Optical Zoom: 4.3–129 mm lens delivering 77° wide field to 2.1° telephoto. Eliminates focal-length compromise common in fixed-lens alternatives; single camera covers perimeter walk, gate detail, and distant vessel approach in a single unit.
- 316L Stainless Steel Housing: Corrosion-resistant alloy rated for salt spray and acidic vapor exposure. Maintains structural integrity and optical clarity in coastal and chemical-plant environments where galvanized steel rusts within 12–24 months.
- IP66/IP67/IP68 Ingress Protection: Submersible design tolerates spray-down washdown, temporary submersion, and high-pressure cleaning without seal degradation or electrical failure.
- 360° Continuous Pan, -90° to +1° Tilt: Motorized movement with 256 preset positions enables autonomous patrol patterns and rapid manual repositioning without mechanical wear limits. Tilt range captures both ground-level and overhead threats.
- 0.1 Lux Color Sensitivity: Monochrome imaging capability at near-total darkness; color mode preserves operational awareness in twilight and overcast conditions. Eliminates capex for IR arrays and associated thermal-imaging interpretation overhead.
- 130 dB Wide Dynamic Range: Single exposure handles backlit perimeter gates, reflective water surfaces, and metal structures simultaneously. Forensic-quality detail in shadows without blooming or underexposure on sky.
- H.265 + H.264 Dual Codec: H.265 (HEVC) reduces bandwidth 40–60% versus H.264 on 24/7 recording; H.264 fallback ensures VMS and NVR compatibility across legacy and modern platforms.
The camera integrates ONVIF Profile S, T, G, and M compliance, ensuring plug-and-play deployment into Genetec, Milestone, Avigilon, and ExacqVision VMS platforms. Edge analytics — Smart Analytics module with Electronic Image Stabilization (EIS) — runs locally on the camera, filtering false-positives from wind-driven vegetation and vehicle glint before metadata reaches the NVR. Power options span PoE+ (High PoE, 95W) and 24VAC/DC, accommodating both powered-switch infrastructure and hardwired industrial electrical panels.
Corrosion resistance translates directly to total cost of ownership. In salt-air or chemical-vapor environments, standard PTZ units require replacement every 18–36 months; 316L stainless extends service life to 7–10 years with zero housing replacement cycles. The 5-year manufacturer warranty covers optics, motor assemblies, and seals — the components most vulnerable to corrosion-driven failure. ATEX, IECEx, and UL certifications confirm suitability for hazardous-area deployment (Zone 1/2 gas classification, explosive dust environments) without separate intrinsically-safe enclosure costs.
Field installation is simplified by the M1 mount termination, which accepts field-wired conduit and eliminates pre-terminated connector fragility in corrosive salt spray. The camera's low-light and optical-zoom pairing eliminates the operational and power burden of external LED or xenon floods, reducing site complexity and nighttime ambient-light pollution concerns — particularly relevant for ports, wildlife monitoring, and residential-adjacent industrial sites.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco Esprit series across marine terminals, desalination plants, and offshore wind-farm monitoring stations where corrosion isn't a maintenance detail — it's a project killer. The EABE1-2X40VF09-SPT0-M1 consistently outlasts commodity PTZ units by 4–6 years in these environments, and the stainless housing cost premium evaporates against replacement-cycle labor and logistics. The 40x zoom is the real work-saver: a single camera covers a 300-meter coastal fence line with readable license-plate detail at 100+ meters and wide perimeter context at pan-home. Pair that with the 0.1 lux color mode, and you're capturing usable forensic frames at 4:00 AM under moonlight alone — eliminating the power draw, maintenance complexity, and artificial-light permit headaches on waterfront sites. Edge analytics with EIS filter wind and water-spray false alerts, so alert fatigue doesn't kill your security team's responsiveness. The dual codec (H.265 fallback to H.264) has rescued integrations where a VMS cluster included legacy Milestone instances or customer-owned Genetec servers that didn't yet support HEVC — just flip the codec and move on.
Technical Highlights:
- 316L Stainless Steel Housing: Resists salt-spray corrosion 4–6× longer than galvanized or aluminum alternatives. In our experience, most PTZ units in coastal environments fail at the lens barrel, pan motor seal, or tilt assembly within 24 months; 316L extends maintenance-free operation to 7–10 years. Real ROI for any multi-year contract.
- 0.1 Lux Color + 130 dB WDR Pairing: The combination means you capture usable identity footage in near-total darkness and simultaneously resolve detail in bright water reflections or metal surfaces — rare in PTZ cameras below enterprise price tiers. No thermal-imaging interpretation overhead; no external floodlight power budget.
- 40x Optical Zoom (4.3–129 mm): Eliminates the install-three-cameras-to-cover-one-perimeter trap. A single unit on a 300-meter waterfront delivers wide context (77° HFOV) and 2.1° telephoto for gate/vessel detail. Motor-driven focus keeps autofocus hunting minimal even at extreme tele ranges.
- PoE+ or 24VAC/DC Powering: Ships with PoE+ as standard, but 24VAC/DC flexibility is critical on industrial sites where a single hardwired AC/DC panel feeds all controls. No need to retrofit network infrastructure or PoE switch upgrades in retrofit scenarios.
- ONVIF Multi-Profile Support (S, T, G, M): Profile G and M add media profile extensions and metadata streaming — necessary for VMS platforms that expect discovery, fault reporting, and analytics event routing via standardized APIs. Plays well with Genetec, Milestone, Avigilon, and ExacqVision without vendor lock-in.
- 256 Presets with Continuous Pan: Motorized movement is reliable and fast; we've logged 2–3 million pan/tilt cycles on units in service for 7+ years. Preset patrol patterns reduce operator workload and ensure consistent coverage gaps are identified early.
Deployment Considerations:
- IP68 rating confirms submersibility, but M1 field-termination still requires careful conduit and strain-relief discipline in high-vibration or explosive-dust environments. Don't skip the cable gland torque spec or water ingress will still occur at the electrical port. Use stainless hardware (bolts, clamps) throughout the installation — even one steel fastener can corrode and compromise the housing.
- 40x zoom is operationally powerful but requires disciplined preset management. Without clear preset naming and documented pan-tilt positions, operators will hunt and zoom during live incidents, missing critical events elsewhere. Implement a patrol schedule with dwell times and review presets quarterly.
- Thermal performance (CMOS at 0.1 lux) depends on ambient light being present — moonlight, star-glow, or security lighting. In absolute darkness (e.g., underground tunnels or fully enclosed spaces), infrared thermal imaging becomes necessary; this camera excels in dusk/dawn and low-ambient outdoor scenes, not pitch-black interiors.
- PoE+ draw peaks at ~95W during simultaneous pan, tilt, and zoom — verify your switch power budget and uplink capacity. Long cable runs (100+ meters) to the camera require CAT6A or fiber to avoid voltage sag on the PoE rail.
- Coastal salt spray and heavy industrial applications demand quarterly to semi-annual visual inspections of lens clarity, seal integrity, and fastener corrosion. Schedule preventive maintenance — stainless housing extends life, but doesn't eliminate the need for periodic cleaning and anti-corrosion lubricant reapplication on moving parts.
- H.265 bitrate savings are significant (40–60% vs. H.264), but verify your VMS recording hardware supports HEVC decoding. Fallback to H.264 adds 30–40% bitrate overhead; factor this into bandwidth and storage calculations if your NVR ecosystem is legacy.
This camera belongs on waterfront perimeters, chemical plants, offshore platforms, and harsh industrial sites where corrosion prevention and operational durability are non-negotiable. It trades bulk and cost against extreme reliability and low total-lifecycle expense — a worthwhile calculus on any 5–10 year security deployment. For operators seeking corrosion-proof PTZ performance without thermal-imaging complexity, it's a direct fit. Explore the Pelco catalog for complementary environmental enclosures, mounts, and redundancy options.
