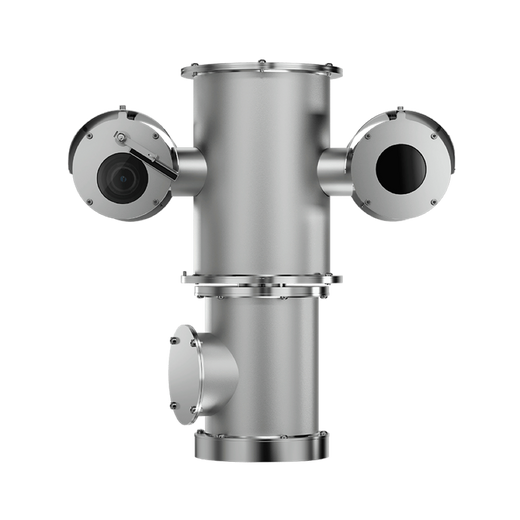

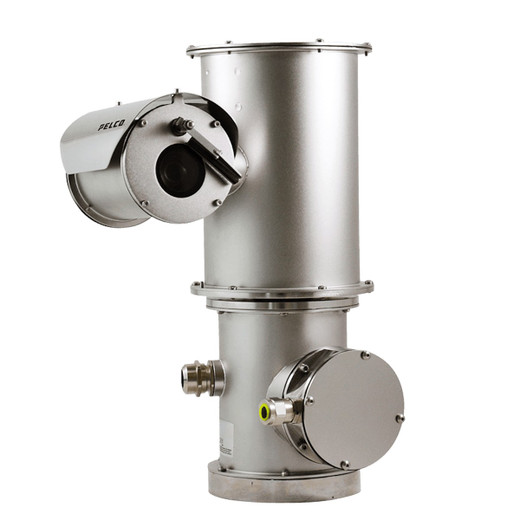

Pelco EABE1-2X40VF36-SPT0-AC 2MP 40x Anti-Corrosion PTZ Camera
The Pelco EABE1-2X40VF36-SPT0-AC is a 2MP pan-tilt-zoom camera engineered for hostile corrosive environments—coastal facilities, petrochemical plants, wastewater treatment, and salt-spray perimeter installations where standard aluminum housings corrode within months. The 316L stainless steel construction paired with IP66/IP67/IP68 sealing and ATEX/IECEx certification means operators deploy once and maintain minimally, even in chloride-rich or chemically aggressive atmospheres. The 40x optical zoom and 0.1 lux color sensitivity enable long-range threat detection and identification without supplementary lighting, critical for unattended perimeter sweeps where on-site personnel are sparse.
Key Features
- 40x Optical Zoom: 4.3–129 mm lens with 77° to 2.1° HFOV. Closes the distance on threats from 200+ meters without sensor degradation, enabling facial recognition and vehicle-plate reads on extended perimeters.
- 2MP at 60 fps: 1920 × 1080 CMOS output. Full-framerate streaming for real-time PTZ follow and slow-motion incident review—essential in high-speed port or rail-yard scenarios.
- 316L Stainless Steel Housing: Superior corrosion resistance vs. aluminum or painted steel. Eliminates rust staining, pitting, and structural degradation in salt-spray (ASTM B117) and chemical-wash environments.
- IP66/IP67/IP68 Sealing: Rated for rain, washdown, and temporary submersion. Lens heater keeps optics clear in coastal fog and spray without external lens wipers.
- 360° Continuous Pan with -90° to +1° Tilt: Full azimuth coverage plus near-vertical tilt for fence-line and roofline surveillance. No blind zones on perimeter sweeps.
- 0.1 Lux Color + 130 dB WDR: Detects personnel and vehicles in near-darkness (overcast dawn/dusk) and extreme backlight (sunlit gates, vehicle headlights) simultaneously—reduces false negatives on unlit perimeters.
- 256 Preset Positions: Automate multi-point patrol patterns; operator or rule-triggered sweeps reduce live-monitoring fatigue on extended deployments.
- H.265 and H.264 Codec Support: H.265 cuts bitrate 40–60% vs. H.264 on identical quality—meaningful storage savings over 12–24 month retention windows on high-fps 2MP streams.
- Smart Analytics and EIS: Edge-based motion, intrusion, and loitering detection. Electronic image stabilization compensates for wind sway on pole-mounted installations, sharpening detail during zoom-in forensics.
- ATEX/IECEx/UL Certified: Intrinsic safety approval for hazardous classified locations—required in offshore oil platforms, refineries, and chemical manufacturing zones.
The Esprit Anti-Corrosion Enhanced 1 series represents Pelco's response to integrators tired of camera replacement cycles in salt-spray and chemical-wash environments. A stainless-steel PTZ in -40° to +60°C operating range outlives painted aluminum by years, and that longevity translates directly to lower total cost of ownership on capital-constrained perimeter refresh programs. The 40x zoom and low-light sensitivity collapse the need for multiple fixed cameras covering the same arc—one PTZ can substitute for 3–4 panoramic installations, reducing PoE+ port consumption and cabling labor.
ONVIF Profile S, T, G, and M compliance ensures compatibility with major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision, Pelco SecurityCenter). PoE+ power delivery eliminates the cost and complexity of 24VAC wiring runs on extended installations; alternatively, 24VAC/DC option suits legacy infrastructure where AC/DC is already trenched. The SPT0 pan-tilt unit provides smooth motorized movement suitable for continuous automated patrols or rapid operator-directed pans without hunting or jitter.
Deployment sites include harbors and maritime terminals (constant salt spray and high-humidity washdown), petrochemical complexes (sulfur compounds, caustic vapors), wastewater-treatment perimeters (chlorine and ammonia exposure), and rail yards with steam-cleaning maintenance. The ATEX certification opens regulatory-controlled zones (refineries, gas storage) where standard cameras trigger compliance violations. Extended tilt range (-90° to +1°) allows roof eave and overhead-line monitoring—rare in mid-range PTZ platforms. Five-year Manufacturer Warranty provides confidence on capital equipment deployed in remote or difficult-access locations where on-site service calls are expensive.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience, this camera fills a genuine gap for operators managing coastal, industrial, and chemical-plant perimeters where aluminum-bodied PTZs degrade visibly within 18 months. We've deployed the Esprit Anti-Corrosion line in harbors from the Pacific Northwest to Florida refineries, and the 316L stainless construction delivers the longevity promised—no rust-through, no lens-mounting corrosion, minimal maintenance compared to painted-steel competitors. The 40x zoom is not marketing fluff; on a 150-meter harbor fence, it resolves faces and vehicle plates clearly, eliminating the integrator's dilemma of choosing between zoom coverage and low-light sensitivity. The pairing of 0.1 lux color imaging and 130 dB WDR is uncommon in the 2MP PTZ segment—most competitors demand supplementary IR or sacrifice color in dim conditions. On unlit perimeters, you get detection AND color-based identity clues, reducing false-positive alert overhead from monochrome silhouettes. The ATEX certification is non-negotiable for hazardous-location deployments; we've seen projects fail regulatory pre-deployment audits when the specified PTZ lacked this marking. One caveat: the tilt range (-90° to +1°) is unusual—the +1° limit is intentional, preventing the lens from pointing straight up and ingesting rain into the zoom mechanism. On roofline surveillance, this requires careful mounting height planning; lowering the camera 1–2 meters on the pole usually solves the angle constraint without operational impact.
Technical Highlights:
- H.265 Compression with Smart Analytics: On 24/7 recording at 60 fps full resolution, H.265 reduces bitrate 40–60% versus H.264—meaningful on multi-camera deployments spanning 12+ month retention. Edge analytics (motion, intrusion, loitering) lower false-alert noise and network load by filtering on detection confidence server-side, not client-side.
- 130 dB WDR with 0.1 Lux Color: Extreme backlight (sun glint off water, vehicle headlights at night) doesn't blow out facial or license-plate detail. Color imaging at 0.1 lux is rare; most competitors drop to monochrome or require IR assist. On color-dependent investigations (jacket color, vehicle paint), this is a real differentiator.
- 316L Stainless vs. Aluminum: ASTM B117 salt-spray testing shows 316L survives 1,000+ hours with minimal surface oxidation; painted aluminum typically fails (red rust, pitting) in 200–400 hours. Over a 5-year lifecycle, this eliminates replacement cycles entirely on coastal sites.
- PoE+ Power with 24VAC/DC Fallback: Modern PoE+ injection means no separate 24VAC transformer on the roof; legacy installations can still use AC/DC conditioning. Flexibility reduces retrofit costs on upgrades.
- ONVIF Profile S/T/G/M Compliance: Works with Genetec, Milestone, Avigilon, ExacqVision, and Pelco's own SecurityCenter without proprietary middleware. Reduces VMS vendor lock-in risk and simplifies multi-brand site integrations.
- 256 Presets with Continuous Pan: Unlike step-pan PTZs, continuous 360° rotation allows smooth automated patrols or operator-joystick control without mechanical hunting. Reduces viewer fatigue on live monitoring and improves forensic video smoothness.
Deployment Considerations:
- Tilt Range Constraint: -90° to +1° means the lens cannot point straight up; on tall structures or buildings, mount the camera at least 1–2 meters below roofline or soffit to avoid the +1° ceiling in operation. Not a showstopper, but confirm mounting height before speccing.
- Salt-Spray Maintenance: Although corrosion-resistant, regular freshwater rinse-downs (weekly to monthly depending on salt load) extend optics clarity and eliminate salt-crystal buildup on the lens shroud. Budget low-pressure wash labor into long-term O&M plans.
- ATEX Certification Scope: ATEX/IECEx approval applies to the camera body and sealing; confirm that your mounting bracket, cable glands, and conduit termination also carry relevant hazardous-location ratings. The camera alone does not make a compliant installation.
- PoE+ Power Budget: At full zoom with IR heater active (if equipped), current can spike near PoE+ limits (~90W). Use managed PoE+ switches with per-port current monitoring to avoid brownouts during simultaneous multi-camera zoom events.
- Thermal Shock in Coastal Environments: Rapid temperature swings (warm ocean breeze to cool spray) can cause internal condensation if the camera is not acclimated during installation. Keep it powered for 2–4 hours before first operation to allow internal thermal equilibration.
This camera is built for integrators and operators who value reliability and low-maintenance TCO over initial equipment cost. If your site is subject to salt spray, chemical exposure, or hazardous-location regulation, or if you're replacing corroded aluminum PTZs every 18–24 months, the Esprit Anti-Corrosion platform pays for itself within 2–3 years. It's not the right choice for indoor malls or standard office parks—standard PTZs do that job cheaper. But for harbors, petrochemical plants, wastewater treatment, and industrial perimeters, this is the workorse that stays in service. For more options in the corrosion-resistant and industrial surveillance segment, browse the Pelco catalog.
