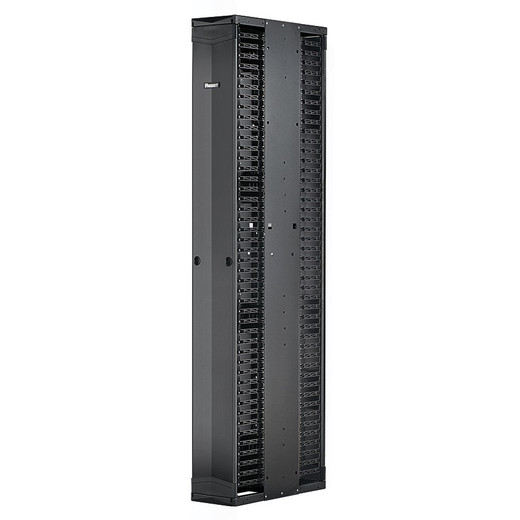

Panduit PE2VSD0896 52U Dual-Access Vertical Cable Manager
Overview
The Panduit PE2VSD0896 is an enhanced PatchRunner™ 2 vertical cable manager built for high-density data center and enterprise rack environments where cable organization directly affects airflow, serviceability, and long-term maintenance cost. At 8 inches wide and 95.9 inches tall (spanning 52U plus 9 additional vertical units), this dual-sided manager handles the full height of a standard 52U EIA rack — 48 cm or 58 cm width — without sacrificing a single rack unit to the cable plant. The zero-U patching feature is the key differentiator: every inch of structured vertical capacity stays usable for active equipment rather than being surrendered to cable management overhead.
Explore the full Panduit catalog for complementary rack infrastructure, or browse vertical cable managers to compare form factors before specifying.
Key Features
- Zero-U Vertical Patching: The PE2VSD0896 mounts externally to the rack column, meaning it adds no U-height penalty inside the rack. In a fully populated 52U cabinet, that distinction is worth 2–4U of reclaimed equipment space compared to managers that consume rack units directly.
- 95.9-Inch Full-Height Capacity: At just over 95 inches tall, the manager covers the entire usable height of a 52U rack plus 9 supplemental vertical units — eliminating the mid-rack cable breaks and sharp bends that plague partial-height managers in dense patching runs.
- 8-Inch Width for High-Density Runs: The 8-inch (203.2 mm) channel width accommodates high-volume fiber and copper bundles common in top-of-rack switching and structured cabling backbones. Narrower managers (typically 4–6 inches) create compression risk on large bundles; at 8 inches, bend radius compliance is maintained even at full capacity.
- Dual-Sided Access with Full-Length Metal Door: Both front and rear access points let technicians route and retrieve cables without disturbing adjacent runs. The double-hinged, full-length metal door with slam latch secures cable bundles during normal operation while opening fully for maintenance — useful in colocations and enterprise data centers where cable pulls happen live.
- Metal Frame + Molded Plastic Fingers: The hybrid construction gives you the structural rigidity of a metal chassis (critical for supporting heavy fiber bundles over 95 inches of vertical run) with molded plastic routing fingers that won't abrade cable jackets on repeated service calls.
- Partial Pre-Assembly: Ships partially assembled, reducing on-site installation time compared to fully knock-down designs. In a rack deployment with multiple managers, that time savings compounds — meaningful when commissioning a full row of cabinets under a tight cutover window.
- UL 2416 and CSA C22.2 Listed: These listings satisfy the cable management code requirements common in commercial building and data center projects. If your project requires listed cable management for permit or insurance purposes, the PE2VSD0896 meets that bar without requiring a waiver or equivalency argument.
- RoHS Compliant: For enterprise buyers with WEEE or EU environmental compliance requirements, RoHS compliance eliminates a line-item documentation request during procurement.
- Compatible with 48 cm and 58 cm EIA Racks: The manager is designed for use with standard 48 cm (19-inch) and 58 cm EIA racks, covering the two most common rack footprints in enterprise and colocation environments. Verify your rack column profile before ordering — some proprietary rail systems require additional adapter hardware.
Integration & Compatibility
The PE2VSD0896 is designed for standard EIA 48 cm and 58 cm racks and integrates directly into PatchRunner 2 infrastructure deployments. For structured cabling projects, pair it with horizontal cable managers and patch panels from the same family to maintain consistent cable radius and airflow across the rack row. In network cabinet builds where power distribution and active switching share vertical space, the 8-inch wide channel provides enough capacity to segregate copper patch runs from fiber trunks in a single manager — reducing the need for a second manager column on the opposite rack rail.
For complete rack builds, consider pairing with a compatible rack enclosure and horizontal cable management panels to complete the cable plant.
Frequently Asked Questions
Q: What rack sizes is the PE2VSD0896 compatible with?
A: The PE2VSD0896 is designed for use with standard EIA 48 cm (19-inch) and 58 cm racks at 52U height. Verify your rack column profile for mounting compatibility before ordering.
Q: Does the PE2VSD0896 consume rack unit space inside the cabinet?
A: No. The zero-U patching design mounts externally to the rack column, preserving all 52U of internal rack space for active equipment.
Q: What is the overall height of the PE2VSD0896?
A: The manager stands 95.9 inches (2,435.9 mm) tall, covering 52U plus 9 additional vertical units — full height on a standard 52U rack.
Q: Is the PE2VSD0896 RoHS compliant?
A: Yes. The PE2VSD0896 meets RoHS compliance requirements, along with UL 2416 and CSA C22.2 listings.
Q: How wide is the cable channel on the PE2VSD0896?
A: The cable channel is 8 inches (203.2 mm) wide, suited for high-density fiber and copper bundle runs where bend radius compliance is critical.
Q: Does the PE2VSD0896 come pre-assembled?
A: It ships partially assembled to simplify on-site installation and speed up rack deployment.
The PE2VSD0896 is one of those infrastructure pieces that pays dividends every time a technician touches the rack rather than on day one. That 8-inch wide dual-sided channel — 203.2 mm of real estate — is what separates a manageable cable plant from one that becomes a liability at 3 AM during a switch failure. I specify this manager on any 52U build where the active equipment density is high enough that a 4-inch manager would be a bottleneck within 18 months.
Technical Highlights:
- Zero-U External Mount: The rack never loses an equipment slot to the cable plant — at 52U full population, that recovers 2–4U that partial-internal designs consume. Worth specifying on any dense compute or switching row.
- 95.9-Inch Full-Span Height: Running a single continuous manager from floor to top of the rack eliminates the mid-run transitions where bend radius violations and cable damage actually happen in practice.
- UL 2416 / CSA C22.2 Listed: Both listings are on the label, which matters the moment an AHJ or insurance underwriter asks for documentation. You won't be filing a field equivalency letter on a job site.
Deployment Considerations:
- Confirm your rack column profile accepts the PatchRunner 2 mounting hardware before the equipment ships — EIA 48 cm and 58 cm are supported, but some proprietary four-post rail systems require adapter brackets not included with the PE2VSD0896.
- At nearly 96 inches tall and a metal-frame construction, this manager has meaningful weight. Factor in two-person installation for the mounting phase, especially in overhead or raised-floor environments where the top of the manager approaches ceiling cable trays.
This manager belongs on high-density structured cabling deployments in enterprise data centers and colocation facilities where the cable plant will be serviced repeatedly over a multi-year lifecycle — not a single-install-and-forget wiring closet. The dual-sided access and full-length latch door are what justify the specification at this price point.
