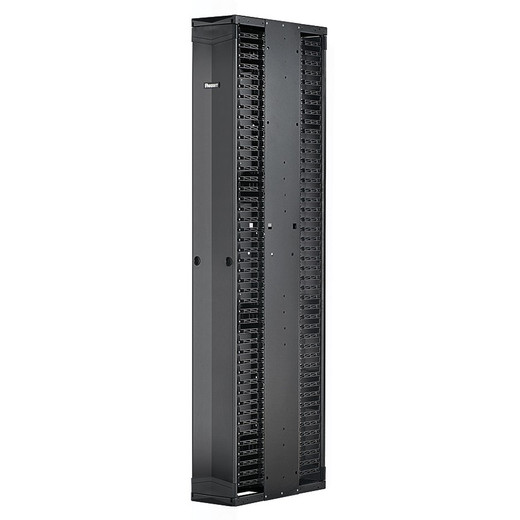

Panduit PE2VSD06 Dual-Sided Vertical Cable Manager, 45U, 6-Inch Wide
Overview
The Panduit PE2VSD06 is a 45U, 6-inch-wide dual-sided vertical cable manager from the PatchRunner™ 2 Enhanced line — built for high-density data center and enterprise rack environments where cable organization directly affects airflow, access time, and uptime. At 83.9 inches tall (2,131 mm), it spans a full 45U rack with an additional 6U of vertical cable routing capacity beyond the standard rack height, giving you dedicated vertical pathway for structured cabling without burning a single U of equipment space. If your current rack rows look like a spaghetti bowl between patch panels and switches, this is the unit to evaluate first among Panduit cable management solutions.
The PE2VSD06 ships partially pre-assembled, which matters in practice: field installation into a 19-inch EIA-compliant 48cm or 58cm rack takes significantly less time than a fully knock-down unit. The dual-sided design means cables enter and exit from both the front and rear faces — critical when you're managing patch cords on the front and horizontal cable runs or power on the rear simultaneously.
Key Features
- 45U + 6U Extended Routing Height (83.9 in / 2,131 mm): The 6U of additional vertical run space above the standard rack height means patch cords and trunk cables have a dedicated exit path without bending sharply at the top of the rack. In dense deployments, eliminating that bend radius violation alone reduces cable stress and re-termination events over time.
- 6-Inch (152.4 mm) Channel Width: Wider than the common 4-inch standard, the 6-inch channel accommodates high-density fiber and copper bundle counts without exceeding fill ratios. Plan for this width when specifying adjacent rack real estate — it sits between racks, so column spacing matters.
- Dual-Sided Access (Front + Rear): Both faces of the unit are usable routing pathways, meaning a single PE2VSD06 serves both the patch panel face and the switch rear in one footprint. This cuts the number of vertical managers needed per rack row in half compared to single-sided units.
- Full-Length Metal Door with Dual-Hinge and Latch: The solid metal door provides physical cable protection and a clean visual finish for customer-facing or audit environments. Dual hinges mean the door swings without flex even on a fully populated manager; the push-to-close latch keeps it shut without tools.
- Metal Frame with Molded Plastic Routing Fingers: The structural metal frame handles the mechanical load of a fully populated cable bundle while the molded plastic fingers on each routing slot protect cable jacket from abrasion. This combination is more durable under repeated MAC (moves, adds, changes) than all-plastic designs.
- Zero-U Patch Panel Compatibility: The PatchRunner 2 Enhanced design supports zero-U patching — patch panel ports mount directly in the vertical manager's frame without consuming rack unit space. In high-density rows where every U counts, this can recover 2–4U of usable equipment space per rack.
- Partial Pre-Assembly: Factory partial assembly reduces on-site installation labor. In a data center build-out with 20+ racks, the time savings compound quickly — estimate 10–15 minutes saved per unit versus fully knocked-down competitors.
- RoHS Compliant: Meets the EU Restriction of Hazardous Substances directive — required for deployments in EMEA-regulated facilities and increasingly specified in North American enterprise procurement standards.
- Black Finish: The standard black colorway matches EIA-standard rack equipment and enclosures universally, avoiding the finish mismatch common with grey or beige legacy equipment in mixed-refresh environments.
Integration & Compatibility
The PE2VSD06 is designed for EIA-standard 48cm (19-inch) and 58cm rack formats at 45U height. Verify your cabinet's internal depth and inter-rack column spacing before ordering — the 6-inch width requires adequate clearance in the vertical channel between adjacent racks or between a rack and a wall. The unit works alongside standard open-frame and enclosed rack cabinets from major manufacturers that conform to EIA-310 mounting standards.
For structured cabling deployments, pair this manager with horizontal cable managers at each patch panel U to complete the cable pathway system. In surveillance and security infrastructure environments — where camera runs, NVR connections, and PoE switch cabling all converge in the same IDF or MDF — a well-specified vertical manager like the PE2VSD06 keeps fiber trunks separated from copper patch cords and power, reducing the risk of cross-talk and simplifying troubleshooting. For guidance on rack infrastructure planning in networked security systems, see the network infrastructure planning guide.
For completeness in your rack build, consider specifying Panduit horizontal cable managers and patch panels from the same product family to maintain a consistent routing system throughout the installation.
Frequently Asked Questions
Q: What rack size does the Panduit PE2VSD06 fit?
A: The PE2VSD06 is designed for EIA-standard 48cm and 58cm (19-inch) racks at 45U height. It measures 83.9 inches (2,131 mm) tall overall, which includes 6U of additional routing height beyond the standard 45U rack space.
Q: Is the PE2VSD06 single-sided or dual-sided?
A: It is dual-sided — cables can be routed on both the front and rear faces of the manager simultaneously. This makes it suitable for managing both patch cord runs and rear cable exits from a single unit.
Q: Does the PE2VSD06 come with a door?
A: Yes. The unit includes a full-length solid metal door with a dual-hinge design and a push-to-close latch. The door provides physical cable protection and a clean finished appearance.
Q: Is the PE2VSD06 RoHS compliant?
A: Yes. The PE2VSD06 meets RoHS (Restriction of Hazardous Substances) compliance standards, making it suitable for EMEA-regulated facilities and enterprises with green procurement requirements.
Q: How wide is the cable channel on the PE2VSD06?
A: The PE2VSD06 has a 6-inch (152.4 mm) channel width — wider than the common 4-inch standard. This accommodates higher cable fill counts, particularly useful in high-density fiber and copper mixed environments.
Q: Does the PE2VSD06 support zero-U patch panel mounting?
A: Yes. The PatchRunner™ 2 Enhanced design supports zero-U patching, allowing patch panel ports to mount within the vertical manager frame itself without consuming rack unit space in the adjacent cabinet.
The PE2VSD06 earns its place in high-density IDF and MDF builds specifically because of that 6-inch channel width paired with the 45U + 6U extended height — in practice, that extra 6U of routing clearance above the standard rack space is the detail most integrators overlook until they're standing in front of a finished rack trying to figure out where the fiber trunk goes at the top. I've seen that detail alone drive a re-specification mid-project.
Technical Highlights:
- 83.9-Inch Total Height (2,131 mm): The additional 6U vertical run above the standard 45U footprint gives fiber trunks and power runs a clean exit path — no 90-degree bends at the top rail that violate minimum bend radius on Cat6A or OM4 fiber.
- 6-Inch Dual-Sided Channel: At 152.4 mm wide on both front and rear faces, this handles the cable fill of a fully patched 48-port panel on the front plus rear switch runs simultaneously — without needing two separate single-sided managers per rack bay.
- Zero-U Patch Panel Integration: PatchRunner 2 Enhanced zero-U mounting recovers 2–4U of equipment space per rack in dense deployments — that's the difference between fitting one more 1U switch or running out of rack space before the project scope closes.
Deployment Considerations:
- Confirm inter-rack column spacing before ordering — at 6 inches wide, the PE2VSD06 requires adequate clearance in the vertical channel between adjacent open-frame racks or between a rack and a wall-mounted trough. Tight rows designed for 4-inch managers will not fit this unit without re-spacing.
- The unit ships partially pre-assembled but not fully — budget installation time accordingly and verify that your rack's EIA-310 rail spacing matches the 48cm or 58cm supported formats before the unit arrives on-site.
This unit is the right specification for new-build or major refresh projects in enterprise MDFs, security operations center (SOC) infrastructure rooms, and data center IDF rows where a full 45U rack is being deployed with high-density copper and fiber patch fields — not a retrofit pick for a partially populated 12U wall enclosure.
