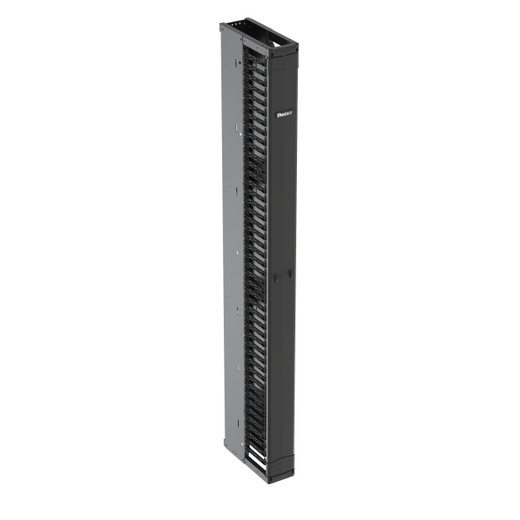

Panduit PE2VFD06 Single-Sided Vertical Cable Manager, 45U, 6-Inch Wide

Overview

The Panduit PE2VFD06 is a 45U single-sided vertical cable manager from the enhanced PatchRunner™ 2 line, purpose-built for high-density data center racks and network enclosures where cable control directly impacts airflow, serviceability, and long-term uptime. At 6 inches wide and 83.9 inches tall (2,131 mm), the PE2VFD06 mounts in the vertical channel beside your patch panels and switches to capture and route patch cords cleanly from top to bottom of the rack — eliminating the cable spaghetti that makes moves-adds-changes a painful, time-consuming exercise.

The PatchRunner™ 2 enhanced series targets environments with very high cable densities — think colocation rows, enterprise core switching stacks, or carrier-class distribution frames — where a standard 4-inch manager simply runs out of capacity before you finish the first build-out. The zero-U patching characteristic of this product line means you reclaim rack units for active equipment rather than surrendering them to cable management infrastructure.

Key Features

• 45U Cable Routing Capacity with 6U Extra Vertical Headroom: The PE2VFD06 spans 45U of rack height with an additional 6U of vertical slack — a total of 51U of usable routing space. In a fully populated 42U rack, that overhead prevents patch cords from being pulled taut across the top, which is the most common cause of cable strain and accidental disconnects during adjacent equipment swaps.
• 6-Inch Wide Channel: At 6 inches (152.4 mm), this manager handles significantly more cables per vertical run than a standard 4-inch product. For ToR switching deployments with 48-port leaf switches and full patch-panel front termination, this capacity means you can keep both sets of cables — uplinks and access ports — in the same vertical run without bunching or blocking airflow.
• Full-Length Double-Hinged Metal Door with Snap Closure: The door opens cleanly and stays out of your way during adds and changes, then snaps shut to contain cables and maintain airflow separation. Metal construction means it doesn't flex or warp over repeated openings the way plastic doors do in busy NOC environments. Double-hinge geometry prevents the door from binding mid-swing in tight inter-rack clearances.
• Molded Plastic Fingers on Metal Frame: The structural metal frame handles the mechanical load of a full cable run; molded plastic fingers protect cable jackets from abrasion and sharp edges during installation and over years of thermal cycling. This combination is the right call in environments where cables are moved regularly — metal alone would eventually damage jacket insulation.
• Partially Pre-Assembled for Fast Deployment: The PE2VFD06 ships partially assembled, which reduces on-site labor during rack builds. For integrators commissioning multiple cabinets in sequence, this matters — every minute saved per unit adds up across a row of 20 racks.
• RoHS Compliant: Meets RoHS requirements, which matters for enterprise customers operating under EU WEEE/RoHS procurement mandates or US federal contractors with environmental compliance requirements. This won't block a purchase order that requires RoHS documentation.
• Zero-U Patching Geometry: The PatchRunner™ 2 design occupies zero rack units for the cable management function itself. Every U in your rack stays available for switches, patch panels, and other active or passive equipment — a real constraint in high-density builds where rack space is sold or allocated by the U.
• Single Package Quantity: Sold individually (package quantity: 1), so you can buy exactly the number of vertical managers your layout requires without overstocking.

Integration and Compatibility

The PE2VFD06 is designed for standard EIA 19-inch rack and cabinet installations. Its 45U height aligns with industry-standard 45U and 48U open-frame racks and enclosed cabinets from major manufacturers. The competitor cross-reference VM618 is noted in Panduit's product data, useful when specifying replacements or alternates in procurement.

For network cabinets and rack enclosures, this manager pairs naturally with high-density patch panels and structured cabling systems where vertical cable routing is a first-class design requirement. In data center infrastructure deployments, the PatchRunner™ 2 family is a recognized component in Panduit's Panduit structured cabling and physical infrastructure portfolio. If your design also requires horizontal cable management between units, evaluate Panduit's horizontal manager lineup to maintain a consistent cable management system across the rack.

Frequently Asked Questions

Q: How tall is the PE2VFD06, and will it fit a standard 45U cabinet?

A: The PE2VFD06 measures 83.9 inches (2,131.1 mm) in overall height. It is rated for 45U of cable routing capacity with an additional 6U of vertical overhead, making it compatible with standard 45U and 48U EIA cabinets and open-frame racks.

Q: Is the PE2VFD06 single-sided or double-sided?

A: The PE2VFD06 is a single-sided vertical cable manager. It features cable fingers and a full-length hinged door on one face, routing cables on one side of the vertical channel.

Q: Does the PE2VFD06 include a door?

A: Yes. It includes a full-length double-hinged metal door with a snap closure. The door swings clear for access during adds and changes and snaps shut to contain cables.

Q: Is the PE2VFD06 RoHS compliant?

A: Yes, the PE2VFD06 meets RoHS compliance requirements as documented in Panduit's product specifications.

Q: What is the width of the PE2VFD06?

A: The PE2VFD06 is 6 inches (152.4 mm) wide, providing higher cable-routing capacity than standard 4-inch vertical managers — suited for high-density patch environments.

Q: What does 'zero-U patching' mean for the PE2VFD06?

A: Zero-U patching means the cable manager mounts in the vertical channel of the rack without consuming any of the rack unit (U) space allocated for equipment. All 45U in the rack remain available for switches, patch panels, and other devices.
