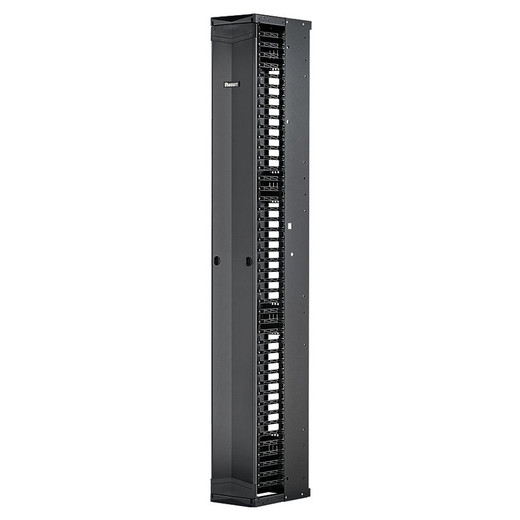

Panduit PE2VFD10 45U Single-Sided Vertical Cable Manager
The Panduit PE2VFD10 is a 45U single-sided vertical cable manager from the enhanced Panduit PatchRunner 2 family, built for high-density data center and telecom rooms where cable routing discipline is non-negotiable. At 10 inches wide and 83.9 inches tall, this unit handles the vertical cable volumes that appear in fully populated 45U racks — without compromising access or forcing a full rack shutdown to re-route a run. It ships partially assembled, which means field installation is measured in minutes, not an afternoon.
Overview
The PE2VFD10 is designed around a zero-U patching concept: every routing capacity unit is usable rack space, not overhead. The metal structure and molded plastic fingers provide physical guidance along the entire 45U height, while the full-length dual-hinged metal door with press-close latch keeps cables contained and protected without tools. Compatible with 480mm and 580mm EIA racks, this manager slots into the most common enterprise rack footprints found in structured cabling and network enclosure installations.
Key Features
- 45U Capacity + 12 Extra Vertical U: The additional 12U of vertical routing space beyond the standard rack height gives you overflow room for service loops and slack management — critical when you are managing high-count fiber or patch cord runs that require bend-radius protection across multiple patch panels.
- 10-Inch Width: At 254mm wide, the PE2VFD10 provides sufficient horizontal depth to handle high-density copper and fiber bundles side by side without compressing cables against the finger wall. Narrower managers force single-layer routing; this width supports layered, organized multi-run installations.
- Full-Length Dual-Hinged Metal Door with Press-Close Latch: The door runs the entire 83.9-inch height, so no section of the cable run is exposed. Dual hinges and a press-close latch mean one-hand operation when you need quick access during moves, adds, and changes — and the door stays put when closed, which matters in environments with positive or negative cabinet pressure.
- Metal Structure with Molded Plastic Fingers: The steel backbone provides the rigidity needed to support heavy cable bundles over 83.9 inches without sagging. Molded plastic fingers protect cable jackets from abrasion while providing consistent bend radius at every routing point — relevant for both Cat6A and OM4/OM5 fiber runs where jacket damage or tight bends translate directly into link failures or test failures.
- Partial Pre-Assembly: Delivered partially assembled so installation is a rack-mount operation, not a build-from-parts project. In live data center environments where time-in-rack equals risk, this matters.
- UL 2416 and CSA C22.2 Listed: These listings confirm the unit meets safety standards for cable management applications — required by many facility management and insurance specifications, and a procurement gate for healthcare and government builds.
- RoHS Compliant: Compliant with Restriction of Hazardous Substances requirements, which is a procurement requirement for EU-destined equipment and increasingly common in US federal and enterprise sustainability specifications.
- EIA 480mm/580mm Rack Compatibility: The PE2VFD10 mounts to both 480mm (19-inch) and 580mm rack widths, covering the two dominant open-frame and enclosed rack form factors used in enterprise structured cabling deployments.
Integration and Compatibility
The PE2VFD10 integrates with standard EIA 48cm and 58cm racks — both the 480mm and 580mm footprints common in enterprise data centers and telecom rooms. It is a single-sided unit, meaning cable access and routing are from one face; pair it with a double-sided variant from the vertical cable managers category if your installation requires routing from both the front and rear of the rack. The zero-U patching design means this manager does not consume any equipment rack units — all 45U remain available for patch panels, switches, and active gear.
For new rack builds, the PE2VFD10 works alongside Panduit's horizontal cable management accessories and patch panels to create a complete structured cabling pathway from the patch panel to the vertical manager to the cabinet interior. See the cable management category for complementary horizontal managers and accessories.
Frequently Asked Questions
Q: What rack sizes is the PE2VFD10 compatible with?
A: The PE2VFD10 is designed for use with 480mm (48cm) and 580mm (58cm) EIA racks, covering the two most common enterprise rack widths in structured cabling environments.
Q: Does the PE2VFD10 consume rack unit space?
A: No. The PatchRunner 2 design uses a zero-U patching concept — the cable manager does not occupy any equipment rack units, so all 45U in the rack remain available for active or passive equipment.
Q: Is the PE2VFD10 single-sided or double-sided?
A: Single-sided. Cable access and routing are from one face of the manager. A double-sided variant should be selected if your installation requires routing from both the front and rear of the rack.
Q: What safety certifications does the PE2VFD10 carry?
A: The PE2VFD10 meets UL 2416, CSA C22.2, and RoHS compliance requirements — covering US, Canadian, and EU procurement standards for cable management products.
Q: Does the PE2VFD10 ship pre-assembled?
A: It ships partially assembled for faster field installation. Final mounting into the rack is a straightforward operation that does not require full build-from-parts assembly on-site.
Q: What is the overall height and width of the PE2VFD10?
A: Overall height is 83.9 inches (2131.1mm). Overall width is 10 inches (254mm). The 45U capacity plus 12 additional vertical U of routing space is included within that height.
The PE2VFD10 is the unit I reach for when a customer is building out a fully loaded 45U rack and doesn't want to give up a single rack unit to cable management. The zero-U design is the deciding spec here — 83.9 inches of managed routing space without touching the equipment density count.
Technical Highlights:
- 10-Inch Width (254mm): Wide enough to layer copper and fiber runs side by side without jacket compression — meaningful when you're managing 48-port Cat6A patch panels and parallel fiber uplinks in the same vertical run.
- Full-Length Dual-Hinged Door: Covers all 83.9 inches continuously, so there's no exposed section mid-run. Press-close latch means one-handed operation during MACs — that adds up over the life of a busy IDF or MDA.
- UL 2416 / CSA C22.2 / RoHS: Three compliance marks on one SKU covers the procurement checklist for most US enterprise, healthcare, and government builds where safety listing is a hard requirement, not a preference.
Deployment Considerations:
- This is a single-sided manager — route cables from one face only. If your rack layout requires rear cable access (common in end-of-row configurations or when rear-mounted switches need their own vertical pathway), specify a double-sided variant from the PatchRunner 2 line instead.
- The 480mm/580mm rack compatibility is broad, but verify your specific rack's mounting hole spacing before ordering. Non-standard or legacy open-frame racks with non-EIA hole patterns may require adapter brackets not included with this unit.
The PE2VFD10 is best suited for primary distribution areas and high-density IDFs where a fully populated 45U rack is the standard build — specifically where zero-U routing, a tamper-resistant door, and listed compliance are all required on the same vertical manager.
