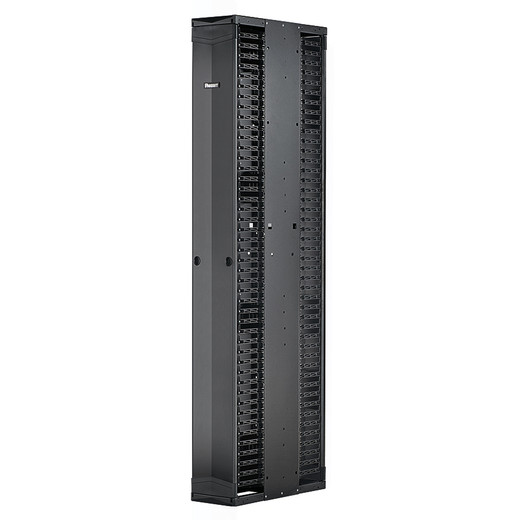

Panduit PE2VSD1096 Dual-Sided Vertical Cable Manager, 52U
Overview
The Panduit PE2VSD1096 is a dual-sided vertical cable manager from the enhanced PatchRunner™ 2 family — a 52U, 10-inch-wide unit engineered for high-density data center and network closet environments where cable organization directly affects uptime and serviceability. It ships partially pre-assembled, so field installation and deployment are faster than fully knocked-down alternatives. If you're running a high-density patch environment in a 48 cm or 58 cm EIA rack and cable sprawl is slowing down moves/adds/changes, this is the product to evaluate.
The PE2VSD1096 delivers 52U of vertical cable routing capacity plus an additional 12U of vertical space — giving installers meaningful headroom beyond the standard rack height for routing tails and service loops without compression.
Key Features
- 52U + 12U Extended Height (95.9 in / 2435.9 mm overall): That extra 12U of vertical routing above the standard rack column means service loops and cable tails have a dedicated home, not a pinch point at the top of the manager. In practice this reduces strain on patch cord connectors and keeps runs tidy when racks are fully populated.
- 10-Inch (254 mm) Channel Width: Wider than standard 4- or 6-inch vertical managers, the 10-inch channel handles high-density Cat6A, fiber trunk cables, and power cords in the same vertical run without forcing cable into a radius-violating bundle. For spine-leaf topologies with large patch cord counts per RU, width matters more than most planners expect.
- Dual-Sided Design with Metal Frame and Molded Plastic Fingers: The metal structural frame resists racking under cable load while the molded plastic routing fingers protect cable jackets and maintain consistent bend radius on both front and rear faces. You get organization on both sides — critical when both the front patch and rear structured cabling need independent, accessible routing lanes.
- Full-Length Hinged Metal Door with Push-to-Close Latch: A double-hinged, full-length door swings clear of the work area for hands-free access during patching — no partial-open door blocking adjacent equipment. The push-latch secures cleanly without tools, which matters during fast-turn MAC work in production environments.
- Zero-U Patching Capability: The PatchRunner 2 architecture supports zero-U patching — meaning patch panels and connectivity can be mounted within the manager column itself, preserving every RU in the adjacent equipment rack. In fully loaded 52U racks where every unit counts, this is the architectural differentiator.
- RoHS, UL 2416, and CSA C22.2 Compliance: RoHS compliance keeps the unit eligible for restricted-substance environments and international projects. UL 2416 and CSA C22.2 are North American safety certifications relevant for data center and enterprise environments where facility managers require listed components — not just a checkbox, but a procurement requirement in many commercial construction specs.
- Compatible with 48 cm / 58 cm EIA Racks, 52U: Designed for standard North American and international EIA rack footprints at both common depths. Verify your rack column depth before ordering — the unit is specified for 48 cm and 58 cm frames, not universal-depth open-frame variants without EIA compliance.
- Partially Pre-Assembled: Ships in a ready-to-mount state, reducing on-site labor and the risk of mis-assembly under deadline. In multi-rack deployments this compounds — a rack that would take 45 minutes to assemble from parts installs in significantly less time.
Integration & Compatibility
The PE2VSD1096 is designed for use with 48 cm and 58 cm wide, 52U EIA-compliant racks and enclosures — the standard form factor in most enterprise data center and network closet deployments. It pairs naturally with Panduit rack systems, patch panels, and structured cabling components, but the EIA rail interface is standard and compatible with third-party frames meeting the same spec.
When planning a rack and enclosure deployment, size your cable manager to match your patch density: a 10-inch channel at 52U accommodates even fully loaded high-density copper or fiber backbone runs. For network cabling accessories and complementary horizontal managers, confirm channel width and door clearance before finalizing your rack layout. Consult a cable management planning guide to align horizontal and vertical manager sizing with your actual patch cord counts per RU.
What's in the Box
- 1x Panduit PE2VSD1096 Dual-Sided Vertical Cable Manager (52U, 10 in wide, partially pre-assembled, black)
Frequently Asked Questions
Q: What rack sizes is the PE2VSD1096 compatible with?
A: The PE2VSD1096 is designed for use with 48 cm (19-inch) and 58 cm EIA-compliant racks at 52U height. Verify your rack's EIA rail spacing before ordering.
Q: How tall is the PE2VSD1096 overall?
A: Overall height is 95.9 inches (2435.9 mm). This includes 52U of managed rack space plus an additional 12U of vertical routing capacity beyond the standard column height.
Q: Does the PE2VSD1096 have a door, and how does it open?
A: Yes. It includes a full-length metal door with a double-hinge design and a push-to-close latch. The double-hinge allows the door to swing fully clear for unobstructed access during patching.
Q: What certifications does the PE2VSD1096 meet?
A: The PE2VSD1096 meets RoHS compliance, UL 2416, and CSA C22.2. These are the applicable safety and environmental standards for North American commercial and enterprise deployments.
Q: What is the channel width of the PE2VSD1096?
A: The channel is 10 inches (254 mm) wide — wider than standard 4- or 6-inch vertical managers, accommodating high-density copper, fiber, and power cable mixes in a single vertical run.
Q: Is the PE2VSD1096 difficult to install?
A: No. It ships partially pre-assembled specifically to reduce on-site labor and speed up deployment in multi-rack rollouts. It mounts to standard EIA rails without specialized tools.
The PE2VSD1096 is one of the few vertical cable managers where the spec sheet actually understates the install-day benefit. That 95.9-inch overall height — 52U rack column plus 12U of bonus vertical — gives you a real service loop zone above the column, not an afterthought. I've seen plenty of 52U deployments where the top 6 inches of the manager becomes a cable knot because there's nowhere for tails to go; this unit solves that structurally.
Technical Highlights:
- 10-Inch Channel Width: At 254 mm, this handles mixed-media runs — Cat6A, OM4 fiber trunks, PDU feeds — without forcing cables into a bend-radius violation. Most vertical managers that look adequate at design review are undersized by the time the rack is fully patched.
- Zero-U Patching Architecture: The PatchRunner 2 platform's zero-U capability means you can mount connectivity inside the manager column and reclaim every RU in the adjacent rack for active equipment. In a 52U rack that's already tight, that's a meaningful density gain.
- UL 2416 / CSA C22.2 Listing: These aren't cosmetic certifications — they're required line items on the submittal package for most commercial construction projects and enterprise data center buildouts. Having them factory-certified means your project closeout isn't held up by a field inspector who can't find the listing mark.
Deployment Considerations:
- Confirm your rack is a 48 cm or 58 cm EIA-rail frame before ordering. The PE2VSD1096 is not a universal-fit unit — open-frame racks with non-standard column spacing won't accept the mounting points correctly.
- At 95.9 inches tall, this unit exceeds the standard 52U rack height. Verify overhead clearance in your row before delivery — raised-floor environments with low overhead busways or cable trays can make installation a two-person job with a ladder.
This unit is the right call for high-density enterprise switch rooms and colocation cage deployments running fully loaded 52U frames with mixed copper and fiber cabling — environments where a 4-inch manager would be full at 30% rack utilization and where facility managers require listed components on the submittal.
