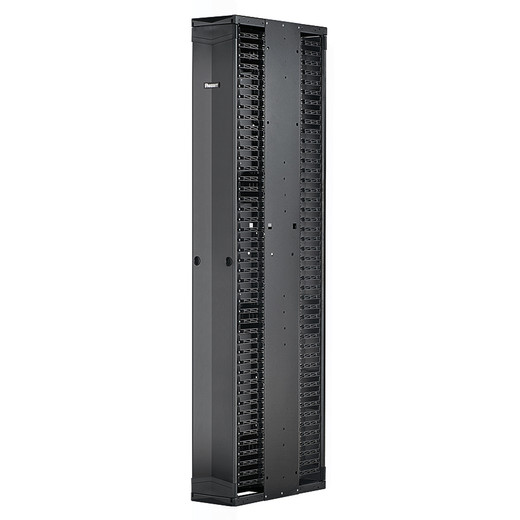

Panduit PE2VSD1296 Dual-Sided Vertical Cable Manager, 52U, 12-Inch Wide

Overview

The Panduit PE2VSD1296 is a dual-sided vertical cable manager from the Panduit PatchRunner 2 line — built for high-density structured cabling environments where cable routing, accessibility, and airflow discipline all matter in the same footprint. At 52U tall and 12 inches wide, with an additional 15U of vertical run capacity above the standard rack height, this unit is purpose-sized for full-height EIA 48cm/58cm two-post and four-post racks. If you're managing high-count fiber or copper patch fields in a vertical cable manager, the PE2VSD1296 addresses the real-world problems: cable congestion at patch panels, difficult mid-run access, and doors that fight you during moves-adds-changes.

The manager ships partially pre-assembled, which cuts rack installation time on a live floor compared to a flat-pack unit. The dual-sided design gives you both front-facing and rear-facing routing channels in a single vertical column — useful when you're sourcing cable from both the front and rear of a high-density patch zone without burning a second vertical slot.

Key Features

• 52U Capacity + 15U Extended Run: The 95.9-inch (2,435.9mm) overall height covers a full 52U rack column and adds an extra 15U of vertical run space above — letting you route cables over the top of the rack without sharp bends that stress fiber or exceed minimum bend radius on high-pair-count copper bundles.
• 12-Inch (304.8mm) Channel Width: Wider than standard 6-inch vertical managers, the 12-inch channel accommodates high-density trunk cable bundles, multi-strand fiber trays, and large-diameter power cords without compressing the cable bundle — compression is the main cause of insertion loss creep in dense horizontal runs.
• Dual-Sided Routing Channels: Front and rear routing access in one unit means you can terminate patch cords on the front face while routing structured cable plant on the rear, keeping the two cable populations physically separated. This is worth real troubleshooting time in a dense IDF or MDA when you're tracing a failing link under load.
• Full-Length Hinged Metal Door with Latch: The double-hinged full-length metal door swings clear of the cable run and snaps closed with a positive-latch mechanism. Metal construction here matters: plastic doors on vertical managers flex and warp over time in warm data halls, eventually not closing cleanly and leaving cable exposed to accidental snagging.
• Metal Frame with Molded Plastic Cable Fingers: The structural frame is steel for rigidity under cable load; the cable retention fingers are molded plastic — a deliberate combination. Metal fingers crack cables under long-term load; plastic fingers cushion while still providing adequate retention for routed cable bundles.
• Partial Pre-Assembly: Unlike field-assembled knockdown units, the PE2VSD1296 arrives partially built, reducing rack installation steps. In a multi-bay rollout, partial pre-assembly translates directly to fewer technician-hours on the ladder per bay.
• RoHS Compliant, UL 2416, CSA C22.2 Listed: UL 2416 covers cable management systems specifically — not a generic electrical listing. CSA C22.2 extends compliance to Canadian installations. RoHS compliance supports procurement programs with hazardous materials restrictions. All three together mean this unit clears typical enterprise and data center procurement gates without a variance request.
• Compatible with EIA 48cm/58cm 52U Racks: Fits the two most common EIA rack depths in North American data center and IDF deployments. If you're standardized on either 48cm or 58cm open-frame or enclosed racks, no adapter brackets are required.

Integration & Compatibility

The PE2VSD1296 integrates with EIA-compliant 48cm and 58cm racks at 52U. It sits alongside the broader Panduit cabinets and racks ecosystem and is engineered to work alongside PatchRunner 2 horizontal managers and patch panels in the same vertical bay. For structured cabling planning in high-density environments, pairing this unit with a complementary horizontal manager above each patch panel row controls both the vertical trunk runs and the horizontal patch cord dressing in a single coordinated system. If your design calls for zero-U patching — running fiber or copper across rack columns without consuming rack unit space — the PatchRunner 2 platform is specifically designed around that workflow.

The black finish (RAL code not specified in evidence) is standard for mixed-vendor rack environments where color uniformity across the vertical space matters for visual cable-path tracing.

Frequently Asked Questions

Q: What rack sizes is the PE2VSD1296 compatible with?

A: The PE2VSD1296 is designed for EIA 48cm and 58cm racks at 52U. It covers the two most common North American IDF and data center rack depths without adapter hardware.

Q: How tall is the PE2VSD1296, and does it extend above the rack?

A: Overall height is 95.9 inches (2,435.9mm). This provides 52U of managed rack space plus an additional 15U of vertical cable run above the standard rack height, allowing cables to route over the top of the rack without sharp bends.

Q: What standards does the PE2VSD1296 meet?

A: It meets RoHS compliance, UL 2416 (the specific cable management systems standard), and CSA C22.2 for Canadian installations — sufficient for most enterprise and carrier-grade procurement programs.

Q: Is the door on the PE2VSD1296 metal or plastic?

A: The full-length door is metal, double-hinged, and closes with a positive-latch mechanism. The cable retention fingers are molded plastic to cushion cable bundles under load.

Q: Does the PE2VSD1296 require full field assembly?

A: No. The unit ships partially pre-assembled for faster rack installation and quicker deployment, especially relevant in multi-bay rollouts where technician time per bay is a cost factor.

Q: How wide are the cable routing channels on the PE2VSD1296?

A: The overall width is 12 inches (304.8mm) — wider than standard 6-inch vertical managers, giving adequate clearance for high-density trunk bundles, multi-strand fiber trays, and large-diameter cabling without compressing the cable plant.

Marty Allison

The PE2VSD1296 is the unit I reach for when a customer is commissioning a full-height, high-density IDF and needs dual-sided vertical cable management without burning two rack columns to do it. The 95.9-inch overall height — accounting for both the 52U rack column and an additional 15U above — is the defining spec here. That overhead run allowance is what keeps your fiber from hitting minimum bend radius violations at the top of the rack, which is almost always where I see performance issues traced back to during post-installation audits.

Technical Highlights:

• 12-Inch Channel Width: At 304.8mm, this is double the width of a standard vertical manager — the difference between managing a 48-strand trunk comfortably versus fighting bundle compression every time you route a new cable.
• Metal Frame + Plastic Fingers: The structural rigidity comes from the steel frame, which handles cable weight without racking the unit over time. The molded plastic fingers are the correct choice for cable contact points — they flex under bundle load rather than creating a hard edge that degrades jacket integrity on high-cycle patch positions.
• UL 2416 Listing: This is the cable management-specific UL standard — not just a generic electrical listing. For enterprise customers whose FM or safety teams require it, UL 2416 is the exact certification they're checking for, and the PE2VSD1296 carries it.

Deployment Considerations:

• Verify your rack column is clear for 95.9 inches (2,435.9mm) total height before ordering — the 15U overhead extension requires ceiling clearance above the rack top, which is tighter than it looks in a standard 9-foot data hall with cable tray overhead.
• The PE2VSD1296 is listed for EIA 48cm and 58cm racks specifically. If your installation uses non-standard rack depths or open-frame two-post racks outside that range, confirm mounting bracket compatibility before committing to a full bay order.

This unit is the right call for a greenfield MDA or IDF build where you're running structured fiber and copper in the same vertical column and need the channel width to handle trunk counts realistically — not an environment where a narrow 6-inch manager will quietly choke your cable plant a year after commissioning.
