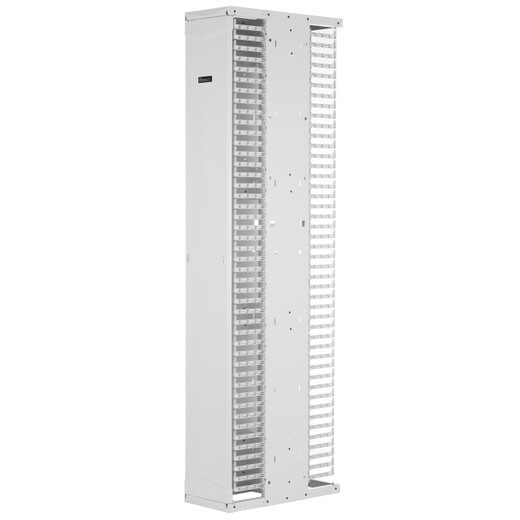

Panduit PE2VSD12WH Dual-Sided Vertical Cable Manager, 45U, 12-Inch Wide
Overview
The Panduit PE2VSD12WH is a heavy-duty, dual-sided vertical cable manager from the Panduit PatchRunner 2 line — built for high-density structured cabling environments where cable organization, accessibility, and long-term serviceability are non-negotiable. At 45U tall (83.9 inches / 2,131 mm overall height) and 12 inches wide, it provides a substantial cable routing corridor on both front and rear access faces, making it a practical fit for two-post or four-post open racks in data centers, IDF closets, and security head-end rooms. The PE2VSD12WH ships partially assembled for faster deployment without on-site sub-assembly headaches.
This manager is compatible with standard 48 cm / 58 cm EIA rack configurations — the most common open-frame and enclosed rack footprints in enterprise and commercial security infrastructure deployments. If you are planning a rack and enclosure buildout and need predictable cable routing from patch panels to switches or from NVR ports to distribution equipment, this is the type of component that pays dividends during adds-moves-changes rather than just at initial installation.
Key Features
- 45U + 15U Bonus Vertical Capacity: The primary cable channel spans 45U, and the manager includes an additional 15U of vertical routing space above the standard rack height. In practice, that extra 15U provides a dedicated top-of-rack exit path for cable bundles heading to overhead cable trays or horizontal managers — eliminating the forced bends that kill structured cabling neatness at rack tops.
- Dual-Sided Access with Full-Length Metal Door: The two-sided design routes cables on both the front and rear faces of the manager. The included full-length, double-hinged metal door with a push-to-close latch keeps cable runs contained and protected without requiring tools to open for routine maintenance. For environments with frequent patching activity — think MDF rooms or security integration racks with regular camera adds — this matters more than in set-and-forget deployments.
- 12-Inch Channel Width: At 304.8 mm wide, this manager handles high cable counts without the forced stacking and compression that narrows bend radius and degrades signal integrity on Cat6A or fiber runs. If your rack density involves 48-port patch panels and bundled horizontal runs, the 12-inch width gives you the working room to maintain proper bend radius on every cable tier.
- Metal Structure with Molded Plastic Finger Strips: The combination of a metal main frame and molded plastic cable fingers gives you structural rigidity where it counts (the door and frame survive repeated open/close cycles) while the plastic fingers provide the cable separation and routing guidance that keeps bundles sorted by row. This is a more durable configuration than all-plastic vertical managers under sustained use.
- Partial Pre-Assembly: Unlike fully disassembled cable management accessories that require significant field assembly time, the PE2VSD12WH arrives partially assembled. In a time-billed installation or a tight commissioning window, this reduces rack population time in a way that matters when you are populating 10 or 20 racks in sequence.
- Zero-U Patching Characteristic: The PatchRunner 2 design supports Panduit's zero-U patching approach — cable management that does not consume a rack unit of usable equipment space. Every U in a 45U rack is equipment-capable; the manager occupies the vertical side channel, not a horizontal bay.
- RoHS, UL 2416, and CSA C22.2 Compliance: RoHS compliance confirms the unit is free of restricted hazardous substances — relevant for enterprise IT environments with procurement environmental standards. UL 2416 and CSA C22.2 certifications confirm the unit meets North American safety standards for wiring management equipment, which matters for data center compliance documentation and AHJ inspections.
- White Finish: The white color (RAL designation Blanc) is a deliberate choice for open-frame rack environments or mixed-media rooms where visual organization by function is a real management practice. White vertical managers against dark rack steel make cable routing status visually distinct during audits.
Integration & Compatibility
The PE2VSD12WH is rated for use with standard 48 cm (19-inch) and 58 cm EIA racks at 45U. It is not a proprietary Panduit-only fitting — it installs on any rack meeting standard EIA hole spacing, which covers the vast majority of open-frame and enclosed racks from APC, Middle Atlantic, Rittal, Chatsworth, and equivalent manufacturers. Pair it with structured cabling accessories such as horizontal cable managers, patch panels, and cable ties to complete a fully organized rack assembly. For PoE switch deployments with dense cable counts, the 12-inch channel provides sufficient routing clearance for Cat6A bulk runs without exceeding bend radius minimums.
If you are building out a security head-end rack — NVRs, PoE switches, patch panels, and power distribution — the dual-sided access of the PE2VSD12WH handles both the front patch cords and the rear structured cable exits in a single vertical bay. Review a cable management planning guide to size horizontal and vertical managers correctly before committing to a rack layout.
Frequently Asked Questions
Q: What rack sizes is the PE2VSD12WH compatible with?
A: The PE2VSD12WH is designed for use with standard 48 cm (approximately 19-inch) and 58 cm EIA racks at 45U. It follows standard EIA hole spacing and is not limited to Panduit-branded rack enclosures.
Q: Does the PE2VSD12WH include a door?
A: Yes. The unit includes a full-length, double-hinged metal door with a push-to-close latch. The door runs the full length of the cable manager and provides secure, tool-free access.
Q: What certifications does the PE2VSD12WH carry?
A: The PE2VSD12WH meets RoHS compliance, UL 2416, and CSA C22.2 standards — the standard North American certifications for wiring management equipment.
Q: How tall is the PE2VSD12WH overall?
A: The overall height is 83.9 inches (2,131.1 mm). The primary routing channel covers 45U, with an additional 15U of vertical routing capacity above that for cable exit paths.
Q: Is the PE2VSD12WH difficult to install?
A: Panduit ships the PE2VSD12WH partially pre-assembled, which reduces on-site assembly time compared to fully disassembled alternatives. It is designed for quick deployment in standard EIA racks.
Q: What color is the PE2VSD12WH and does it come in other finishes?
A: The PE2VSD12WH is finished in white (Blanc). The 'WH' suffix in the model number designates the white colorway. Check the broader Panduit PatchRunner 2 family for alternative finish options.
The PE2VSD12WH is one of those components that integrators tend to underestimate at the quoting stage and then wish they had specified more carefully during commissioning. The 12-inch channel width and the dual-sided door configuration are specifically what separate this from a budget vertical manager — once you have 30 or 40 Cat6A runs entering a 45U rack from both patch-panel front and switch rear, 12 inches of routing width is the difference between maintaining proper bend radius and creating a cable failure point six months after handoff.
Technical Highlights:
- 45U + 15U Routing Capacity: The 15U of bonus vertical space above the primary 45U channel is underutilized by most installers — it's the right place to route structured cable bundles toward overhead J-hooks or cable tray, keeping the top-of-rack area clean without the compressed S-bends that are standard in rushed installations.
- Full-Length Double-Hinged Metal Door: The push-to-close latch and double hinge mechanism means the door can be opened wide without a stop point mid-swing — a small detail that becomes significant when you are working inside a narrow aisle and cannot fully extend your arm to manage a stiff single-hinge door.
- UL 2416 / CSA C22.2 Certification: These certifications are not just checkboxes — in jurisdictions where AHJ sign-off requires listed cable management components, having UL 2416 documentation on the PE2VSD12WH saves a project review cycle.
Deployment Considerations:
- Verify your rack footprint before ordering: the PE2VSD12WH is rated for 48 cm and 58 cm EIA racks — if you are working with a non-standard open-frame rack or a proprietary enclosed cabinet with internal vertical rails, confirm hole pattern compatibility before committing to this specific model.
- At 83.9 inches tall, this is a full-height unit — it will not fit flush in a partial-height rack or a wall-mount enclosure under 45U. Plan vertical placement accordingly, especially in retrofit deployments where ceiling clearance may be limited.
For security integration projects involving dense IDF or MDF racks — NVRs, managed PoE switches, patch panels, and video distribution gear all in one bay — the PE2VSD12WH's dual-sided access and 12-inch channel width make it the right vertical management specification, particularly where the rack will be touched repeatedly for camera adds and network changes over a multi-year service contract.
