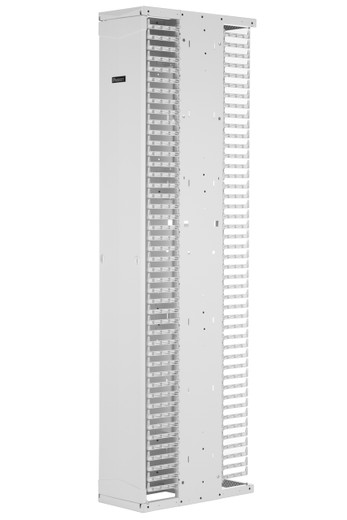

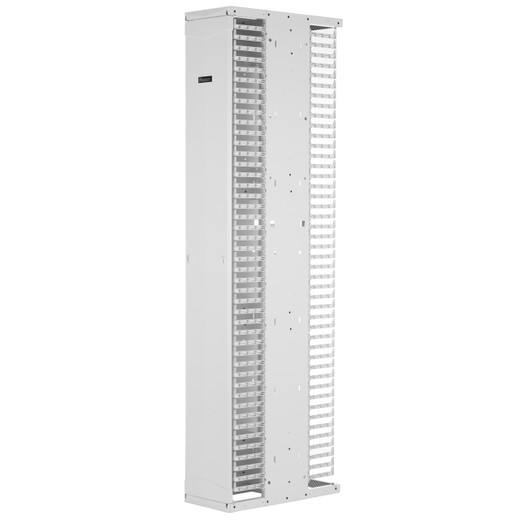

Panduit PE2VSD10WH Dual-Sided Vertical Cable Manager, 45U, 10-Inch Wide
Overview
The Panduit PE2VSD10WH is a 45U, 10-inch-wide dual-sided vertical cable manager from the Panduit PatchRunner 2 line — engineered for high-density data center and structured cabling environments where cable organization directly impacts airflow, maintenance time, and port accessibility. At 83.9 inches tall and 10 inches wide, it spans the full height of a standard 45U EIA rack and accommodates the cable volumes that come with high-density patch panel deployments.
The PE2VSD10WH ships partially assembled to reduce installation time on the rack floor — a practical detail in live data center deployments where technician hours are billed and downtime windows are short. It is designed for use with 48 cm/58 cm EIA racks in 45U configurations, making it a direct fit for the majority of commercial cabinets and rack enclosures deployed in enterprise and colocation environments.
Key Features
- Zero-U Cable Routing: The PatchRunner 2's zero-U design means the cable manager occupies dedicated vertical real estate on the rack's side channel rather than consuming usable rack units. In a fully populated 45U rack, that distinction is the difference between fitting your last patch panel or losing a U to cable management hardware.
- Dual-Sided Access: Front and rear cable routing channels allow you to manage both the patch panel side and the equipment side independently — critical when you're pulling individual cable runs for moves, adds, and changes without disturbing adjacent ports.
- Full-Length Metal Door with Dual-Hinge and Snap Closure: The hinged door runs the full 83.9-inch height and latches with a snap closure. On a working rack, that means cables stay contained and protected during vibration and incidental contact, while the snap mechanism lets a single technician open and reseat without tools.
- Metal Frame with Molded Plastic Fingers: The structural metal frame handles the mechanical load of high-density cable bundles, while the molded plastic fingers provide the bend-radius protection that keeps Cat6A and fiber runs compliant with TIA-568 minimums. This hybrid construction is more durable than all-plastic designs in long-term service.
- 10-Inch Width: At 254 mm (10 inches), this unit is sized for higher cable volumes than a standard 4- or 6-inch manager. If you're terminating 48-port patch panels across multiple Us, the extra width prevents cable bundles from stacking and restricting airflow — a real factor in high-port-count PoE switch and server deployments where thermal management matters.
- 45U + 12 Additional Vertical U: The 12 extra vertical U capacity above the standard 45U frame gives you overflow routing space for runs that need to exit the top of the rack — useful when routing to overhead cable trays in raised-floor data centers or structured cabling closets.
- Partial Pre-Assembly: Factory pre-assembly reduces on-site build time. In a rollout of multiple racks, that labor savings compounds — less time assembling hardware means more time commissioning and testing the network.
- Standards Compliance — RoHS, UL 2416, CSA C22.2: UL 2416 listing covers cable management products for use in information technology equipment installations. RoHS compliance keeps the unit compatible with green-building and procurement requirements that are increasingly standard in enterprise and government contracts. CSA certification covers Canadian deployments without requiring separate product qualification.
Integration & Compatibility
The PE2VSD10WH is designed for use with 48 cm and 58 cm EIA 45U racks — the standard footprint across most commercial rack manufacturers. It pairs directly with Panduit's patch panel and structured cabling ecosystem, and the zero-U mounting profile means it does not conflict with equipment mounted in the rack's usable space. The white (blanc) finish is consistent with Panduit's standard PatchRunner 2 color family for deployments where rack aesthetics and color-coding are specified.
Frequently Asked Questions
Q: What rack sizes is the PE2VSD10WH compatible with?
A: The PE2VSD10WH is designed for use with 48 cm (19-inch) and 58 cm EIA racks in a 45U configuration — the standard footprint for commercial data center and structured cabling deployments.
Q: Does the PE2VSD10WH include a door?
A: Yes. It includes a full-length metal door with dual hinges and a snap closure that runs the entire 83.9-inch height of the unit.
Q: What is the width of the PE2VSD10WH?
A: 10 inches (254 mm). This is a wider-than-standard configuration suited for high-density cable volumes at 45U rack height.
Q: Is the PE2VSD10WH RoHS compliant?
A: Yes. The PE2VSD10WH meets RoHS requirements and also carries UL 2416 and CSA C22.2 certifications.
Q: Does this unit ship fully assembled?
A: It ships partially assembled to simplify installation and speed up rack deployment. Full assembly is completed on-site during installation.
Q: How many rack units does the PE2VSD10WH manage?
A: It provides 45U of primary vertical cable management capacity plus an additional 12 vertical U of overflow routing space above the standard frame height.
The PE2VSD10WH is a unit I recommend specifically when the cable count per rack is high enough that a standard 4- or 6-inch vertical manager will create a bottleneck — the 10-inch (254 mm) channel width is the spec that separates this from the lighter-duty options in the PatchRunner 2 family, and at 45U plus 12 additional vertical U, it covers full-height racks with headroom for overhead tray exits.
Technical Highlights:
- 10-Inch Channel Width (254 mm): Accommodates the bundle diameter that results from fully populating a 45U rack with 48-port patch panels — without the airflow restriction you get when cables are compressed into a narrower channel.
- Full-Length Hinged Metal Door (83.9 in / 2,131 mm): Runs the entire height of the unit with a snap closure — no separate latch hardware, no partial coverage gaps. The dual-hinge design lets one person open it without assistance during MACs.
- UL 2416 / CSA C22.2 Certification: Directly relevant for deployments in enterprise facilities that require listed cable management products for IT equipment installations — covers both US and Canadian site requirements from a single SKU.
Deployment Considerations:
- Verify rack compatibility before ordering: the PE2VSD10WH is specified for 48 cm and 58 cm EIA 45U racks. If your facility uses non-standard rack depths or widths, confirm fit before the install date.
- Partial pre-assembly speeds deployment, but plan for final on-site assembly steps — budget technician time accordingly on high-rack-count rollouts where this is being installed across 10 or more racks in a single session.
This unit is the right call for enterprise IDF/MDF closets and colocation cage builds where 45U racks are fully populated, cable counts per rack are high, and the installation needs to pass facility inspection under UL 2416 in both US and Canadian jurisdictions.
