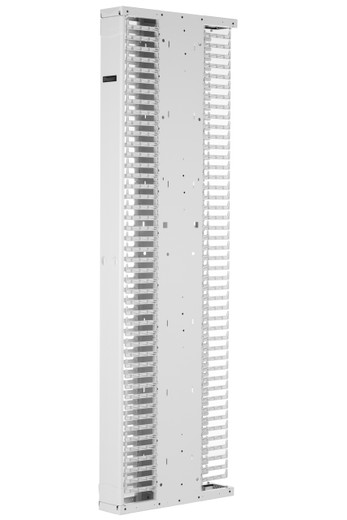

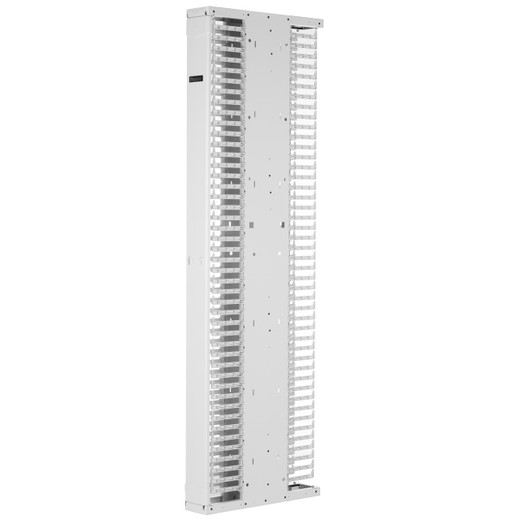

Panduit PE2VSD0696WH Dual-Access Vertical Cable Manager
Overview
The Panduit PE2VSD0696WH is a 52U, 6-inch-wide dual-sided vertical cable manager from the PatchRunner™ 2 Enhanced family — built for high-density structured cabling environments where cable organization, accessibility, and long-term serviceability matter. At 95.9 inches tall (2,435.9 mm), this unit spans a full 52U rack footprint while adding 6U of vertical bonus capacity, making it the right fit alongside tall network cabinets and enclosures in core data closets, MDF/IDF rooms, and dense enterprise patch environments. The PE2VSD0696WH ships partially assembled, accelerating installation in time-sensitive deployments.
Designed for 19-inch EIA racks in 480 mm and 580 mm depths, this manager integrates directly into standard rack infrastructure without modification. Its white finish (RAL designation: Blanc) suits clean-room and light-colored cabinet environments where aesthetics and cable traceability are priorities for facilities teams.
Key Features
- 52U + 6U Bonus Height (95.9 in / 2,435.9 mm): Covers a full tall-rack column with room to spare. The additional 6U of vertical capacity means you're not fighting for routing space at the top of the rack — a common pain point in fully populated 52U deployments.
- 6-Inch Clear Width (152.4 mm): Provides meaningful cable bundle clearance in high-density patch scenarios. Compared to standard 4-inch managers, the extra width accommodates larger trunk bundles, Category 6A, and fiber runs without forcing tight bend radii that degrade signal integrity or damage cable jackets.
- Dual-Sided (Two-Door) Access: Both front and rear access means you can manage, add, or reroute cables from either side of the vertical channel — critical in live environments where you can't afford to pull everything out to reach a single cable run buried in a single-sided manager.
- Full-Length Metal Door with Double-Hinge and Snap Closure: The hinged metal door (full length) with snap closure keeps cables contained and protected without requiring tools to open. Double-hinge design maintains door position even at full swing — useful in tight aisle conditions where a door swinging loose creates a hazard.
- Metal Structure with Molded Plastic Finger Bands: The steel backbone provides rack-grade structural rigidity, while the molded plastic finger bands guide individual cable runs cleanly. This combination avoids the all-plastic managers that flex under load and create alignment issues over time.
- Partial Factory Assembly: Ships partially assembled to reduce on-site installation time. In large-scale rack deployments (say, 20+ cabinets), that time savings compounds — no loose hardware kits to sort, fewer field assembly steps per unit.
- EIA 19-Inch Rack Compatibility (480 mm / 580 mm depth): Fits the two most common rack depth standards used in enterprise network rooms and data centers. Verify your specific rack model against the 480/580 mm depth spec before ordering — not all third-party racks are true EIA.
- RoHS Compliant: Meets EU Restriction of Hazardous Substances requirements — a prerequisite for deployments in LEED-certified buildings, EU-regulated environments, and any project with green procurement mandates.
- UL 2416 and CSA C22.2 Listed: Both UL and CSA listings mean the PE2VSD0696WH satisfies North American safety standards required by AHJs (Authorities Having Jurisdiction) on commercial construction projects. Saves you the conversation with the inspector.
- White Finish: Matches light-colored rack and cabinet interiors common in healthcare, education, and enterprise environments where visual organization and cleanliness standards are maintained. Not the right choice for black-cabinet-dominant deployments — order the appropriate color variant instead.
Integration & Compatibility
The PE2VSD0696WH is designed for use with standard EIA 19-inch racks in 480 mm and 580 mm depths. It pairs naturally with patch panels and high-density fiber optic cable management solutions in structured cabling installations. As part of the broader Panduit cable management catalog, this manager is designed to work alongside Panduit's horizontal managers, patch panels, and fiber enclosures for a coordinated system approach. For planning dense rack builds, consult a network rack planning guide to size vertical manager quantities and widths against actual cable counts per rack unit.
Compatibility note: this unit is rated for vertical cable manager applications in 52U rack columns. Confirm rack post hole patterns (EIA-310) and cabinet depth before installation. The 480/580 mm depth range covers the majority of enterprise rack lines but excludes some shallow-depth telecom and wall-mount cabinets.
What's in the Box
Package quantity: 1 unit (PE2VSD0696WH vertical cable manager, partially assembled). Verify with your order confirmation for any included mounting hardware — consult the Panduit product page for full accessory details.
Frequently Asked Questions
Q: What rack sizes is the PE2VSD0696WH compatible with?
A: The PE2VSD0696WH is designed for EIA 19-inch racks in 480 mm and 580 mm depths, 52U tall. It covers standard enterprise rack formats from major manufacturers. Verify your specific rack's depth and post hole spacing against the EIA-310 standard before ordering.
Q: Does the PE2VSD0696WH meet any safety or environmental compliance standards?
A: Yes. The PE2VSD0696WH is UL 2416 listed, CSA C22.2 certified, and RoHS compliant. These cover North American electrical safety requirements (UL/CSA) and EU hazardous substances restrictions (RoHS) — relevant for commercial construction, green building, and regulated procurement environments.
Q: Why is dual-sided access important in a vertical cable manager?
A: Dual-sided access lets technicians route, add, or service cables from both the front and rear of the vertical channel without unplugging active runs. In a live network room, single-sided managers force you to move cables to reach anything buried inside — dual access is a real operational advantage on high-change environments.
Q: Is the PE2VSD0696WH partially or fully assembled?
A: It ships partially assembled, which reduces on-site installation time. This is particularly useful in multi-rack deployments where assembly time per unit adds up quickly.
Q: What is the actual height and width of the PE2VSD0696WH?
A: Overall height is 95.9 inches (2,435.9 mm). Overall width is 6 inches (152.4 mm). The unit accommodates 52U of rack space plus an additional 6U vertical bonus capacity.
Q: Can the PE2VSD0696WH be used in data centers and MDF/IDF rooms?
A: Yes. The 52U capacity, 6-inch width, dual-sided access, and full-length metal door make it well-suited to data center rows, main distribution frames (MDF), and intermediate distribution frames (IDF) in enterprise and commercial network environments.
The PE2VSD0696WH is one of the few vertical managers in this class that gets the details right for high-density live environments: 6-inch clear width, dual-sided access with a full-length metal door, and 95.9 inches of total height covering 52U plus 6U of bonus vertical. Those specs aren't marketing copy — in a loaded 52U rack, that extra 6U of vertical routing room is where you avoid the cable-crunch at the top of the column that creates maintenance headaches for years.
Technical Highlights:
- 6-Inch Width (152.4 mm): Wide enough to handle Cat6A trunk bundles and mixed copper/fiber runs without forcing sub-minimum bend radii — the dimension where budget managers cut corners and create long-term signal integrity problems.
- UL 2416 + CSA C22.2 + RoHS: All three listings in a single unit means no compliance gaps on North American commercial jobs with AHJ inspections or green procurement requirements. Don't assume unlisted managers will pass inspection on commercial builds.
- Partial Factory Assembly: Saves real time across multi-rack deployments. On a 20-cabinet installation, even 15 minutes saved per unit is 5 hours of labor — the kind of detail that matters when crews are billing by the hour.
Deployment Considerations:
- Confirm rack depth before ordering — the 480 mm and 580 mm compatibility range covers most enterprise rack lines but will not fit shallow-depth wall-mount or telecom cabinets outside that range. A mismatch here means a return shipment and a delayed installation.
- The white finish (Blanc) is purpose-matched to light-colored cabinets. If your rack environment is predominantly black, specify the correct color variant — mixing white managers in black cabinet rows creates visual clutter that slows down technician identification of cable runs.
The PE2VSD0696WH is the right call for enterprise MDF/IDF builds and data center rows where rack density is high, cable volumes are large, and the operations team needs to service cables without taking down active runs. It's not sized for small closets or wall-mount applications — that's not what it's built for.
