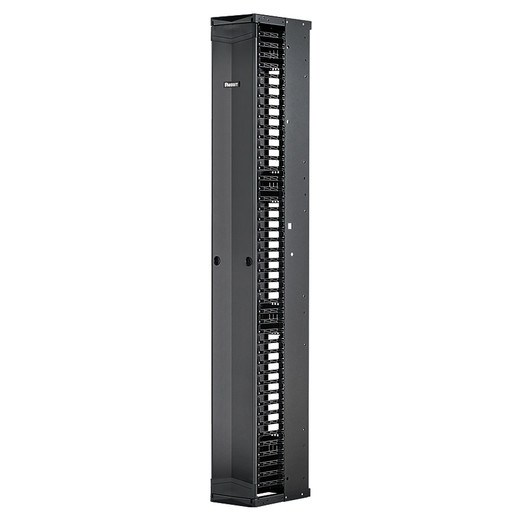

Panduit PE2VFD08 45U Single-Sided Vertical Cable Manager
Overview
The Panduit PE2VFD08 is an 8-inch wide, 45U single-sided vertical cable manager from the Panduit PatchRunner 2 Enhanced line, engineered for high-density structured cabling environments where clean, accessible cable routing is critical to long-term maintainability. At 83.9 inches tall (2,131.1 mm) and 8 inches wide (203.2 mm), this manager occupies a full standard rack column while delivering what Panduit calls "zero-U patching" — routing cables vertically alongside your EIA 19-inch or 23-inch racks without consuming a single rack unit of usable equipment space. It ships partially assembled, which cuts initial installation time considerably versus field-assembled alternatives.
The PE2VFD08 targets data centers, telecommunications rooms, and enterprise IT closets running dense patch panel deployments where cable clutter translates directly into troubleshooting time and change-management risk. If your 48-inch-wide EIA rack is running 45U of switches and patch panels, this manager gives you a dedicated vertical pathway that keeps cables organized, protected, and accessible without reworking your equipment layout.
Key Features
- 45U Vertical Capacity with Zero-U Patching: The 83.9-inch overall height covers a full 45U rack column plus an additional 9U of vertical overage — that buffer accommodates slack loops and cable bends without forcing tight radius turns that degrade fiber performance or stress copper terminations. No rack units are consumed by the manager itself, preserving every U for active equipment.
- 8-Inch Channel Width (203.2 mm): The 8-inch width accommodates high-density horizontal runs exiting multiple patch panels simultaneously. Narrower 4-inch managers fill quickly in 24-port-per-U deployments; the PE2VFD08's wider channel keeps fill rates manageable even as you add switch ports over time, reducing the need for supplemental cable duct.
- Metal Structure with Molded Plastic Fingers: The combination of a steel chassis and injection-molded plastic routing fingers gives you structural rigidity for heavy cable loads alongside the flexibility of finger-style routing. Fingers let you add, remove, or reroute individual cables without disturbing adjacent runs — a real operational advantage in live environments where you need to trace or replace a single patch cord without pulling everything out.
- Full-Length Dual-Hinge Metal Door with Snap Closure: The hinged door runs the entire 83.9-inch height and snaps closed without a tool. In practice, this means the door stays fully out of the way during patching work and closes securely afterward to maintain airflow discipline — relevant in hot-aisle/cold-aisle configurations where open cable troughs create bypass air paths that raise inlet temperatures.
- Partial Factory Assembly: Ships partially assembled to speed deployment. In a rack rollout context, this reduces the per-unit labor hours that add up fast when you're provisioning 20 or 40 racks in a data center build-out.
- Compatible with 48cm/58cm EIA 45U Racks: Designed specifically for 48 cm (19-inch) and 58 cm (23-inch) EIA-standard 45U racks, which covers the dominant rack form factors in enterprise and carrier environments. Verify your specific rack's vertical mounting rail spacing before ordering — this manager is optimized for that dimension range.
- RoHS Compliant, UL 2416 Listed, CSA C22.2 Certified: UL 2416 is the standard for wire and cable management systems — listing under this standard means the unit has been evaluated for flame spread, structural integrity, and load-bearing characteristics under UL's test protocols. CSA C22.2 certification covers Canadian electrical code compliance. Both matter for facilities with AHJ (Authority Having Jurisdiction) inspection requirements or insurance mandates on installed cable infrastructure. RoHS compliance addresses hazardous substance restrictions relevant to WEEE and EU deployments.
- Black Finish: Standard black finish matches the predominant rack and PDU color in enterprise environments, keeping the overall installation appearance consistent without additional specification effort.
Integration & Compatibility
The PE2VFD08 mounts alongside EIA 48 cm and 58 cm 45U rack enclosures and is part of the broader Panduit PatchRunner 2 Enhanced ecosystem. Panduit's competitive cross-reference lists the Legrand/Middle Atlantic VM619 as a comparable part, which can be useful when you're standardizing a mixed-brand rack environment and need to confirm functional equivalence before committing to a single manager style across a deployment. This manager handles copper and fiber patch cables — the finger-style routing is appropriate for both, provided bend-radius requirements for the specific fiber type are observed. For structured cabling deployments requiring a complete cable management strategy, pair with horizontal cable managers at each patch panel row for a full orthogonal routing system.
Frequently Asked Questions
Q: What rack sizes is the PE2VFD08 compatible with?
A: The PE2VFD08 is designed for EIA 48 cm (19-inch) and 58 cm (23-inch) 45U rack enclosures. Verify your rack's vertical mounting rail spacing before installation.
Q: Does the PE2VFD08 consume rack unit space (U space)?
A: No. The PE2VFD08 uses a zero-U patching design — it mounts vertically alongside the rack and does not occupy any rack unit positions, preserving all 45U for active equipment.
Q: What certifications does the PE2VFD08 carry?
A: The PE2VFD08 meets RoHS requirements, is listed under UL 2416 (wire and cable management systems), and carries CSA C22.2 certification for Canadian electrical code compliance.
Q: Is the door removable or does it swing open during patching?
A: The full-length metal door is dual-hinged and swings fully open, snapping closed without tools. It is not designed as a removable panel but provides unobstructed access to the cable channel when open.
Q: What is the overall height and width of the PE2VFD08?
A: Overall height is 83.9 inches (2,131.1 mm) and overall width is 8 inches (203.2 mm).
Q: Is the PE2VFD08 compatible with fiber patch cables?
A: The finger-style routing accommodates both copper and fiber patch cables. When routing fiber, maintain the minimum bend radius specified by your fiber type — the 8-inch channel width provides adequate room for proper slack management.
The PE2VFD08 is the manager I specify when a customer has committed to a 45U rack deployment and knows they'll be running dense copper or fiber patching — the 8-inch channel width is the reason. Most vertical managers in this category top out at 4 inches, and in a 48-port-per-U environment that fills fast enough to create maintenance headaches within the first year of operation.
Technical Highlights:
- 83.9-Inch Full-Height Coverage: Spans the full 45U column plus the additional 9U overhead, which means cable slack loops and service loops have somewhere to go without bending back on themselves — a detail that matters most on fiber runs where tight bends cause measurable insertion loss.
- Zero-U Design: Mounts adjacent to the rack rather than consuming rack units — in a 45U cabinet already packed with switching and patch infrastructure, recovering even 1U has real value, and this design recovers all of it.
- UL 2416 Listing: Not all cable managers carry this listing. In facilities where the AHJ or insurance carrier requires listed cable management, this matters at sign-off time — it's not a spec you want to discover is missing after the rack is fully populated.
Deployment Considerations:
- Confirm your rack's vertical mounting channel dimensions match the EIA 48 cm or 58 cm footprint before ordering — the PE2VFD08 is optimized for that range, and dimensional mismatches require adapter hardware that adds cost and complexity.
- The snap-closure door is convenient but not lockable — in colocation or shared-space environments where cable tampering is a concern, supplement with a locking rack enclosure rather than relying on the manager door for physical security.
This manager is the right call for enterprise MDF/IDF builds and colocation deployments where a 45U rack is running 24 or more patch panel ports per U and the team needs the cable plant to remain traceable and maintainable three years post-install — not just on day one.
