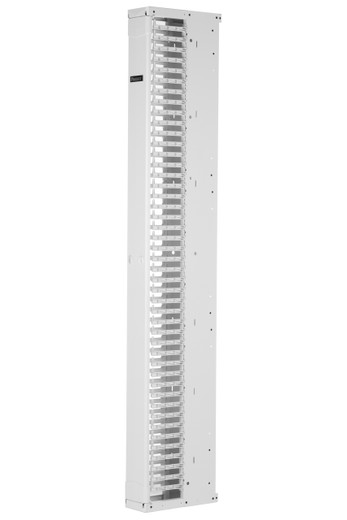

Panduit PE2VFD0896WH Single-Sided Vertical Cable Manager, 52U, 8-Inch Wide
Overview
The Panduit PE2VFD0896WH is a heavy-duty, single-sided vertical cable manager from the Panduit PatchRunner 2 product line — engineered for high-density structured cabling environments where cable organization, accessibility, and long-term serviceability are non-negotiable. Spanning 52U of rack space plus an additional 9 vertical rack units, this manager reaches a total height of 95.9 inches (2,435.9 mm), making it a full-height solution for standard 48-inch or 58-inch EIA racks. At 8 inches (203.2 mm) wide, it provides generous cable routing capacity without consuming excessive floor space in tight row configurations.
Designed for data centers, network operations centers, and enterprise IDF/MDF closets, the PE2VFD0896WH ships partially assembled to reduce installation time and simplify field deployment. The white finish integrates cleanly into modern white-cabinet data center environments.
Key Features
- 52U + 9U Extra Vertical Height (95.9 in / 2,435.9 mm total): The extended height accommodates full-height 52U racks while the bonus 9U overhead capacity handles cable egress above the top of the cabinet — eliminating the abrupt termination point that forces ugly cable bends at the rack top.
- 8-Inch (203.2 mm) Single-Sided Channel: The 8-inch channel width supports very high cable density — appropriate for high-density patch panel deployments with multiple 24- or 48-port panels stacked vertically. Single-sided design keeps cable management on one face for straightforward front-access servicing.
- Zero-U Switching Capability: The PatchRunner 2 Enhanced sub-brand introduces zero-U switching support — meaning you can route and reconfigure cabling without consuming rack unit space on adjacent equipment. This is the spec that separates the PatchRunner 2 Enhanced from standard vertical managers and directly reduces the operational overhead of MACs (moves, adds, changes).
- Partial Pre-Assembly from the Factory: Ships partially assembled, so installation crews spend time mounting and connecting rather than building from hardware bags. In large deployments with dozens of units, this accelerates commissioning materially.
- Full-Length Metal Door with Dual-Hinge Snap Closure: The metal door runs the full length of the manager and closes with a snap-close mechanism — keeps cables contained and visually clean without tools, yet opens immediately for access. Metal construction means the door survives repeated open/close cycles without warping or breaking, unlike plastic-door alternatives.
- Metal Frame with Molded Plastic Finger Bands: The structural frame is metal for rigidity and long-term shape retention; the cable finger bands are molded plastic for smooth cable routing without abrasion. This hybrid construction is standard practice in commercial-grade vertical managers and the correct approach for mixed copper/fiber environments.
- RoHS Compliant, UL 2416, CSA C22.2 Certified: Meets RoHS for hazardous substance compliance (relevant for LEED-certified facilities and international deployments), UL 2416 for cable management, and CSA C22.2 for Canadian installations. These certifications are required by most enterprise procurement standards and AHJs in North America.
- Compatible with EIA 48 cm / 58 cm, 52U Racks: Fits both 19-inch (48 cm) and 23-inch (58 cm) EIA rack formats, giving you flexibility across mixed cabinet environments without sourcing separate SKUs.
Integration & Compatibility
The PE2VFD0896WH is designed to mount alongside standard EIA rack enclosures at 48 cm and 58 cm widths in 52U configurations. The zero-U switching feature integrates with PatchRunner 2 Enhanced patch panels and horizontal managers to create a complete structured cabling ecosystem. For full-row deployments, pair this vertical manager with a compatible Panduit patch panel solution to realize the zero-U benefit end-to-end. The white colorway (Blanc) is specified for white-cabinet data center rows; a separate SKU is available if your environment uses black cabinets.
Package quantity is 1 unit. Carton quantity is not specified in the manufacturer data for this SKU.
What's in the Box
1x Panduit PE2VFD0896WH single-sided vertical cable manager, partially assembled, with full-length hinged metal door. Mounting hardware as included per Panduit standard packaging for this series.
Frequently Asked Questions
Q: What rack sizes is the PE2VFD0896WH compatible with?
A: The PE2VFD0896WH is designed for use with EIA 48 cm (19-inch) and 58 cm (23-inch) 52U racks. It accommodates both standard rack widths without modification.
Q: What is the overall height of the PE2VFD0896WH?
A: The total height is 95.9 inches (2,435.9 mm). This covers 52U of rack space plus an additional 9 vertical rack units of overhead routing capacity.
Q: Does the PE2VFD0896WH have a door, and what type?
A: Yes. It includes a full-length metal door with a dual-hinge snap-close mechanism. The door runs the entire height of the manager for full cable containment.
Q: What certifications does the PE2VFD0896WH carry?
A: The PE2VFD0896WH meets RoHS compliance, UL 2416, and CSA C22.2 standards — covering hazardous substance restrictions, U.S. cable management safety, and Canadian electrical code requirements.
Q: Is the PE2VFD0896WH single-sided or double-sided?
A: Single-sided. Cable routing and access are on one face of the manager. If you need front-and-rear cable routing in the same vertical unit, Panduit offers double-sided variants in the PatchRunner 2 line.
Q: What does zero-U switching mean on the PatchRunner 2 Enhanced?
A: Zero-U switching means patching and cable rerouting can occur within the vertical manager channel itself without occupying any rack unit (U) space on adjacent equipment. This preserves usable rack space for active hardware while still supporting structured cabling reconfiguration.
The PE2VFD0896WH is one of those infrastructure pieces that pays dividends over the lifecycle of a deployment rather than at initial install. The 95.9-inch total height — 52U plus 9 extra vertical U — means you're not fighting cable egress at the top of the rack, which is exactly where most cable management solutions fall short and where you end up improvising with velcro and hope during a late-night change window.
Technical Highlights:
- 8-Inch Channel Width: At 203.2 mm, this is the correct sizing for high-density copper or fiber runs feeding 48-port patch panels — gives you enough bend radius management without over-sizing into the aisle.
- Zero-U Switching (PatchRunner 2 Enhanced): The core differentiator of this sub-brand. Patching within the vertical channel preserves every rack unit for active gear — meaningful in a 52U cabinet where a single U reclaimed is one more 1U switch or PDU.
- UL 2416 / CSA C22.2 / RoHS: These aren't marketing checkboxes — UL 2416 and CSA C22.2 are required by most enterprise facility managers and AHJs before sign-off on permanent infrastructure. RoHS matters if the facility is LEED-rated or the hardware is destined for EU deployment.
Deployment Considerations:
- Verify your cabinet is EIA 48 cm or 58 cm in 52U configuration before ordering — this manager is rack-size specific and the 95.9-inch height won't align correctly in non-standard or short-depth cabinets.
- The white finish (Blanc) is matched to white cabinet rows. If your environment uses black cabinets, source the black-finish variant — mixed colors in a single row look unprofessional and can confuse visual cable-tracing in audits.
This manager is the right pick for enterprise data center rows running high-density copper patch fields in 52U white cabinets — specifically where zero-U switching is part of the structured cabling design and where UL/CSA compliance is a hard procurement requirement.
