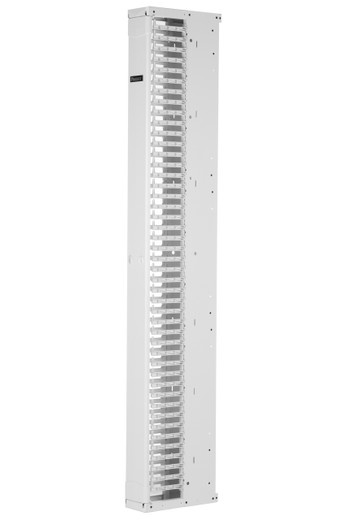

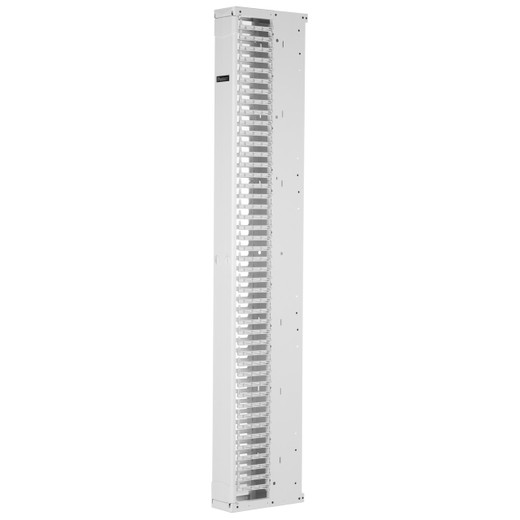

Panduit PE2VFD08WH Single-Sided Vertical Cable Manager, 45U 8-Inch Wide
The Panduit PE2VFD08WH is a 45U, 8-inch-wide single-sided vertical cable manager from the PatchRunner™ 2 Enhanced line — built for high-density data center and network rack deployments where structured cable routing directly affects patching speed, airflow, and long-term maintainability. At 83.9 inches tall (2,131 mm) and compatible with standard 48 cm and 58 cm EIA racks, it ships partially assembled so you can commission it in minutes rather than wrestling with a full kit build on the data center floor.
Overview
Vertical cable managers are the unglamorous workhorse of any well-run rack row — patch panels fill fast, and without a disciplined vertical routing lane, you end up with a spaghetti wall that makes every future move, add, or change (MAC) a multi-person job. The PE2VFD08WH addresses this with a combined metal frame and molded plastic finger construction that physically separates and protects cable runs from floor to top of rack. The full-length double-hinged metal door with a push-to-close latch means you can access the cable channel without unpatching anything — a small detail that pays dividends during late-night emergency MACs. The zero-U patching characteristic unique to the PatchRunner™ 2 Enhanced design means the manager itself does not consume any rack unit space on your equipment rails, keeping all 45U available for active gear.
Key Features
- 45U capacity with zero-U rack footprint: The full 83.9-inch (2,131 mm) height routes cables the entire length of a standard 45U rack column without consuming a single rack unit on your equipment rails — every U stays available for switches, patch panels, and servers.
- 8-inch (203 mm) channel width: The wider 8-inch profile handles high-density cable counts — think 48-port patch panels stacked back-to-back — without compressing bundles into a tight channel that stresses terminations or raises insertion loss on copper runs.
- Partial factory assembly: Ships partially pre-assembled, which cuts on-site installation time meaningfully. For a busy retrofit or a rack-row build-out with a tight maintenance window, not having to assemble the unit from scratch on the floor matters.
- Full-length double-hinged metal door with push-to-close latch: The metal door spans the entire 45U height, protecting cables from accidental pulls and foot traffic. Double hinges prevent warping or sagging over years of open/close cycles, and the push-to-close mechanism keeps it shut without requiring a tool or a separate fastener step.
- Metal frame with molded plastic fingers: The structural metal backbone handles the cable load without deflection; the molded plastic routing fingers guide individual cables without sharp edges that could damage jacket insulation — relevant for Cat6A and fiber where bend radius compliance matters.
- Compatible with 48 cm and 58 cm EIA racks: Fits the two most common rack widths in commercial and enterprise data center deployments, so you're not locked into a single rack vendor. This is the spec to verify before ordering if you're working in a mixed-vendor rack environment.
- RoHS Compliant, UL 2416, CSA C22.2: UL 2416 is the specific standard for wire and cable management — not a generic UL listing. This matters for inspections and for data center operators whose facilities require documented compliance. CSA C22.2 covers Canadian electrical code requirements. RoHS ensures the unit ships without restricted hazardous substances, relevant for LEED-certified facilities or enterprise sustainability procurement policies.
- White finish (RAL designation not specified): White colorway works well in environments with lighter-colored rack rows or where color-coding cable management by row or function is part of the operations playbook. If your standard rack spec calls for black, verify before ordering — Panduit offers the same family in black variants.
Integration & Compatibility
The Panduit vertical cable management line is engineered to pair directly with Panduit's PatchRunner™ rack systems as well as standard EIA 19-inch rack rails in 48 cm (600 mm) and 58 cm (750 mm) enclosures. If you're building out a full rack and enclosure system, the PE2VFD08WH is designed to mount between rack columns alongside horizontal cable managers and patch panels for a complete structured cabling solution. For data center deployments running high-density fiber or copper — where cable bend radius and separation are non-negotiable — pairing this unit with a dedicated cable management planning guide helps ensure airflow, compliance, and MAC efficiency are all addressed at the design stage rather than retrofitted. The unit's 45U span aligns with standard 45U network rack enclosures, making it a direct fit for most enterprise and colocation rack builds without any modification.
What's in the Box
- 1x PE2VFD08WH PatchRunner™ 2 Enhanced single-sided vertical cable manager, 45U, 8-inch wide, white (partially assembled)
Frequently Asked Questions
Q: What rack sizes is the PE2VFD08WH compatible with?
A: The PE2VFD08WH is designed for use with EIA 48 cm (600 mm) and 58 cm (750 mm) wide racks in a 45U configuration. Verify your rack column spacing and rail depth before ordering to confirm fit.
Q: Does the PE2VFD08WH take up rack unit space on the equipment rails?
A: No. The PatchRunner™ 2 Enhanced design features a zero-U patching characteristic — the cable manager mounts vertically between rack columns and does not consume any rack units, so all 45U remain available for active equipment.
Q: What standards does the PE2VFD08WH meet?
A: The PE2VFD08WH is RoHS Compliant and listed to UL 2416 (the standard specific to wire and cable management systems) and CSA C22.2 for Canadian electrical code compliance.
Q: Does the PE2VFD08WH include a door?
A: Yes. It includes a full-length double-hinged metal door with a push-to-close latch that spans the entire 45U height, protecting cable runs while allowing quick access without tools.
Q: What is the overall height of the PE2VFD08WH?
A: The PE2VFD08WH stands 83.9 inches (2,131.1 mm) tall — the full height of a standard 45U rack column plus 9 additional vertical U of routing capacity above the equipment rails.
Q: Is the PE2VFD08WH available in colors other than white?
A: The PE2VFD08WH is white. Panduit offers the PatchRunner™ 2 Enhanced vertical cable manager family in multiple configurations; if black is required, check the equivalent black-finish model in the same product line.
The PE2VFD08WH is the unit I spec when an integrator is building out a 45U row and needs a vertical cable manager that won't fight them during commissioning or during the inevitable MAC six months later. The 8-inch channel width is the key differentiator here — on a dense patch panel row running Cat6A to 48-port panels, the narrower 4-inch variants fill up fast and you end up with over-bundled cables that stress the terminations. The extra width buys you breathing room for future adds without having to pull and re-route existing runs.
Technical Highlights:
- Zero-U rack footprint: Mounts between columns, not on equipment rails — all 45U stay free for active gear. This is the spec that separates purpose-built vertical managers from makeshift bracket solutions.
- Full-length double-hinged metal door: Spans the full 83.9-inch height with a push-to-close latch. In a production environment where cables get touched regularly, a door that stays closed without a tool step is a real operational win over clip-on finger covers.
- UL 2416 listing: This is the cable management-specific standard, not a generic UL component listing. For data centers with AHJ inspections or enterprise clients requiring documented standards compliance, this is the certification to cite — not just 'UL listed.'
Deployment Considerations:
- Confirm rack compatibility before ordering: the PE2VFD08WH is rated for 48 cm and 58 cm EIA racks. If you're working with non-standard or open-frame racks outside these dimensions, measure the column spacing against Panduit's mounting hardware specs.
- The unit ships partially assembled — not fully flat-packed, not fully built. Factor in a short on-site final assembly step; it's faster than a full build but not zero-touch drop-in. Plan accordingly if rack installation time is tightly scheduled.
This is the right manager for a structured 45U enterprise rack build — colocation suites, enterprise IDF closets, or high-density network rooms where long-term MAC efficiency and inspection compliance matter more than shaving a few dollars off the initial rack BOM.
