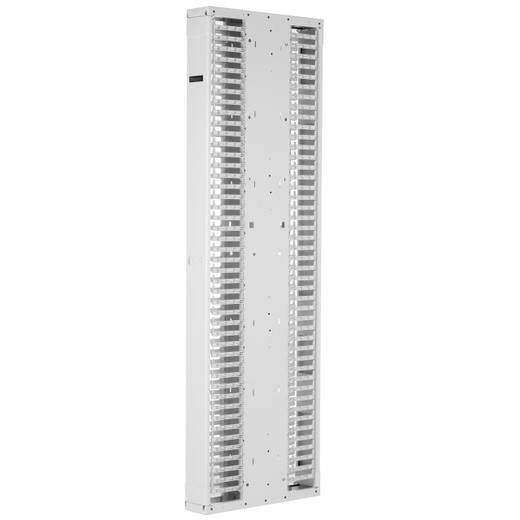

Panduit PE2VD08WH Double-Sided Vertical Cable Manager, 8" Wide, 45U White
Overview
The Panduit PE2VD08WH is an 8-inch-wide, 45U double-sided vertical cable manager from the Panduit PatchRunner 2 Enhanced line — built for high-density data center and enterprise rack deployments where cable organization directly affects airflow, troubleshooting time, and future scalability. At 83.9 inches tall (2,131 mm), it runs full cabinet height with an additional 9U of vertical overhead capacity beyond the standard 45U, giving you meaningful flex room for cable routing at the top of the rack.
Where single-sided managers force you to choose between front and rear accessibility, PE2VD08WH handles both in a single unit with its dual-sided structure — metal frame with molded plastic fingers on each face. Two full-length, dual-hinged metal doors with push-close latches keep cables contained and accessible without requiring tools or awkward reach-around maneuvers in tight aisles.
The unit ships partially pre-assembled, which cuts installation time considerably on large-scale rack deployments. If you're commissioning a multi-cabinet row in a structured cabling environment, that matters on labor costs and go-live schedules.
Key Features
- Zero-U Patching Architecture: The PatchRunner 2 Enhanced's unique zero-U patching capability lets you route and manage patch connections without consuming valuable rack unit space — critical when you're running 40+ patch panels in a high-density cabinet and every U counts.
- 8-Inch Width (203.2 mm): Wider than standard 4" managers, the 8-inch channel accommodates high-volume cable bundles — high-fiber-count trunks, multi-pair copper, or dense patch cord populations — without the compression and bend-radius violations that cause signal degradation in tightly packed runs.
- Full 45U Height Plus 9U Overhead (83.9 in / 2,131 mm): Sized to pair with full-height 45U EIA cabinets, with the additional vertical overhead providing a dedicated routing zone above the standard rack space. This is where you manage cable ingress from overhead trays without interrupting the organized main column below.
- Double-Sided Access with Metal Frame: The metal structural frame provides the rigidity needed in high-cable-weight deployments. Molded plastic fingers on both faces guide cables with consistent bend radius control, and the dual-hinged full-length metal doors protect routes from accidental snag during adjacent cabinet work.
- Push-Close Door Latches: One-handed door closure means technicians can secure the manager while holding cable slack — a practical detail that reduces cable drops and errors during moves, adds, and changes in live environments.
- Partial Pre-Assembly: Ships ready to mount without full field assembly, which is particularly useful when deploying a rack row. Reduced on-site assembly time means faster cabinet commissioning and lower installation labor overhead per rack.
- RoHS Compliant: Meets RoHS standards, making it suitable for deployments in environmentally regulated facilities and supporting procurement compliance requirements in government, healthcare, and EU-market installations.
- White Finish: White coloring (RAL-equivalent) aligns with white-cabinet data center aesthetics and makes cable runs visually distinct from darker infrastructure — useful in lit environments where color-coding cabinet zones aids rapid identification.
Integration and Compatibility
The PE2VD08WH is designed for use with 19-inch and 23-inch EIA 45U racks. It integrates into vertical cable manager configurations alongside Panduit's horizontal managers and patch panels, supporting structured cabling deployments in network cabinets and enclosures. The zero-U patching feature is specific to the PatchRunner 2 Enhanced platform — verify that companion patch panels and cable management accessories are sourced from the same Panduit platform family to take full advantage of the integrated routing architecture.
For high-density network switch deployments or dense fiber interconnect environments, pair this manager with appropriate horizontal cable managers at each rack unit to maintain per-port bend radius compliance from the panel face through the vertical channel. Review your rack and enclosure specifications to confirm door clearance before ordering — the full-length door swing requires adequate aisle depth clearance on both the front and rear faces.
Frequently Asked Questions
Q: What rack sizes is the PE2VD08WH compatible with?
A: The PE2VD08WH is designed for use with 19-inch and 23-inch EIA 45U racks (approximately 48 cm / 58 cm as specified by Panduit). Verify your cabinet's EIA hole pattern and mounting depth before ordering.
Q: Is the PE2VD08WH double-sided or single-sided?
A: Double-sided. The PE2VD08WH provides cable management on both the front and rear faces, with molded plastic fingers on each side and two full-length dual-hinged metal doors — one per face — with push-close latches.
Q: Does the PE2VD08WH require full field assembly?
A: No. It ships partially pre-assembled to simplify installation and speed up rack deployment. Some on-site assembly is required, but it is significantly reduced compared to fully unassembled units.
Q: What is the overall height of the PE2VD08WH?
A: The PE2VD08WH measures 83.9 inches (2,131.1 mm) in overall height, accommodating 45U of standard rack space plus an additional 9U of vertical overhead routing capacity.
Q: Is the PE2VD08WH RoHS compliant?
A: Yes. The PE2VD08WH meets RoHS compliance standards, supporting procurement requirements in regulated industries and EU-market deployments.
Q: What does the zero-U patching feature mean for my rack layout?
A: Zero-U patching allows cable connections to be managed in the vertical channel space without consuming rack unit space. This keeps your 45U of usable rack space fully available for active equipment rather than being partially consumed by cable management hardware.
The PE2VD08WH is one of those infrastructure pieces that pays for itself on the first major MAC event in a high-density cabinet row. The 8-inch channel width is the spec I'd lead with — running dense fiber trunks or 48-port copper patch cords through a 4-inch single-sided manager is a documented path to bend-radius failures and degraded insertion loss. At 203.2 mm, this manager gives you real capacity without stuffing.
Technical Highlights:
- 8-Inch (203.2 mm) Channel Width: Accommodates high-volume cable populations — high-fiber-count trunks, bundled patch cords — without forced bends that violate TIA-568 minimum bend radius requirements for copper and fiber.
- 83.9 in / 2,131 mm Full-Height + 9U Overhead: Matches true 45U cabinet height and provides a dedicated overhead routing zone above the standard rack column — useful for managing ingress from overhead cable trays without disrupting the main organized channel.
- Dual Full-Length Metal Doors with Push-Close Latches: Front and rear containment in a single unit eliminates the need for separate front and rear managers, and the push-close latch mechanism enables one-handed closure during live cable work — reducing the risk of accidental disconnects.
Deployment Considerations:
- The full-length door swing on both faces requires adequate front and rear aisle clearance — verify aisle depth before ordering for hot-aisle/cold-aisle containment rows where door swing space is often constrained by containment panels.
- Zero-U patching is a platform-specific feature of the PatchRunner 2 Enhanced ecosystem. It delivers maximum value when paired with Panduit's compatible patch panels; mixing with non-Panduit panels in the same vertical run may not realize the zero-U benefit fully.
This manager is the right call for structured cabling deployments in enterprise data centers or colocation rows running 40+ patch panels per cabinet, where cable density is genuinely high and aisle access for MACs needs to stay clean. It's not the economical choice for lightly loaded SMB racks — in those environments, a narrower or single-sided manager will do the job at lower cost.
