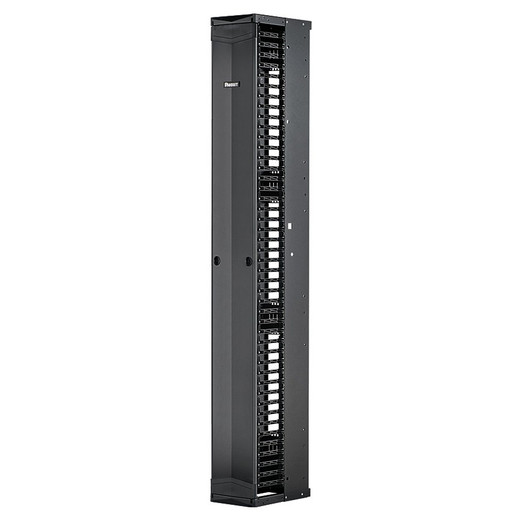

Panduit PE2VFD1296 PatchRunner 2 Enhanced Single-Sided Vertical Cable Manager
The Panduit PE2VFD1296 is a 52U single-sided vertical cable manager engineered for high-density data center and network closet deployments where rack space is at a premium. Built on the PatchRunner™ 2 Enhanced platform, this zero-U design mounts outside the standard EIA rack envelope, preserving all 52U of usable equipment space while delivering 12" of cable routing capacity and 15 additional vertical units for overflow patching. The dual-hinged full-length metal door with snap closure provides secure cable concealment and tool-free access for moves, adds, and changes. Partially pre-assembled construction cuts installation time and eliminates field assembly errors common with fully-knocked-down cable managers.
Key Features
- 52U vertical capacity with 12" (304.8mm) routing width accommodates high-density Cat6A, fiber trunk, and power distribution cabling
- Zero-U mounting design installs outside rack frame rails, preserving all 52 rack units for active equipment
- Reinforced metal frame construction with molded plastic cable fingers provides structural rigidity and flexible cable retention
- Full-length double-hinged metal door with snap closure eliminates need for tools during service events
- 15 additional vertical units extend routing capacity beyond the 52U rack height for overhead patching or transition to horizontal pathways
- Partially pre-assembled from factory reduces installation time and eliminates field assembly mistakes
- UL 2416 and CSA C22.2 listed for North American telecommunications infrastructure applications
- RoHS compliant construction meets environmental regulations for electronic equipment installations
- Black finish integrates with standard rack and enclosure aesthetics
The PE2VFD1296's hybrid construction combines a welded steel backbone with injection-molded plastic cable retention fingers, delivering the structural strength needed to support heavily loaded cable bundles while providing the flexibility required for dense patch panel environments. The 12" routing channel supports approximately 200-300 Cat6A patch cords or 50-75 MPO/MTP fiber trunk assemblies depending on bend radius requirements and cable diameter. The reinforced frame design handles the static load of fully populated vertical runs without bowing or requiring mid-span support brackets. The molded plastic fingers use a D-ring profile that captures cables without creating stress points or kinks, critical when managing 28AWG copper or bend-sensitive OM4/OM5 fiber. The full-length metal door provides a clean finished appearance for client-facing installations and prevents accidental cable snags during equipment insertion or removal from adjacent rack positions.
Installation follows Panduit's modular assembly approach: the main frame ships partially assembled with the hinge mechanism, door, and mounting brackets pre-attached. Installers mount the vertical assembly to the rack frame using the included hardware, then snap the plastic finger strips into the channel slots—no cutting, drilling, or custom fabrication required. The zero-U design mounts to the outside of the rack frame's vertical rails using threaded cage nuts or square-hole hardware, leaving the internal 19" or 23" equipment mounting plane completely unobstructed. This mounting approach is essential in environments running 48-port switch blocks or high-density blade server chassis where every rack unit counts. The 15 additional vertical units above the standard 52U height accommodate overhead cable transition to ladder rack, cable tray, or horizontal wire management panels without forcing sharp 90-degree bends at the top of the rack. For environments running structured cabling to overhead pathways, this extended routing capacity prevents bend radius violations on Category 6A and fiber trunk cables that would otherwise degrade transmission performance or fail certification testing.
The PE2VFD1296 carries UL 2416 listing for telecommunications cable management and CSA C22.2 certification, meeting North American safety standards for data center and telecommunications room infrastructure. The unit is designed for use with standard EIA 19" and 23" four-post racks with 52U of vertical mounting space. RoHS compliance ensures the product meets restrictions on hazardous substances, a requirement for government, healthcare, and enterprise installations operating under environmental procurement policies. This cable manager solves the persistent problem of cable congestion in high-density network and server racks by providing dedicated vertical routing capacity that keeps patch cords organized, accessible, and protected from damage during equipment service events.
