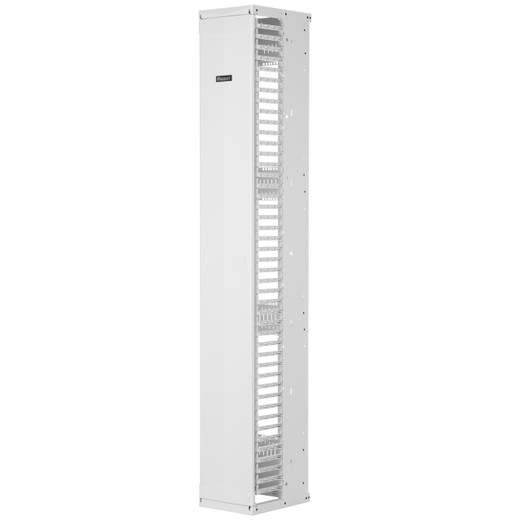

Panduit PE2VFD1096WH PatchRunner 2 Enhanced Single-Sided Vertical Cable Manager
The Panduit PE2VFD1096WH is a 52U single-sided vertical cable manager engineered for high-density datacenter and network equipment installations where zero-U mounting is required. Part of the PatchRunner 2 Enhanced family, this 10-inch-wide manager combines steel frame construction with molded plastic routing fingers and a full-length double-hinged metal door, delivering tool-free cable access across the entire vertical run. The unit ships partially assembled for rapid deployment in 19-inch and 23-inch EIA racks, and provides 52 rack units of primary routing capacity plus 12U of supplemental vertical space—ideal for structured cabling environments running Category 6A, fiber trunk assemblies, or hybrid copper-fiber backbones. White finish coordinates with modern white-on-white rack ecosystems.
Key Features
- Zero-U design mounts vertically alongside rack rails without consuming equipment space
- 52U primary height (95.9 inches / 2435.9mm) plus 12U supplemental vertical routing capacity
- 10-inch (254mm) width accommodates high-density patch cord bundles and fiber trunk cables
- Steel frame with molded plastic cable routing fingers for structured pathway management
- Full-length double-hinged metal door with snap closure for tool-free front access
- Single-sided configuration for installation on one rack vertical or between adjacent racks
- Partially pre-assembled for faster installation and reduced field labor
- UL 2416 and CSA C22.2 listed for North American structured cabling compliance
- RoHS compliant for environmentally responsible procurement
- White finish for integration with white rack and cable infrastructure
The PE2VFD1096WH's steel backbone provides structural support for heavily loaded cable bundles—critical when managing dozens of 10GBASE-T patch cords or multi-strand OM4 fiber trunks in spine-leaf network architectures. The molded plastic fingers create individual cable pathways that prevent bundle compression and maintain bend radius compliance per TIA-568 standards, reducing insertion loss on fiber links and return loss on copper. The double-hinged door opens left or right for access in tight aisle configurations, and the snap closure eliminates the need for tools during moves, adds, and changes. This single-sided design is ideal for perimeter mounting on individual racks or installation in the gap between back-to-back rack rows, where you need managed routing but can't sacrifice the zero-U real estate that traditional dual-sided managers consume.
In hyperscale datacenter builds and enterprise colocation deployments, the 52U height aligns with standard full-height cabinets, while the supplemental 12U vertical capacity handles cable slack loops, service coils, or overhead entry routing from cable tray. The 10-inch width provides clearance for high-pair-count bundles typical in top-of-rack switching deployments—up to 48 Category 6A patch cords or 24 duplex LC fiber assemblies per manager, depending on jacket diameter and routing density. The zero-U mounting strategy is especially valuable in power-constrained or thermally sensitive environments where every rack unit must be reserved for active equipment, and cable management infrastructure cannot compete for vertical space. Field crews appreciate the partially assembled design: the frame, fingers, and door pre-integrate at the factory, reducing on-site assembly to mounting hardware installation and cable loading, which cuts deployment time per rack by 30–40% compared to fully field-assembled alternatives.
UL 2416 and CSA C22.2 listings satisfy North American electrical safety and structured cabling standards for commercial occupancies, while RoHS compliance supports procurement policies in organizations with environmental sustainability mandates. The white finish integrates with modern datacenter aesthetics where white racks, cable, and containment create visual continuity and improve reflected light levels in low-ceiling spaces. For integrators deploying TIA-942 Rated-3 or Rated-4 datacenter infrastructure, the PE2VFD1096WH provides the pathway management and accessibility required to meet uptime and maintenance service-level commitments without compromising equipment capacity or thermal separation between hot and cold aisles.
