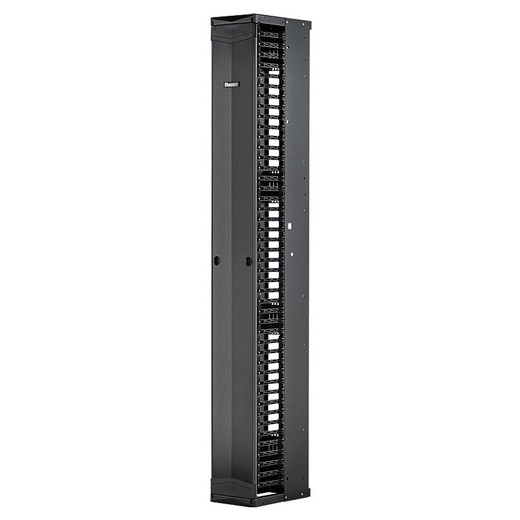

Panduit PE2VFD1096 PatchRunner 2 Enhanced 52U Vertical Cable Manager
The Panduit PE2VFD1096 delivers zero-U vertical cable routing for high-density data center and network equipment racks. This single-sided vertical manager combines a 52U working height with 12 additional vertical U-spaces, providing extended routing capacity without consuming valuable equipment mounting space. The reinforced metal backbone and molded plastic finger design handle Cat6A, fiber trunks, and power cables in environments where every rack unit counts — core switching closets, blade server installations, and converged infrastructure deployments where horizontal patch panels already consume premium front-mount real estate.
Key Features
- Zero-U vertical cable routing preserves all 52U for active equipment mounting
- 10-inch (254mm) routing width accommodates high-density bundled cable loads
- Full-length double-hinged metal door with snap closure for secure access and cable protection
- Reinforced metal structure with molded plastic fingers for reliable cable retention
- Partially pre-assembled design reduces installation time in occupied data centers
- 12 additional vertical U-spaces beyond the 52U working height for extended routing
- UL 2416 and CSA C22.2 certified for North American data center compliance
- RoHS compliant construction for environmentally regulated facilities
The PE2VFD1096's reinforced architecture addresses the structural demands of fully loaded network racks. The metal backbone supports the static and dynamic loads generated when techs pull cable bundles during adds, moves, and changes, while the double-hinged door design allows left or right access depending on rack row orientation. Molded plastic fingers provide the flexibility needed to route individual cables or small bundles without the sharp edges that damage jacketing on Category cable or fiber assemblies. The 10-inch depth creates enough working room for looped service slack and proper bend-radius management on OS2 single-mode trunks, where a 1.5-inch minimum bend radius must be maintained under load. This matters in 100G data center spine installations where a single kinked MPO trunk can cost a four-figure replacement and an emergency maintenance window.
Deployment context for the PE2VFD1096 centers on scenarios where zero-U routing solves real layout problems. In 42U racks running chassis switches or blade enclosures, the traditional approach — horizontal 1U or 2U cable managers between each device — burns 8-12U across the rack, forcing either equipment reduction or a second cabinet purchase. Zero-U vertical managers reclaim that space by routing patch cords and uplinks along the side rails. For integrators supporting multi-tenant colocation builds, this translates to higher rack utilization rates and better per-U economics. The partially pre-assembled construction further improves labor efficiency: the manager ships with the backbone and door already attached, reducing field assembly to mounting the unit to the rack rails and snapping the door hinges into final position. In occupied data centers where maintenance windows are measured in hours, not days, this cuts installation time and minimizes the risk window for cable routing errors.
The PE2VFD1096 carries UL 2416 certification, the recognized standard for data communications equipment in North American data centers, and CSA C22.2 marking for Canadian installations. RoHS compliance is required for projects subject to federal procurement regulations or corporate sustainability policies that restrict hazardous materials. The double-hinged door design with snap closure provides physical cable protection in access-controlled environments where cleaning staff or junior techs may inadvertently contact exposed cabling, and the single-sided configuration fits installations where only one side of the rack is accessible — such as units positioned against walls or in hot-aisle containment rows. For integrators specifying Panduit's copper and fiber infrastructure end-to-end, the PatchRunner 2 Enhanced series maintains aesthetic and mechanical consistency with Panduit patch panels, horizontal managers, and structured cabling components, simplifying procurement and ensuring compatible mounting hole patterns across the entire installation.
