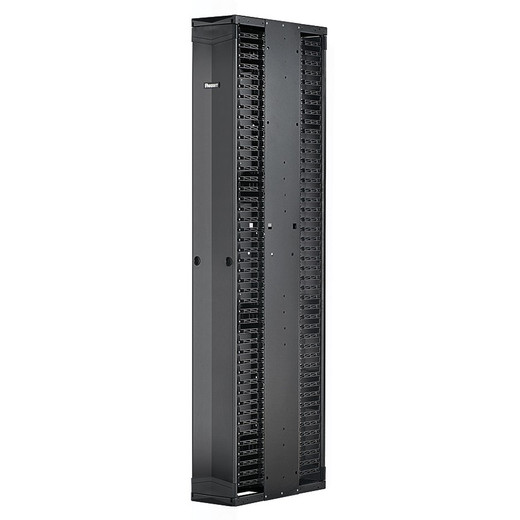

Panduit PE2VD0696 PatchRunner 2 Enhanced Dual-Sided Vertical Cable Manager
The Panduit PE2VD0696 is a 52U dual-sided vertical cable manager engineered for high-density data center and telecom applications where zero-U cable management is critical. This PatchRunner 2 Enhanced model combines a 6-inch (152.4mm) width with dual-sided routing capacity, providing structured pathways for copper and fiber patch cords without consuming valuable rack-mount space. Pre-assembled construction accelerates deployment in new builds and retrofit scenarios where installation windows are tight. Designed for standard 19-inch and 23-inch EIA racks, the PE2VD0696 addresses the challenge of managing hundreds of patch cords in environments where every rack unit counts—network aggregation racks, core switch installations, and high-port-count fiber distribution frames.
Key Features
- 52U vertical cable management with 6U additional vertical space for top-of-rack routing
- Zero-U design mounts alongside rack rails—consumes no equipment mounting space
- Dual-sided routing with independent front and rear cable pathways
- 6-inch (152.4mm) width accommodates high-density patch cord volumes
- Metal frame construction with molded plastic cable fingers for durability under load
- Two full-length hinged metal doors with snap closure for access without disassembly
- Pre-assembled design reduces installation time to under 30 minutes per unit
- Compatible with standard 19-inch and 23-inch EIA racks (52U height requirement)
- RoHS compliant for environmental regulation adherence
The PE2VD0696 architecture addresses a fundamental challenge in modern rack design: maintaining structured cable routing as port density increases. Traditional cable managers either consume rack units (reducing equipment capacity) or rely on shallow side channels that overflow when patch cord counts exceed 100 per side. Panduit's PatchRunner 2 Enhanced design solves both problems with a zero-U footprint that mounts to the rack's vertical mounting channels, leaving all 52U available for active equipment. The 6-inch depth provides sufficient capacity for Cat5e through Cat8 copper cables, OM3/OM4/OM5 fiber patch cords, and mixed-media environments typical in converged infrastructure deployments. The dual-sided configuration means each manager can handle front-panel patching (user-facing connections) and rear-panel feeds (trunk lines to distribution) independently, eliminating cable crossover and the resulting service loops that plague single-sided designs. The metal frame supports the full weight of loaded cable bundles—critical when a single manager may carry 200+ patch cords representing 30+ pounds of suspended weight. Molded plastic fingers provide the actual cable retention, offering enough grip to prevent sag while allowing technicians to add or remove individual cables without tools. This combination of metal structural support and plastic contact surfaces has proven more durable than all-plastic managers in environments where cables are frequently moved during MAC (Moves, Adds, Changes) work.
Deployment context matters significantly with vertical cable managers. The PE2VD0696 fits scenarios where rack space is at a premium: colocation cabinets billed per-U, network cores with blade chassis consuming 20-40U each, and SAN fabrics where every rack unit is allocated to storage controllers or switches. The 52U height matches standard data center rack dimensions, while the included 6U of additional vertical space extends above the top equipment rail to route cables into overhead ladder rack or down into a neighboring cabinet. This top extension eliminates the sharp 180-degree bend that occurs when cables exit a manager at the same height as the top switch, reducing insertion loss and preventing kink-related failures on bend-sensitive OM4/OM5 fiber. The hinged metal doors are the operational differentiator: in a production environment, you can open one side to access a specific cable bundle, trace a connection, or add a new patch cord without removing the entire manager or disturbing cables on the opposite side. The snap closure means no loose hardware—the door stays shut under normal conditions but opens with hand pressure when needed. For installation, the pre-assembled design ships as a single unit with doors, fingers, and frame already integrated; mounting requires only attaching the included brackets to the rack's vertical holes, lifting the manager into place, and securing with four bolts per side. This compresses installation from the 60-90 minutes typical of field-assembled managers to under 30 minutes, which matters when you're outfitting a 20-rack data center and every hour saved is billable time returned.
The PE2VD0696 meets RoHS compliance requirements for installations in the EU and other jurisdictions with restricted-substance regulations. The black finish matches standard rack aesthetics and hides the inevitable scuff marks and dust accumulation that occur in active data centers. This manager is specifically sized for racks housing 40-52U of active equipment—typically full-height network cores, storage arrays, or dense server deployments. If your environment involves 100+ patch cords per rack, requires independent front/rear cable routing, and operates under space constraints where giving up even 2U for a horizontal manager is unacceptable, the PE2VD0696's zero-U dual-sided design delivers the capacity and access you need without sacrificing equipment real estate.
