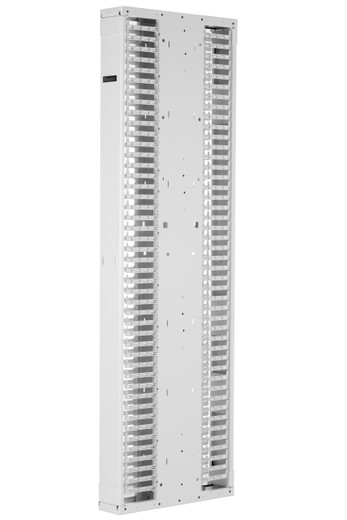

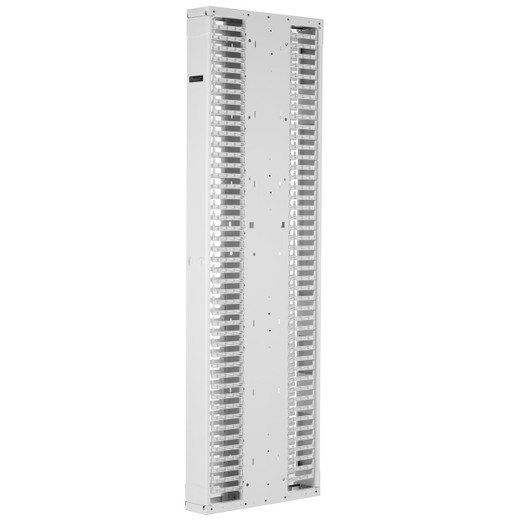

Panduit PE2VD0896WH PatchRunner 2 Dual-Sided Vertical Cable Manager
The Panduit PE2VD0896WH is a 52U dual-sided vertical cable manager engineered for high-density patching environments where rack space is at a premium. Part of the PatchRunner 2 Enhanced family, this zero-U design preserves all 42U or 45U rack positions for active equipment while providing 8 inches of cable routing capacity on each side. The unit arrives partially pre-assembled to accelerate deployment in enterprise data centers, colocation facilities, and high-density network closets. Metal construction with molded plastic cable fingers and full-length hinged metal doors deliver both durability and professional aesthetics in a white finish that integrates with standard rack infrastructure.
Key Features
- Dual-sided zero-U design — mounts vertically alongside rack without consuming equipment space
- 52U height with 9U additional vertical routing capacity for overhead cable management
- 8-inch (203.2mm) width per side accommodates high-density fiber and copper patching
- Metal frame construction with molded plastic fingers for durability and cable protection
- Full-length double-hinged metal doors with snap closure secure cables and maintain clean appearance
- Pre-assembled design reduces installation time and field assembly errors
- White powder-coat finish matches common rack and enclosure color schemes
- Compatible with standard 19-inch and 23-inch EIA racks (48cm/58cm mounting)
- RoHS compliant for environmentally responsible deployments
High-density patching creates cable management challenges that directly impact airflow, serviceability, and mean time to repair. The PE2VD0896WH addresses these issues through a dual-sided architecture that physically separates inbound and outbound cables or divides patch cabling by function (data vs. voice, production vs. management). The 8-inch routing depth on each side handles the cable volumes typical of 10GbE copper, 25/40/100GbE fiber, and hybrid copper-fiber deployments without cable compression that degrades bend radius compliance. The zero-U mounting strategy is critical in environments where every rack unit must house revenue-generating or mission-critical equipment — the manager installs vertically on the sides of the rack frame, leaving the full 42U or 45U height available for switches, servers, storage arrays, and patch panels.
The dual-hinged metal doors serve both operational and aesthetic purposes. During installation or reconfiguration, doors swing open from either side for full access to the cable fingers without removing the entire door assembly. Once patching is complete, the snap-closure mechanism secures doors flush against the frame, protecting cables from accidental contact during adjacent rack work and presenting a clean, finished appearance that meets the visual standards of client-facing colocation spaces or executive-floor network rooms. The molded plastic fingers are designed with rounded edges to prevent jacket abrasion on Category 6A, fiber trunk cables, and high-pair-count bundles during moves, adds, and changes. The metal frame construction supports the weight of fully loaded cable runs without sagging or deformation, a common failure mode in lighter-duty plastic-only managers.
The 52U height aligns with full-height 45U and 42U racks, with an additional 9U of vertical routing capacity extending above the top of the rack for overhead cable pathways to adjacent cabinets or overhead ladder rack. This extended height is essential in row-based architectures where horizontal cable routing occurs above the rack plane. Installers working in TIA-942 data center environments or BICSI TDMM-compliant network rooms will find the white finish matches the most common rack color in these spaces, avoiding the visual inconsistency of black cable managers in white rack infrastructure. The unit ships as a single-package assembly with minimal field installation steps — mount the vertical rails to the rack frame, snap the finger assemblies into place, and hang the doors. This pre-assembly reduces the 2–3 hour installation time typical of fully knocked-down cable management systems to under 45 minutes for a two-person team, a significant labor savings on multi-rack projects where 8 to 12 cabinets require simultaneous outfitting.
