Panduit PE2VD0896 PatchRunner 2 Enhanced Dual-Sided Vertical Cable Manager

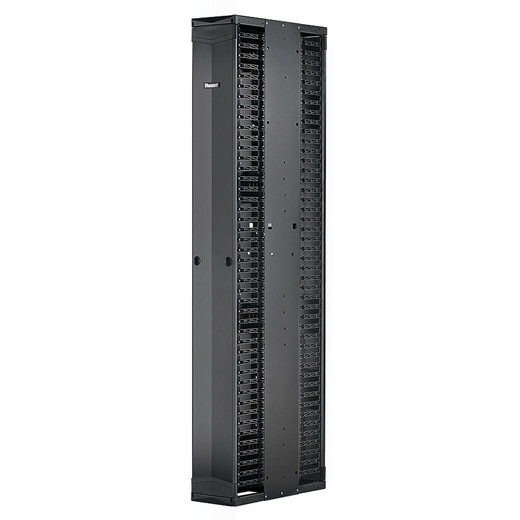

The Panduit PE2VD0896 solves high-density rack cable management with a zero-U dual-sided design that routes front and rear connections without consuming valuable rack space. This 52U vertical cable manager delivers 8 inches of cable pathway capacity on each side, handling the routing demands of fully populated server racks, switch stacks, and patch panel arrays while maintaining structured pathway separation. The metal frame construction and hinged door access enable maintenance techs to dress cables, add circuits, or troubleshoot connections without removing the manager or disturbing adjacent equipment.
Key Features
- Dual-sided zero-U design — routes cables on front and rear faces without consuming rack-mount space
- 52U height with 9U additional vertical capacity for extended routing and service loops
- 8-inch (203.2 mm) pathway width on each side accommodates high-density copper and fiber bundles
- Metal frame with molded plastic fingers — durable structure with bend-radius protection
- Two full-length hinged metal doors with snap closure for tool-less access during moves/adds/changes
- Pre-assembled design enables single-installer deployment with minimal prep time
- Black finish integrates with standard rack aesthetics in datacenter and network closet installations
- RoHS compliant materials meet environmental procurement requirements
This PatchRunner 2 Enhanced manager is engineered for 19-inch EIA racks and delivers the cable capacity needed for 10G/40G switch deployments, high-port-count patch panels, and multi-chassis storage arrays. The zero-U mounting approach preserves all 52U of rack space for active equipment while the dual-sided pathway separates inbound feeds from cross-connects or isolates power from data runs. The 8-inch depth handles typical Cat6A bundles, OM3/OM4 fiber trunks, and mixed-media deployments without pathway congestion. Installers working under TIA-568 or BICSI standards will find the plastic fingers maintain the 1-inch minimum bend radius for Cat6A and the 30 mm radius for fiber, preventing insertion loss from kinked cables during dense builds.
The hinged metal doors swing open on both sides for full-width access during dressing and labeling, then snap closed to contain cables and maintain a clean rack presentation. This access model supports MACs without removing tie-wraps or pulling the entire manager — a tech can open the door, route the new circuit, and close in minutes. The pre-assembled construction ships with frame, fingers, and doors already attached; you mount the manager to the rack rails and start routing cables immediately, cutting deployment time compared to field-assembled wire-basket or J-hook alternatives. The 95.9-inch overall height provides 9U of extra vertical length beyond the standard 52U rack height, giving cable dressers the service-loop space needed to terminate at any U position without forcing sharp bends at the top or bottom of the run.
The PE2VD0896 fits 19-inch racks and is compatible with Panduit's broader cable management ecosystem, including horizontal managers, pass-through panels, and fiber enclosures. Installations in HIPAA-regulated healthcare facilities, PCI-DSS datacenter environments, or high-availability telecom hubs rely on this manager to maintain pathway separation, reduce troubleshooting time, and support audit-trail documentation of structured cabling infrastructure. RoHS compliance satisfies federal and state environmental procurement policies for equipment deployed in government networks and public-sector datacenters. Manufacturer Warranty.
