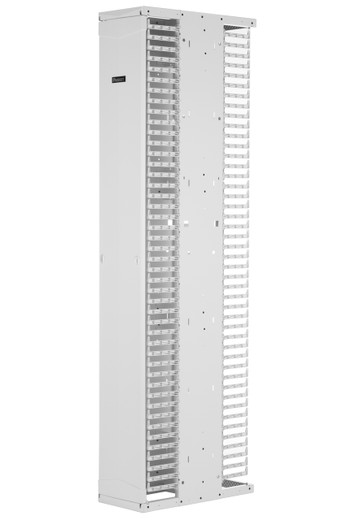

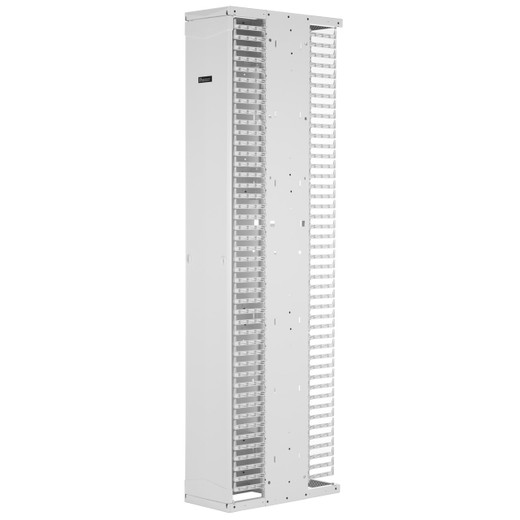

Panduit PE2VSD1096WH PatchRunner 2 Enhanced Vertical Cable Manager
The Panduit PE2VSD1096WH is a dual-sided vertical cable manager engineered for high-density rack deployments where zero-U patching and efficient cable routing are critical. Built on the PatchRunner 2 Enhanced platform, this 52U manager combines a reinforced metal frame with molded plastic fingers and a full-length hinged door to handle the cable loads typical of modern surveillance NVR racks, access-control server cabinets, and converged IT infrastructure. The 10-inch width accommodates substantial bundle volumes while the dual-sided design lets you segregate power from data or separate inbound trunk feeds from horizontal patch runs—reducing crosstalk risk and simplifying MACs in live production environments.
Key Features
- Dual-sided vertical design with 52U capacity plus 12U additional vertical routing space
- Zero-U patching architecture—mounts between racks or to the side, preserving all 42U/45U/52U of usable equipment space
- Metal frame construction with molded plastic cable-retention fingers for durability under continuous adds/moves/changes
- Full-length hinged metal door with snap closure—secures cables during transport, opens for service without disassembly
- Partially pre-assembled—reduces on-site labor and accelerates deployment in multi-rack projects
- 10-inch (254 mm) width handles high bundle counts from 48-port PoE switches, fiber patch panels, and trunk uplinks
- Compatible with standard EIA 19-inch and 23-inch racks (48 cm/58 cm)
- RoHS compliant for installations subject to environmental procurement standards
The PE2VSD1096WH uses a hybrid construction: a welded or formed metal backbone provides structural rigidity and grounding continuity, while the cable-retention fingers are molded from impact-resistant plastic that won't abrade jacket insulation during repeated cable pulls. The dual-sided layout is particularly effective in surveillance and access-control installations where you need to keep low-voltage control wiring (door strikes, REX sensors, card readers) physically separated from PoE camera trunk cables or fiber uplinks. Each side presents independent routing channels, so you can dedicate one face to horizontal patch cords from switch to patch panel and the other to vertical riser bundles or out-of-band management links. The full-length door latches with a snap mechanism—no screws or tools required—and swings open on a continuous hinge, giving you immediate access to the entire cable run when you need to add a new circuit or troubleshoot a failed link. During rack relocation or seismic events, the closed door prevents cables from spilling out and snagging on adjacent equipment.
Panduit ships this manager partially assembled: the metal frame and door arrive as a single unit, and the plastic finger strips snap or slide into place without requiring a full toolkit. This design choice cuts installation time by roughly half compared to field-assembly models and ensures consistent build quality across multi-site deployments—critical when you're rolling out standardized rack configurations for a hospital campus, school district, or retail chain. The 52U height matches common full-height rack enclosures, and the additional 12U of vertical routing space (often located at the top or bottom of the frame) gives you overflow capacity for trunk cables entering from overhead cable tray or underfloor conduit. The 10-inch width is a middle ground: wider than economy 6-inch managers (which bottleneck on 48-port switch deployments) but narrower than 12-inch models that consume excessive aisle space in dense row layouts. For zero-U mounting, you'll typically install this manager in the gap between two adjacent racks or secure it to the side of a single rack using the manufacturer's recommended mounting hardware; either approach keeps the manager outside the EIA-310 mounting plane, preserving every RU for active gear.
RoHS compliance ensures this product meets EU and California restrictions on lead, mercury, cadmium, and other hazardous substances—important for government, healthcare, and multinational enterprise projects with environmental procurement mandates. The white finish coordinates with Panduit's broader lineup of rack accessories and provides a clean appearance in customer-facing equipment rooms or NOC environments where aesthetics matter. When you're managing a rack stack that includes 48-port PoE switches feeding 200+ cameras, fiber uplinks to the core, and out-of-band KVM or IPMI connections, the PE2VSD1096WH gives you the capacity, separation, and access speed required to maintain uptime and meet your SLA commitments.
