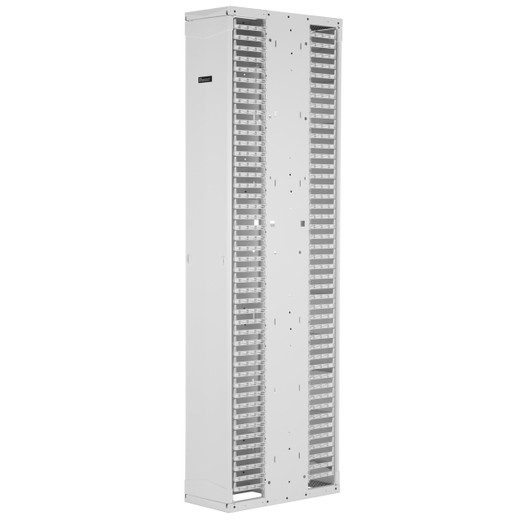

Panduit PE2VD10WH Double-Sided Vertical Cable Manager
The Panduit PE2VD10WH is a 45U, 10-inch-wide double-sided vertical cable manager from the enhanced Panduit PatchRunner 2 family. Designed for high-density data center and enterprise structured cabling environments, it combines a zero-U patching characteristic with a partially pre-assembled structure — so you spend less time on installation and more time on cable routing. If you're working in 48 cm or 58 cm EIA racks and need front-and-rear cable organization with proper door containment, this is the unit to specify.
Overview
Vertical cable managers are often an afterthought — ordered last, installed fast. The PE2VD10WH pushes back on that. At 83.9 inches tall (2,131 mm) and 10 inches wide, it spans the full height of a standard 45U rack enclosure and adds 12U of vertical space above the rack rail height, giving you room to manage patch cord slack and horizontal runs without jamming cables into the raceway. The double-sided design means you're handling both front and rear cable routing in a single unit — critical in high-density deployments where rear-side cabling is just as dense as the front.
For integrators managing structured cabling in multi-rack rows, the white (Blanc) color finish helps with visual identification against darker enclosures and simplifies rack documentation photography — a small but real operational benefit when you're managing dozens of panels.
Key Features
- 45U Full-Height Coverage Plus 12U Bonus: At 83.9 inches, the PE2VD10WH covers a full 45U rack and extends an additional 12U above rail height — giving you a dedicated buffer zone for slack management and overhead routing without bending cables at sharp angles.
- 10-Inch Width for Dense Patch Environments: The 10-inch channel accommodates high-count patch cord bundles without compression. In a 48-port-per-U patching environment, narrow cable managers become bottlenecks; the 10-inch profile keeps bend radius compliant even at peak fill.
- Zero-U Patching Characteristic: The PatchRunner 2 platform's zero-U design means patch panels can be positioned at the cable manager without consuming rack unit space for the manager itself — every U stays available for active equipment. Meaningful when you're configuring a 45U cabinet and need every slot.
- Metal Frame with Molded Plastic Finger Strips: The combination of steel structure and injection-molded routing fingers gives you a rigid backbone that won't flex under heavy cable loading, while the plastic fingers protect jacket insulation during routing and re-routing. All-metal finger strips would be harder on cable jackets in maintenance scenarios.
- Dual Full-Length Double-Hinged Doors with Snap Closure: Both front and rear doors run the full 83.9-inch height of the unit and use a double-hinge design — they swing open and stay open without tools or props, which matters when you're working inside a live rack. Snap closure secures them cleanly without latches that can snag cable jackets.
- Partial Pre-Assembly at Factory: The unit ships partially assembled, reducing on-site labor for initial installation. In data center deployments where rack buildouts happen in batches, pre-assembly at the factory translates directly to faster rack commissioning.
- RoHS Compliant: Meets RoHS (Restriction of Hazardous Substances) requirements — relevant for deployments in regulated environments, government facilities, and any project with environmental compliance documentation requirements.
- Compatible with 48 cm and 58 cm EIA Racks: The PE2VD10WH is specified for use with standard 19-inch EIA racks in both 480 mm and 580 mm depth configurations — covering the two most common rack depths in enterprise and data center deployments. No custom brackets or adapters required for standard-depth cabinets.
Integration & Compatibility
The PE2VD10WH is designed for EIA-standard 19-inch open-frame and enclosed racks at 48 cm and 58 cm depths. It integrates with Panduit's broader PatchRunner 2 ecosystem, which includes horizontal cable managers, patch panels, and rack accessories designed around the same zero-U patching architecture. White finish units are typically specified in environments where rack rows are visually documented or where mixed-vendor cabinets use color coding for cable plant identification. Single-unit packaging means per-rack ordering is straightforward — no partial-case minimums to manage.
Frequently Asked Questions
Q: What rack depths is the PE2VD10WH compatible with?
A: The PE2VD10WH is specified for use with 48 cm (approximately 19-inch) and 58 cm EIA-standard racks at 45U height. No additional adapters are required for these standard rack depths.
Q: What is the overall height of the PE2VD10WH?
A: The unit measures 83.9 inches (2,131.1 mm) in overall height. This covers the full 45U rack rail height plus an additional 12U of vertical space above the rail for slack and overhead routing management.
Q: Does the PE2VD10WH meet any environmental compliance standards?
A: Yes, the PE2VD10WH is RoHS compliant, meeting the Restriction of Hazardous Substances directive. This is relevant for regulated environments and projects requiring environmental compliance documentation.
Q: Is the PE2VD10WH sold individually or in a multi-pack?
A: The PE2VD10WH has a package quantity of 1 — it is sold as a single unit, which simplifies per-rack ordering without requiring case-quantity purchases.
Q: What is the door design on the PE2VD10WH?
A: The unit includes two full-length metal doors with a double-hinge design and snap closure. Doors run the full 83.9-inch height of the manager and open and stay open without tools, which is useful when working inside a live rack.
Q: What sub-brand or product family does the PE2VD10WH belong to?
A: The PE2VD10WH is part of the enhanced PatchRunner 2 (PatchRunner™ 2 amélioré) family from Panduit, which is designed around a zero-U patching architecture for high-density structured cabling environments.
The PE2VD10WH is the unit I specify when a rack buildout is genuinely dense — not just 24 ports per U, but full 48-port patch panels stacked across a 45U cabinet with rear-side structured cabling running simultaneously. The 10-inch channel width is the spec that matters most here: I've seen integrators spec a narrower manager, fill it to 60% capacity, and immediately lose compliant bend radius on Cat6A. At 10 inches, you have real headroom before compression becomes a problem.
Technical Highlights:
- 83.9-Inch Full-Height Coverage: Spans the complete 45U rack height plus 12U above the rail — that bonus vertical space is where horizontal slack and overhead bundle transitions actually go, keeping the channel itself from overfilling at the top.
- Double-Hinged Full-Length Doors: Both doors run the full 83.9 inches and stay open without any prop or latch — a small spec with a real impact during moves-adds-changes in a live environment. You're not holding a door open with one hand while routing with the other.
- RoHS Compliance: Documented compliance with the Restriction of Hazardous Substances directive ships with the unit — relevant for federal, healthcare, and education projects where environmental compliance documentation is a contract deliverable, not an optional extra.
Deployment Considerations:
- Verify your rack is one of the two supported depths — 48 cm or 58 cm EIA-standard — before ordering. The PE2VD10WH is not listed for non-standard or open-frame two-post configurations, and forcing a fit on an incompatible rack defeats the structural benefit of the metal frame.
- White finish is the only color available in this configuration. If your rack row uses black enclosures and you're working under low-light conditions during installation, the white finish actually improves visibility of cable routing — but check your site's color standardization policy if rack aesthetics are a project requirement.
The PE2VD10WH is the right call for enterprise MDF/IDF buildouts where a 45U cabinet will be patched to near-full capacity and the rear cabling is as important as the front. It's not the choice for a lightweight 12U wall-mount deployment — the 83.9-inch height and double-sided mass are designed for full-height floor-standing cabinets where long-term cable plant management is the priority.
