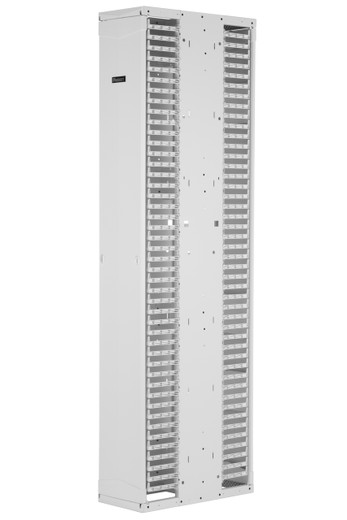

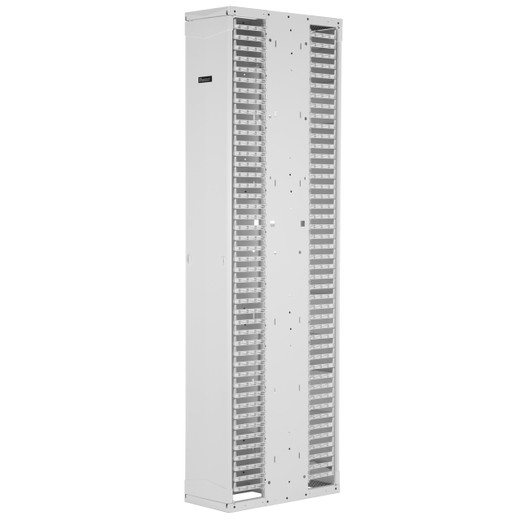

Panduit PE2VD1096WH Vertical Double-Sided Cable Manager — PatchRunner 2 Enhanced, 52U, 10-Inch Wide
Overview
The Panduit PE2VD1096WH is a 52U, 10-inch-wide vertical double-sided cable manager from the Panduit PatchRunner 2 Enhanced line — built for high-density structured cabling environments where cable routing discipline directly affects airflow, port accessibility, and long-term maintenance overhead. At 95.9 inches tall (2,435.9 mm), this manager spans a full 52U rack plus an additional 12U of vertical bonus routing space, giving you headroom for cable slack loops and service loops without crowding the adjacent rack units.
This is not a lightweight plastic trough. The PE2VD1096WH uses a metal frame combined with molded plastic routing fingers on both faces, two full-length double-hinged metal doors with snap-close latches, and arrives partially pre-assembled to cut installation time on the data center floor. Compatible with standard 19-inch (48 cm) and 23-inch (58 cm) EIA racks, it drops into most existing rack infrastructures without modification. It meets RoHS compliance requirements — relevant for facilities with environmental purchasing mandates.
If you are building or expanding a high-density vertical cable management infrastructure for a structured cabling backbone, the PE2VD1096WH is sized for environments where a single vertical manager must handle trunk cable runs, patch cord slack, and power routing simultaneously without becoming a maintenance bottleneck.
Key Features
- 52U + 12U Bonus Routing Capacity (95.9" total height): The 52U primary routing zone plus 12 additional U of vertical space gives you room for cable service loops, slack management, and label clearance that a strict 52U design would eliminate. On a fully populated 52U rack, that slack space prevents cable strain at patch panel ports — a common source of intermittent link errors in high-density deployments.
- 10-Inch (254 mm) Width: The wider-than-standard 10-inch channel accommodates high-density trunk bundle runs — fiber trunks, Cat6A, or shielded cabling — that would compress and exceed bend radius in a narrower 6- or 8-inch manager. If your rack rows carry Category 6A horizontal runs or high-count fiber trunks, this width prevents bend radius violations at the vertical transition.
- Double-Sided Routing (Dual-Face Design): Both front and rear cable access faces mean you can route front-of-rack patch cord slack on one side and rear structured cabling on the other, keeping patch moves isolated from backbone runs. This is the difference between a 20-minute MAC (move/add/change) and a 90-minute one in a dense environment.
- Full-Length Double-Hinged Metal Doors with Snap Closure: Metal doors — not plastic — hold up to repeated open/close cycles during MACs without warping or hinge fatigue. The snap closure keeps doors seated under vibration (common near CRAC units and raised-floor airflow vents), preventing doors from hanging open and disrupting hot-aisle/cold-aisle separation.
- Metal Frame with Molded Plastic Routing Fingers: The combination of a rigid metal frame and flexible plastic fingers is intentional — the frame maintains dimensional stability across temperature swings while plastic fingers provide cable grip without crush damage to jacket insulation. An all-plastic design warps; an all-metal design risks jacket abrasion.
- Partially Pre-Assembled: Pre-assembly reduces on-site labor. On a large data center build or refresh where dozens of vertical managers are being installed simultaneously, shaving 15–20 minutes per unit per technician is measurable — particularly when working with contractors billed hourly.
- EIA 48 cm / 58 cm Rack Compatibility: Works with both standard 19-inch and 23-inch rack footprints — useful in mixed-vendor rack environments where older 23-inch telco-style racks sit alongside modern 19-inch IT racks in the same row.
- RoHS Compliant: Meets the EU Restriction of Hazardous Substances directive. For facilities with LEED certification targets, government procurement requirements, or sustainability reporting obligations, RoHS compliance is a checkbox requirement — the PE2VD1096WH satisfies it out of the box.
- White Colorway: The white finish is relevant in environments where rack color coding is used for zone identification (e.g., white = structured cabling/network, black = power). Ordering the wrong color on a large build creates visual noise that defeats the purpose of color discipline.
Integration & Compatibility
The PE2VD1096WH is designed for use with 48 cm (19-inch) and 58 cm (23-inch) EIA-standard open-frame and enclosed racks. It integrates into Panduit's broader PatchRunner 2 ecosystem, which includes horizontal cable managers, patch panels, and rack accessories — relevant if you're standardizing on a single-vendor structured cabling architecture for warranty and support consistency. For cable management planning in high-density switching environments, pair this vertical manager with horizontal 1U or 2U cable managers at each patch panel level to maintain individual run bend radius compliance. The 10-inch width accommodates high-count fiber trunk cassettes and high-density copper patch panels simultaneously without requiring a second manager alongside.
Frequently Asked Questions
Q: What rack sizes is the PE2VD1096WH compatible with?
A: The PE2VD1096WH is designed for use with 48 cm (19-inch) and 58 cm (23-inch) EIA-standard racks. It fits both open-frame and enclosed rack configurations that meet EIA mounting standards.
Q: What is the actual installed height of the PE2VD1096WH?
A: The overall height is 95.9 inches (2,435.9 mm). This encompasses the 52U primary routing zone plus an additional 12U of vertical routing space above the standard rack height, providing extra room for cable slack and service loops.
Q: Is the PE2VD1096WH pre-assembled or does it require full on-site assembly?
A: It arrives partially pre-assembled, which reduces on-site installation labor compared to fully unassembled units. Final rack mounting and door attachment are still required on-site.
Q: Does the PE2VD1096WH meet any environmental compliance standards?
A: Yes — the PE2VD1096WH is RoHS compliant (Restriction of Hazardous Substances), satisfying EU environmental directives and supporting sustainability or government procurement requirements.
Q: What is the channel width of the PE2VD1096WH, and why does it matter?
A: The cable channel is 10 inches (254 mm) wide. This wider profile accommodates high-density cabling runs — including Cat6A bundles and high-count fiber trunks — without violating minimum bend radius requirements, which is a concern with narrower 6- or 8-inch managers in dense deployments.
Q: What type of doors does the PE2VD1096WH include?
A: Two full-length, double-hinged metal doors with snap-close latches. The metal construction resists warping and hinge fatigue from repeated access cycles, and the snap closure keeps doors seated to maintain hot-aisle/cold-aisle airflow discipline.
The PE2VD1096WH is one of those products where the spec that matters most is the one buyers gloss over: the 12U of bonus vertical routing space above the standard 52U zone. In high-density rows where every U counts, that extra 12U is where service loop discipline actually lives — without it, you're draping slack across the top of the rack or zip-tying it to the frame, and that's a maintenance problem waiting to happen during the next MAC cycle.
Technical Highlights:
- 95.9-inch total height (52U + 12U bonus): Full-height coverage of a 52U rack plus overflow routing space — slack loops, label clearance, and cable entry transitions all land here without eating rack units.
- 10-inch (254 mm) channel width: Wide enough for mixed high-density runs — Cat6A horizontal bundles alongside 24-strand fiber trunks — without stacking bend radius violations that cause intermittent link errors under load.
- Full-length double-hinged metal doors: Metal over plastic is the right call for a unit that will be opened and closed hundreds of times over its service life. Snap closure matters in raised-floor environments where CRAC airflow can push lightweight plastic doors open and compromise containment.
Deployment Considerations:
- Verify your rack's EIA rail spacing before ordering — the PE2VD1096WH targets 48 cm (19-inch) and 58 cm (23-inch) EIA frames; non-EIA open frames may require adapter brackets not included with this unit.
- At 95.9 inches installed height, ceiling clearance above the rack row is a real constraint — measure top-of-rack to ceiling before specifying this manager in low-ceiling MDF or IDF closets.
This manager is the right call for a purpose-built colocation or enterprise data center row where 52U racks are fully populated with high-density patch panels and trunk cassettes, and where MAC frequency justifies the investment in a metal-door, dual-access vertical manager over a simpler single-sided trough.
