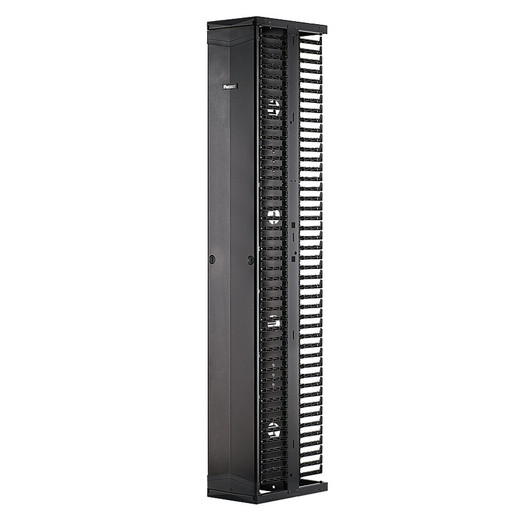

Panduit PR2VSD0896 PatchRunner 2 Vertical Dual-Sided Cable Manager
The Panduit PR2VSD0896 delivers ultra-high-density cable management in space-constrained datacenters and network closets. This 52 RU dual-sided vertical manager uses an 8-inch footprint to route hundreds of patch cords without consuming additional floor space, freeing up valuable rack positions for active equipment. The fully pre-assembled construction eliminates field assembly time—mount the unit, load cables, and close the hinged door. For integrators managing 10G/25G/40G leaf-spine fabrics or high-port-count access switches, this manager maintains service loops and separation while keeping both sides of the rack accessible.
Key Features
- Dual-sided design with metal backbone and molded plastic cable fingers supports independent left/right cable routing without cross-interference
- Pre-assembled construction ships fully integrated—no field assembly of finger sections, no hardware kits, ready to mount in minutes
- 52 RU vertical capacity (95.88" height) matches full-height 42U or 45U cabinets with top/bottom service clearance
- 8-inch width (203.2 mm) provides ample finger depth for Cat 6A and fiber patch cords while minimizing rack footprint
- Full-length metal dual-hinging door with push-to-close latching keeps cables concealed and protected during maintenance; swing left or right for access
- Black powder-coat finish integrates with NetShelter, Flex Fusion, SmartRack, and other standard 19"/23" EIA racks
- UL 2416 and CSA C22.2 listed for low-voltage equipment enclosures—required for inspected datacenter and telecommunications installations
- RoHS compliant per EU Directive 2011/65/EU and amendments
The PR2VSD0896 architecture combines a structural steel backbone with injection-molded plastic fingers to balance rigidity and flexibility. The central spine mounts to standard rack rails via cage nuts or threaded holes, carrying the load of fully populated cable bundles without deflection. Fingers are spaced at 1 RU intervals and form a D-ring profile—cables route behind the fingers, held in place by the natural spring tension of the plastic. This eliminates the need for Velcro straps or tie-wraps during adds/moves/changes; pull a cable forward past the finger to remove it, press it back to secure it. The dual-sided architecture presents fingers on both the front and rear faces, allowing independent routing for two separate cable planes. In a typical leaf-spine deployment, front fingers manage northbound links to aggregation switches while rear fingers handle southbound server or storage connections. Each side operates independently—no shared channels or cross-routing.
The full-length metal door spans all 52 RU and hinges from either the left or right edge depending on aisle access requirements. Push-to-close latching engages automatically when the door contacts the frame; no separate latch handle to operate during hurried maintenance windows. The dual-hinging mechanism allows the door to swing 180 degrees in either direction, so a left-hinged door can still open fully even when adjacent racks limit clearance on one side. Door removal is tool-free via hinge pins—lift the door off during initial cable loading, then reinstall once the bulk of patch cords are dressed. The perforated metal construction maintains airflow and allows visual inspection of cable fill without opening the door. For installations requiring complete concealment (secure facilities, client-facing NOCs), the solid door panel prevents line-of-sight identification of specific connections.
Deploy the PR2VSD0896 in datacenter row builds where every RU counts toward compute or switching density. A single manager supports 200+ Cat 6A patch cords or 400+ LC duplex fiber jumpers depending on bundling and service-loop requirements. For Cisco Nexus 9300-series or Arista 7000-series top-of-rack switches with 48–96 ports, mount one manager per rack to handle all access-layer patching without blocking exhaust airflow or obstructing cable arms on adjacent equipment. In network refresh projects replacing 1G copper with 10G/25G fiber, the 8-inch depth accommodates the larger bend radius and duplex LC connector bodies without forcing cables into sharp turns. Install managers on both sides of a two-post relay rack for bidirectional cable routing in cross-connect applications, or use a single manager on one side of a four-post cabinet to keep the opposite side clear for equipment with rear-access service doors.
The pre-assembled design reduces installation labor by 60–75 percent compared to field-assembled finger duct systems. A two-person crew can mount, level, and secure the PR2VSD0896 in under 15 minutes using standard rack-mounting hardware. The unit ships with mounting brackets and cage nuts included; no separate accessory kit required. UL 2416 and CSA C22.2 certification ensures compliance with NFPA 70 (NEC) Article 800 and Canadian Electrical Code Part I for low-voltage cabling systems in occupied buildings—critical for inspected installations in hospitals, schools, government facilities, and multi-tenant datacenters. RoHS compliance satisfies EU procurement requirements for large-scale international deployments. The PatchRunner 2 family integrates with Panduit's structured cabling ecosystem including Pre-Term fiber trunks, copper patch panels, and horizontal cable management—specify matching components for a complete validated system with unified warranty and support.
