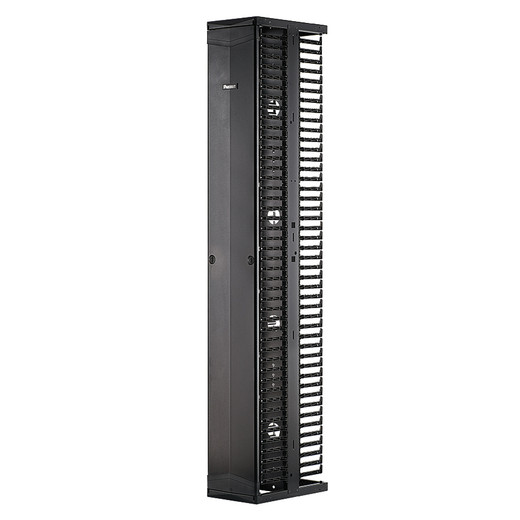

Panduit PR2VSD1296 PatchRunner 2 Vertical Dual-Sided Cable Manager
The Panduit PR2VSD1296 is a 52RU dual-sided vertical cable manager engineered for ultra-high-density rack environments where floor space is at a premium and cable volume demands professional pathway management. Built on the PatchRunner 2 platform, this 12-inch-wide manager delivers dual-sided routing capacity with a metal backbone, molded plastic fingers, and a full-length dual-hinging metal door that closes with a push-to-lock mechanism. Ships fully pre-assembled to eliminate field labor and reduce deployment costs in multi-rack datacenter builds, network operations centers, and enterprise IDF/MDF installations.
Key Features
- 52 rack unit vertical span accommodates full-height 19" and 23" EIA racks without consuming additional floor footprint
- Dual-sided design routes cables on both front and rear faces, doubling usable pathway capacity per linear inch of rack space
- 12-inch width provides generous bend-radius clearance for Cat6A, fiber trunk assemblies, and high-count copper bundles without exceeding performance specifications
- Metal backbone construction with integrated molded plastic fingers combines structural rigidity with flexible cable retention that won't pinch or kink jacket materials
- Full-length dual-hinging metal door opens left or right for unrestricted access during moves, adds, and changes; push-to-close latching eliminates separate fasteners
- Factory-assembled unit ships ready to mount, cutting installation time from hours to minutes and eliminating on-site assembly errors
- Black powder-coat finish integrates visually with standard rack infrastructure and resists corrosion in climate-controlled and industrial environments
- RoHS compliant materials meet procurement requirements for organizations with green IT and hazardous-substance policies
- UL 2416 and CSA C22.2 listed for cable management systems, satisfying fire marshal and building-code inspection requirements in commercial facilities
The PR2VSD1296's dual-sided architecture addresses the cable-density crisis in modern network and security installations where switch port counts, PoE camera uplinks, and fiber interconnects have grown faster than rack real estate. The metal backbone spans the full 95.88-inch height (2,435 mm) and mounts directly to standard 19" or 23" rack rails using included hardware. Molded plastic fingers on both the front and rear faces create independent pathways — front side typically carries horizontal patch cables and equipment pigtails, while the rear face handles vertical distribution trunks and backbone fiber. This segregation simplifies troubleshooting, reduces the risk of accidental disconnection during maintenance, and maintains clean bend radii even when both sides approach full capacity. The 12-inch width (304.8 mm) provides ample depth for bundled runs; installers working with 10Gig copper, OM3/OM4 multifiber assemblies, or armored fiber trunks will find the finger spacing accommodates large-diameter jacket materials without forcing tight bends that degrade insertion loss or return loss performance.
Deployment is straightforward: mount the manager vertically alongside equipment racks using the supplied brackets, lace cables through the finger guides on the appropriate side, and close the door to secure the installation and maintain a professional appearance. The dual-hinging door design is a significant operational advantage — it swings open from either the left or right edge depending on aisle access, so installers aren't forced to reposition equipment or work from awkward angles when adding new circuits. Push-to-close latching holds the door firmly without separate screws or cam locks that can be lost during maintenance windows. This manager is commonly specified in colocation facilities, enterprise campus IDF closets, hospital IT/nurse-call distribution rooms, and large-scale IP surveillance head-end installations where rack density is high and cable counts exceed what open vertical managers or J-hooks can handle cleanly. Pair with Panduit horizontal cable managers at the top and bottom of the rack for a complete pathway system, or integrate with cable runway and ladder rack for distribution between floors or zones.
Compliance certifications validate the PR2VSD1296 for use in projects with strict authority-having-jurisdiction (AHJ) requirements: UL 2416 listing covers cable management accessories used in plenum, riser, and general-purpose spaces; CSA C22.2 certification satisfies Canadian electrical code; and RoHS compliance ensures the unit contains no restricted lead, mercury, cadmium, or brominated flame retardants, a mandatory checkbox for federal, healthcare, and multinational enterprise procurement. The PatchRunner 2 series is engineered for installations where cable integrity, inspection access, and long-term maintainability are non-negotiable — specifically, environments where a single mis-routed or damaged cable can take down critical infrastructure, and where structured cabling warranties depend on maintaining manufacturer-specified bend radius and support intervals throughout the entire pathway.
