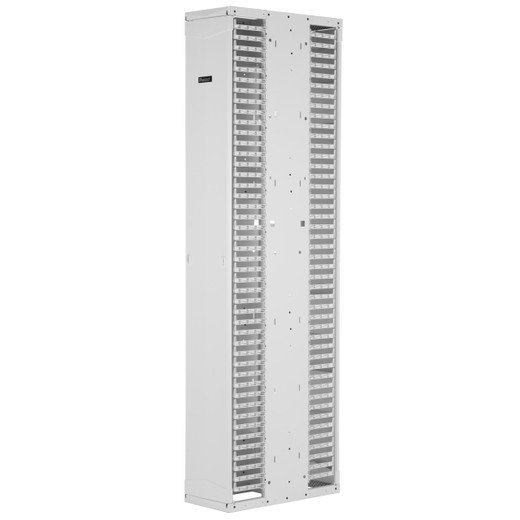

Panduit PE2VD1296WH PatchRunner 2 Enhanced Vertical Cable Manager
The Panduit PE2VD1296WH addresses ultra-high-density cable management in 52RU racks where traditional single-sided managers can't keep pace with modern 10GbE/40GbE copper and high-fiber-count trunk deployments. This dual-sided vertical manager combines a structural steel backbone with molded plastic routing fingers and dual full-length hinged doors across the entire 95.9-inch height, delivering 15 bonus vertical RU beyond the rack's nominal 52RU capacity. The zero-RU patch characteristic means you can terminate and dress patch cables without consuming usable rack unit space that would otherwise house switching or compute equipment. Pre-assembled construction eliminates field assembly of individual brackets and finger sections, cutting installation time by up to 40% compared to component-based wire management systems - a critical advantage when you're standing up dozens of racks under datacenter migration or expansion deadlines.
Key Features
- 52 RU capacity with 12-inch (304.8mm) width accommodates high-density fiber trunk and copper patch cable management
- Dual-sided design with structural steel backbone and molded plastic fingers for organized front and rear cable routing
- Two full-length metal hinged doors with push-close latching mechanisms for secure access and professional appearance
- 15 bonus vertical RU beyond nominal rack capacity provides extended cable dressing and service loop space
- Zero-RU patch characteristic - manage and terminate patch cables without reducing available rack unit count for active equipment
- Pre-assembled construction for rapid deployment in datacenter, colocation, and enterprise network environments
- Push-close door latches eliminate hardware rattle and provide positive closure without compression force
- Metal hinge assemblies rated for thousands of access cycles in high-traffic datacenter environments
- 12-inch width supports TIA-568 minimum bend radius requirements for Cat6A and fiber cables
- Compatible with standard 19-inch and 23-inch EIA racks without consuming adjacent rack space
- UL 2416 and CSA C22.2 listed for electrical equipment safety compliance
- White finish matches modern open-frame rack aesthetics and enhances cable identification during troubleshooting
- RoHS compliant for government and enterprise environmental procurement requirements
The PE2VD1296WH's structural steel backbone provides the rigidity needed to support the cumulative weight of hundreds of Cat6A patch cables, OM3/OM4 fiber trunks, and direct-attach copper (DAC) cables without deflection or mounting bracket stress. The molded plastic fingers are positioned at optimal intervals to provide individual cable guidance that prevents bundle crushing at critical bend points where jacket deformation can cause insertion loss and long-term performance degradation. Each finger is designed to accommodate multiple cable diameters - from 0.25-inch Cat6 to 0.375-inch Cat6A - without sharp edges that could nick jacketing during installation or subsequent moves, adds, and changes.
The dual hinged doors span the full 95.9-inch (2435.9mm) vertical height with individual push-close latching mechanisms that provide positive closure without the spring tension common in compression latch designs. Push-close latches eliminate the metallic rattle that occurs in compression systems when datacenter HVAC cycling creates micro-vibrations across the rack infrastructure. Each door swings clear on metal hinge assemblies rated for thousands of open-close cycles - critical in production datacenter environments where you're accessing the manager weekly for circuit troubleshooting, new patch cable installation, or cable auditing. The hinges are positioned to allow full door swing without interference from adjacent racks in standard 36-inch hot/cold aisle configurations.
The 12-inch (304.8mm) width is engineered to accommodate the service loops and dress requirements specified in TIA-568 structured cabling standards while maintaining compatibility with standard 19-inch and 23-inch EIA rack mounting. This width provides sufficient depth for proper cable bending radius - particularly critical for Cat6A cables where the industry-standard minimum bend radius is 4x the cable diameter (approximately 1.5 inches for typical 0.375-inch Cat6A). Maintaining this minimum bend radius across hundreds of cables prevents jacket deformation, conductor stress, and the insertion loss spikes that occur when cables are forced into tight turns. The zero-RU patch capability means the manager's vertical mounting footprint doesn't reduce your available rack units for switches, servers, or storage equipment - you maintain full 52RU equipment capacity plus organized vertical cable management in the same rack envelope.
Deploy the PE2VD1296WH in leaf-spine datacenter fabrics where every top-of-rack switch terminates 48 to 96 ports and cable management quality directly impacts mean time to repair during outage troubleshooting. The dual-sided architecture supports back-to-back rack configurations common in colocation cages, carrier hotels, and meet-me rooms: the front side manages customer-facing equipment connections and cross-connects while the rear side dresses ISP uplinks, carrier cross-connects, and DC power whips. This separation prevents the cable congestion that occurs when you're trying to route 200+ cables through a single-sided manager in a high-density deployment.
The pre-assembled construction is a force multiplier when you're deploying multiple racks in datacenter buildouts or colo cage expansions. Field-assembled wire management systems require individual mounting of dozens of brackets followed by finger installation and alignment - a process that can consume 90+ minutes per rack when performed to professional standards. The PE2VD1296WH's factory-assembled sections reduce installation to mounting the backbone and attaching the pre-hinged doors, cutting deployment time to approximately 35-40 minutes per rack. When you're standing up 20 or 50 racks in a datacenter migration with hard cutover deadlines, this time savings translates directly to schedule margin and reduced installation labor costs.
The white finish serves two operational purposes in modern datacenter environments. First, it matches the aesthetic of contemporary open-frame racks and white-box switching infrastructure, creating visual consistency in facilities where the rack infrastructure is visible to customers during datacenter tours or audits. Second, the light background color enhances cable identification during troubleshooting - colored patch cables (red for management, blue for production, yellow for cross-connect) remain visually distinct even when you're tracing a single circuit through 50+ adjacent cables. You can identify and trace cables without opening the doors and disturbing adjacent circuits, reducing the risk of accidental disconnection during troubleshooting.
For ultra-high-density 10GbE copper environments - such as all-flash storage arrays with 10GBase-T connectivity or top-of-rack switching with 96-port Cat6A density - the 15 bonus vertical RU provide the additional cable dressing length needed to maintain proper bend radius without cable jacket deformation. Standard 52RU racks provide approximately 91 inches of vertical space (52 RU × 1.75 inches per RU). The PE2VD1296WH's 95.9-inch height adds roughly 5 additional inches of vertical dressing space, accommodating the service loops required by structured cabling standards and the additional length needed when cables must route around obstacles or make multiple direction changes between the switch and the patch panel.
The manager's compatibility with both 19-inch and 23-inch EIA racks provides deployment flexibility across traditional IT datacenters (predominantly 19-inch) and telecommunications central offices or carrier facilities (often 23-inch). The 12-inch width fits within the mounting envelope of both rack types without extending beyond the rack frame or consuming space needed for adjacent equipment. This universal compatibility eliminates the need to stock separate SKUs for different rack standards, simplifying procurement and spares inventory for organizations operating hybrid datacenter/telco infrastructure.
UL 2416 and CSA C22.2 listing ensure the PE2VD1296WH meets the electrical equipment safety standards required by most datacenter and colocation facility managers during tenant improvement permit reviews and carrier compliance audits. These certifications verify that materials, construction, and fire-performance characteristics meet North American safety requirements for equipment installed in occupied spaces and critical infrastructure facilities. Many colocation providers and carrier hotels mandate UL/CSA listing for all customer-installed equipment as a condition of the cage lease or cross-connect agreement. RoHS compliance satisfies the environmental purchasing requirements common in government contracts, Fortune 500 procurement policies, and international deployments in RoHS-enforcing jurisdictions, eliminating the waiver paperwork and approval delays that occur when non-compliant equipment requires environmental exception approvals. The PatchRunner 2 platform is field-proven across hyperscale, enterprise, and managed service provider deployments where cable management infrastructure directly impacts operational uptime and maintenance efficiency - this isn't decorative wire concealment, it's the structured backbone that keeps your datacenter cabling system maintainable and auditable under the constant churn typical of production facilities.
