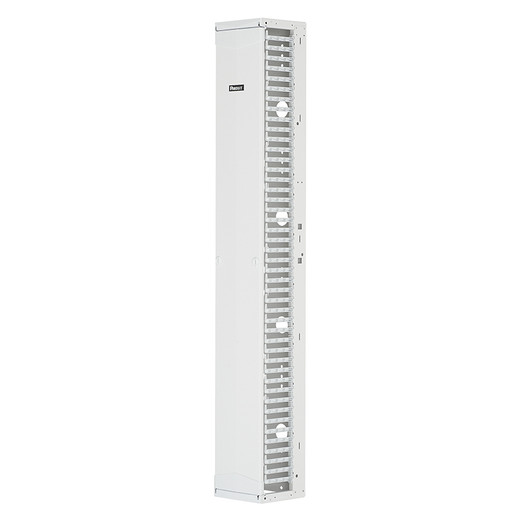

Panduit PR2VFD1296WH 52RU Vertical Cable Manager

The Panduit PR2VFD1296WH is a 52RU vertical single-sided cable manager engineered for ultra-high-density datacenter and telecom installations where floor space is at a premium and cable routing demands exceed standard dual-post rack capacity. As network fabrics scale beyond 10GbE to 25G, 40G, and 100G uplinks—and as fiber trunk counts climb past 144 strands per interconnect—the cable mass emanating from top-of-rack switches and spine aggregation points quickly overwhelms traditional 6-inch-wide wireway or open J-hook ladder rack. Built on the PatchRunner™ 2 platform, this 12-inch-wide white manager ships fully assembled with a metal backbone, molded plastic routing fingers, and a full-length metal dual-hinged push-close door—eliminating field assembly time and reducing total project cost. Designed for 19-inch and 23-inch EIA racks, it handles hundreds of Cat 6A, fiber, and power cables in a single vertical run while maintaining full accessibility for moves, adds, and changes without disrupting adjacent production equipment.

Key Features

• 52RU (95.88 in / 2435.2 mm) vertical coverage spans full-height rack deployments from floor to overhead cable tray entry points
• 12-inch (304.8 mm) routing width accommodates ultra-high cable counts in dense aggregation zones—handles 200+ terminated ends per manager
• Metal backbone with molded plastic fingers provides structural rigidity under 100+ lb cable load while protecting jacket integrity from sharp edges and abrasion
• Full-length metal dual-hinged push-close door delivers secure cable containment with tool-free access—no screws, no latches, instant entry for MACs
• Single-sided configuration mounts to one rack rail, preserves adjacent aisle clearance and maintains hot/cold aisle airflow separation
• Ships fully pre-assembled—eliminates 30-45 minutes of field assembly labor per unit, reduces fastener inventory and installation errors
• Universal compatibility with 19-inch and 23-inch EIA racks per standard square-hole and round-hole mounting patterns
• White powder-coat finish matches OEM rack enclosures and maintains clean aesthetic in customer-facing NOC and colocation environments
• RoHS compliant per EU Directive 2011/65/EU—meets lead-free and hazardous substance requirements for global procurement standards

The PR2VFD1296WH uses a welded steel backbone that mounts directly to standard 19" or 23" EIA rack rails via captured cage nuts or square-hole clips, delivering structural support for cable bundles exceeding 100 pounds when fully loaded with high-count Cat 6A horizontal runs, OM3/OM4 fiber trunks, or mixed copper-fiber-power assemblies. The routing fingers are injection-molded from a smooth high-impact plastic formulation—no burrs, flash, or sharp corners—so you can dress cables under tension without risking jacket abrasion during pull-through or kinking at bend-radius-critical zones near switch ports. Each finger is spaced to accept multiple cable diameters (from 28AWG patch cords to 0.5" trunk assemblies) and flexes to allow mid-run breakouts without removing upstream cables. The dual-hinged door spans the full 52RU height and closes with a push-latch mechanism that engages without tools—giving techs instant access during troubleshooting, MAC work, or emergency fault isolation while keeping cables visually contained and protected from accidental snags during adjacent rack equipment installation or removal. The 12-inch width is deliberately oversized compared to the 4-inch or 6-inch managers common in legacy 1GbE installs—critical when you're running 96-strand MPO trunk breakouts, 10GBase-T patch cords with oversized molded boots, redundant A/B-side power feeds, or mixed copper + fiber + DC power in the same vertical path. The white powder-coat finish is electrostatically applied and baked for scratch resistance and UV stability, ensuring it matches most OEM rack enclosures from APC, Eaton, Chatsworth, and Panduit's own NetRunner and NetAccess rack lines—maintaining a unified appearance in customer-visible colocation suites, enterprise network operation centers, or glass-walled data halls.

Integrators deploy the PR2VFD1296WH in top-of-rack switching environments, spine-leaf fabric aggregation points, SAN/NAS storage interconnects, and backbone cross-connect zones where cable density routinely exceeds 200 terminated ends per rack and cable lengths span from 3 feet (intra-rack patch) to 30 feet (cross-row trunk). The single-sided design is ideal for back-to-back row layouts where both hot and cold aisles need clear access—mount the manager on the rear rail of the network equipment rack, dress all patch cords and trunks vertically through the plastic fingers, and close the door to isolate cable mass from equipment airflow paths and prevent accidental disconnects during adjacent maintenance or forklift traffic in the aisle. The 52RU height matches standard 42U or 45U rack frames plus overhead cable entry points at the top, eliminating the need for stacked or spliced shorter managers that create visual seams and mechanical weak points under sustained cable load. For hyperscale datacenter builds deploying hundreds of racks per phase, the fully pre-assembled construction cuts install time from 45 minutes (field-assembled multi-piece managers requiring 20+ screws and alignment) down to under 10 minutes per unit—mount the backbone to rack rails, bond to facility ground, dress cables through fingers, close door, move to next rack—translating to measurable labor cost savings and faster time-to-revenue for colocation providers. The white finish is commonly specified by enterprise clients, financial institutions, and healthcare datacenter operators who want a unified aesthetic across mixed-vendor rack ecosystems (Cisco + Arista + Juniper switches, Dell + HPE servers, NetApp + Pure storage arrays) and need to meet corporate design standards that favor light-colored infrastructure in glass-walled NOCs or raised-floor environments with overhead LED lighting that highlights cable clutter when darker colors are used.

The PR2VFD1296WH is RoHS compliant per EU Directive 2011/65/EU, ensuring it meets lead-free solder, cadmium-free coatings, and hazardous substance restrictions for projects subject to European procurement standards, multinational corporate environmental policies, or LEED datacenter construction requirements. Unlike generic open wireway channels, perforated vertical ducts, or J-hook ladder rack that leave cables fully exposed and vulnerable to pull-force damage during adjacent rack work, the PatchRunner™ 2 enclosed door-and-finger design isolates cable mass behind a hinged barrier while still maintaining individual strand traceability during MAC events—critical in carrier hotels, financial trading datacenters, or healthcare HIPAA environments where unplanned outages from accidental disconnects carry five-figure per-minute revenue impact or regulatory reporting penalties. The 12-inch routing width represents Panduit's engineering response to the modern high-speed fabric density problem: when every spine switch uplink is a 100G QSFP28 breakout into four 25G SFP28 fibers, every top-of-rack switch has 48 x RJ45 ports plus dual 40G or 100G uplinks for redundancy, and every server has dual 25G NICs bonded for bandwidth and failover, the cable count per rack climbs into the 150-250 range—and legacy 6-inch managers physically cannot accommodate that mass without over-stuffing (which crushes bend radius and degrades optical performance) or cable overflow into adjacent racks (which blocks airflow and creates FOD hazards). This manager gives you the physical capacity to handle today's 10G/25G deployment plus next year's 100G or 400G spine upgrade without ripping out undersized infrastructure mid-refresh cycle.
