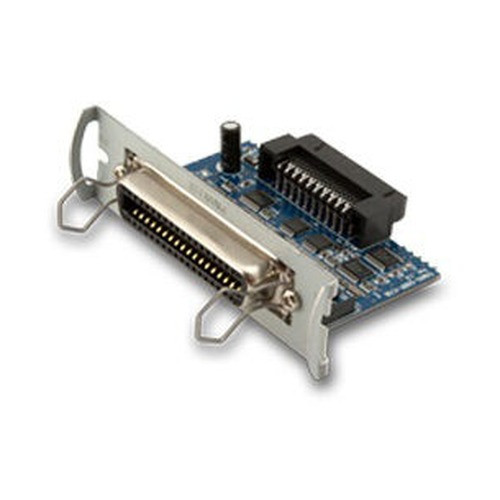

Custom America POS 41000000087600 Parallel Interface Card for EVO Thermal
The Custom America POS 41000000087600 is a parallel interface expansion card (legacy part number EVO-PT3-1CARDP) designed for EVO-series thermal printers requiring IEEE 1284 Centronics-protocol connectivity. Deploy this card when warehouse, retail, or logistics operations depend on legacy host systems, WMS platforms, or point-of-sale architectures still running parallel-connected workflows. This card bridges modern EVO thermal hardware with older host infrastructure—essential during phased system migrations where parallel device support remains operationally mandatory. Once installed in the EVO logic board's internal expansion slot, the parallel port becomes available on the printer's rear panel, enabling direct communication from your WMS or POS application using standard parallel handshake protocols without requiring new host-side drivers or gateway hardware.
Key Features
- IEEE 1284 Centronics Parallel Protocol: Full parallel port implementation. Eliminates the need for USB-to-parallel adapters or host-side middleware when legacy applications require direct parallel device communication.
- EVO Printer Family Compatibility: Designed exclusively for Custom America POS EVO thermal printer series. Seats into the dedicated internal expansion slot on the EVO logic board without modification.
- Rear-Panel Port Access: Once installed, the parallel port is exposed on the printer's rear panel. Allows direct connection to legacy host systems using standard 36-pin Centronics cables.
- No Host-Side Driver Requirement: Legacy WMS and POS applications recognize the printer as a standard parallel device. Reduces integration complexity during system migrations and avoids dependency on vendor-specific middleware.
- Internal Expansion Slot Installation: Card installs internally on the EVO logic board. Requires printer disassembly and standard ESD precautions. No external power or additional cabling required beyond the parallel cable connection.
- Backward Compatibility Bridge: Maintains parallel device support on modern EVO hardware. Allows phased decommissioning of legacy parallel-only host systems without simultaneous printer replacement.
This interface card is purpose-built for warehouse and retail environments where legacy parallel-connected WMS or POS host systems cannot be immediately replaced. Rather than scrapping working thermal printer hardware or maintaining dual printer ecosystems, the 41000000087600 extends the operational life of parallel-dependent workflows on newer EVO thermal platforms. The card does not add USB or network connectivity—it is a parallel-only expansion device.
Installation is a technician-level task requiring internal access to the EVO printer chassis. The card must be seated fully into the expansion slot on the EVO logic board. After installation, verify parallel port communication from your WMS or POS application by testing printer response to a status query or test print command. Configure appropriate timeouts and handshake parameters to match your legacy host system's parallel protocol expectations. No firmware update or recalibration of the EVO printer is required after card installation.
Before ordering, verify that your printer is an EVO-series model and that the replacement hardware will indeed be EVO architecture. This card will not function with non-EVO Custom America thermal printers, earlier POS-X models outside the EVO family, or any third-party thermal printer brands. If you are decommissioning POS-X equipment with parallel cards, confirm the new host platform is EVO-compatible to ensure the expansion slot exists. Parallel-only network printers and USB-only thermal models do not support internal expansion cards.
The 41000000087600 is sourced direct from the manufacturer. No grey-market, no parallel imports. If you are managing a phased migration from legacy parallel WMS infrastructure to network-capable EVO thermal printers, this card provides the compatibility bridge needed to avoid simultaneous forklift upgrades of both host and printer ecosystems. See the Custom America POS catalog for compatible EVO printer models and related interface options.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the 41000000087600 in live warehouse environments managing the transition from legacy parallel-connected POS and WMS host systems to modern networked EVO thermal platforms. The real value here is operational: when a facility has 15 years of POS application code running on parallel device drivers, and the hardware works reliably, swapping the printer without touching the application layer becomes the path of least resistance. The card is straightforward—it's essentially a connector that exposes the printer's internal parallel interface to the rear panel. No firmware magic, no software stack. The integration risk is low because legacy applications already know how to talk to parallel thermal devices. What we've seen go wrong, however, is incomplete scope management: techs install the card but miss that their host application has hardcoded assumptions about port address or handshake timing. The card itself is rock-solid, but the host side needs validation before deployment.
Technical Highlights:
- IEEE 1284 Centronics Full Compatibility: Implements the full Centronics parallel handshake (STROBE, ACK, BUSY, PAPER-OUT, SELECT, FAULT lines). Legacy WMS and POS apps see a standard parallel device with no translation layer. Host applications can send print jobs and status queries without middleware.
- Internal Logic Board Expansion Slot: The EVO printer architecture includes a dedicated slot for interface cards. The 41000000087600 slots in without modification to the printer's core logic board. No soldering, no jumper configuration required—it's a plug-in card design.
- Zero External Power Draw: The parallel port derives power from the EVO logic board itself. No additional power supply or external adapter needed. Simplifies installation and reduces rear-panel cable clutter.
- 36-Pin Centronics Connector: The parallel port uses the standard 36-pin Centronics connector. Existing parallel cables from legacy printers are typically compatible. Verify cable length and condition before reuse on new hardware.
- No Driver Dependency on Host: The card appears to the host application as a raw parallel port. Windows Generic / Parallel Port drivers or Linux ppdev kernel module handle communication. No Custom America or third-party software drivers required on the host side.
Deployment Considerations:
- Internal installation requires disassembly of the EVO printer. This is a technician-level task—not a self-service deployment. Plan for downtime during installation and verify port functionality before returning the printer to production.
- Parallel cable length is a real constraint in legacy environments. Standard Centronics cables max out around 50 feet with signal integrity. If your WMS host is more than 30 feet from the printer, test the cable run and monitor for transmission errors during initial operation. Consider a parallel-to-USB adapter on the host side if the cable run is excessive, or migrate to networked EVO printers for sites with distributed host systems.
- Host application configuration is critical. The application must be set to print to the correct parallel port (LPT1, LPT2, etc. on Windows; /dev/lp0 on Linux). Verify timeout settings and handshake parameters match the legacy application's expectations. Parallel communication is synchronous—slow or missing ACK signals can cause print job failures.
- Backward compatibility does not extend to POS-X or non-EVO printers. Do not attempt to install this card in any printer model other than EVO. The internal expansion slot geometry and electrical interface are EVO-specific.
- This card does not provide network connectivity, USB, or any modern interface. If your phased migration roadmap includes eventual migration to networked thermal printers, plan for a second host-side upgrade once parallel support is fully deprecated. The 41000000087600 is a bridge, not an endpoint architecture.
The 41000000087600 is ideal for warehouse and retail operations managing legacy parallel WMS or POS workflows that require thermal printer hardware upgrades without simultaneous host system replacement. This card extends the operational life of aging parallel host systems by enabling modern EVO thermal printer hardware to function as drop-in replacements. For detailed compatibility verification and integration planning, consult the Custom America POS catalog.
