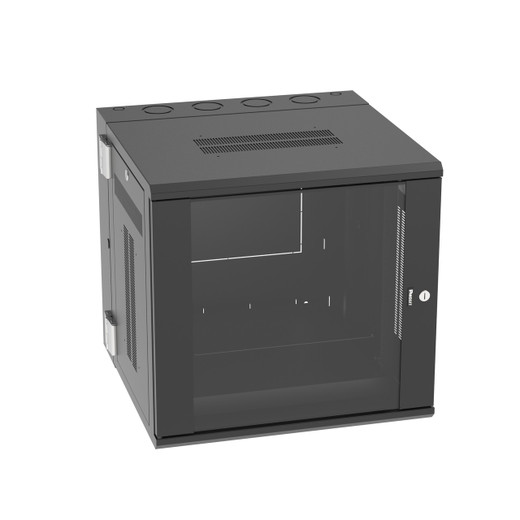

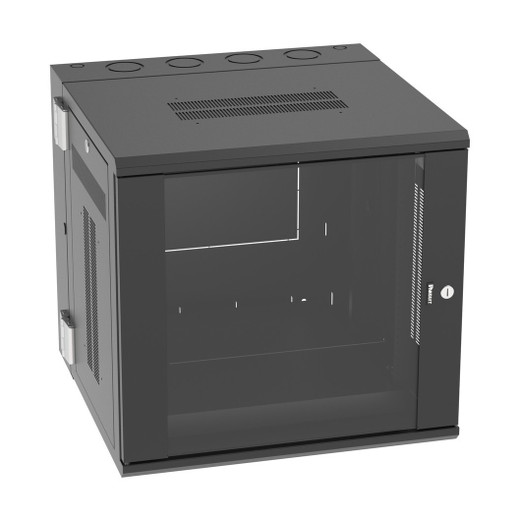

Panduit PZWMC12W PanZone 12U Wall-Mount Cabinet

The Panduit PZWMC12W is a 12U wall-mount network enclosure engineered for edge datacenter, telecom closet, and IP surveillance NVR deployments where floor space is at a premium and equipment density demands structural integrity. Built from welded steel with a 250-pound (113.4 kg) static load rating, this cabinet accommodates patch panels, managed switches, UPS units, and rackmount NVRs in environments ranging from enterprise IDF closets to retail back-of-house installations. The 25-inch (635 mm) depth provides full clearance for deep switches, cable managers, and horizontally mounted patch panels, while the windowed front door allows visual status checks without unlocking the enclosure. Hinged front and rear doors with removable side panels deliver 360-degree access for MAC work, and the powder-coated black finish integrates into professional IT environments.

Key Features

• 12U EIA-310-D compliant mounting rails accept standard 19-inch rackmount equipment
• 250 lb (113.4 kg) static load capacity supports densely populated configurations with UPS, switches, and cable management
• 25-inch (635 mm) depth accommodates deep network switches, horizontal patch panels, and rear cable managers
• Windowed front door provides equipment status visibility without key access
• Hinged front and rear doors with removable side panels enable complete access for installation and service
• Welded steel construction with powder-coated black finish for commercial-grade durability
• Integrated cable entry points for structured wiring and power distribution
• RoHS compliant for spec-compliant installations in regulated environments

This enclosure addresses a common deployment challenge in distributed network architectures: housing active equipment in locations where rack density, security, and thermal management must coexist with spatial constraints. The 12U form factor maps to typical edge site requirements—enough capacity for a 24- or 48-port PoE switch, 2U patch panel, 1U cable manager, rack-mount UPS, and 2-4U of application equipment (NVR, access control panel, or small server). The 635 mm depth is critical for compatibility with enterprise-class switches that extend 18-20 inches front-to-back once cables are terminated; shallow cabinets force installers to choose between rear cable managers or proper door closure. The PZWMC12W eliminates that compromise.

The hinged door design differentiates this cabinet from fixed-panel enclosures common in the small-cabinet market. The windowed front door uses a steel frame with clear polycarbonate glazing, allowing visual confirmation of link lights, LCD status panels, and power indicators without opening the lock—useful in secured telecom rooms where multiple contractors need status visibility but not configuration access. Both front and rear doors swing on continuous hinges with removable pins, so doors can be fully removed for initial equipment installation or forklift transport through narrow doorways. The rear door is solid steel with ventilation louvers; the louvered pattern promotes convective airflow while maintaining security. Removable side panels are held with captive quarter-turn fasteners, eliminating the risk of dropped screws inside the cabinet during service.

Cable management starts at the enclosure design: knockouts are provided in the top, bottom, and rear panels for conduit entry, and the cabinet ships with grommets to protect cable jackets at entry points. The side-panel removal feature is operationally significant—it allows horizontal cable routing from the cabinet to adjacent J-hooks or cable trays without forcing every cable through top or bottom knockouts. This is especially valuable in retrofit scenarios where the cabinet is installed into an existing structured cabling system with cables already dressed along walls. The internal 12U rails are tapped every RU with square-hole or threaded mounting points (confirm rail type based on your equipment's cage-nut or screw-mount requirements), and the 25-inch interior width provides working room for cable dressing behind vertical cable managers.

Load distribution on wall-mount cabinets is often underestimated during design. A fully loaded configuration—48-port PoE switch (25 lbs), 2U UPS with batteries (40 lbs), 16-channel NVR with drives (18 lbs), patch panel (8 lbs), and cable managers (5 lbs)—can approach 100 pounds before accounting for cables. The PZWMC12W's 250 lb rating provides headroom, but proper installation is non-negotiable: the cabinet must be through-bolted to structural wall studs or commercial wall framing, not drywall anchors. Panduit does not include mounting hardware because wall construction varies (wood studs, metal framing, CMU block), so installers should spec 3/8-inch or 1/2-inch lag bolts for wood framing, or toggle bolts rated for the total load plus 50% safety margin for drywall-over-metal-stud construction. The cabinet's mounting flange has slotted holes to accommodate stud-finder adjustments during installation.

Thermal management in sealed wall-mount cabinets is a documented failure mode in underspecified installations. PoE switches and UPS units are heat sources; without convective airflow or forced ventilation, internal temperatures can exceed equipment operating limits, triggering thermal shutdowns or reducing service life. The PZWMC12W uses louvered rear door ventilation and passive top/bottom vents to promote natural convection. For higher heat loads—such as a 740-watt PoE switch in a climate-controlled but non-air-conditioned telecom closet—installers should add a thermostat-controlled fan tray (not included) mounted in the top RU positions to exhaust heated air. The windowed front door and louvered rear door create a front-to-back airflow path when fans are installed; without fans, the cabinet relies on convective rise, which is adequate for loads under 500 watts in conditioned spaces.

This cabinet meets EIA-310-D standards for 19-inch rack compatibility, ensuring that any spec-compliant rackmount device will fit the mounting rails without adapters. RoHS compliance is documented for installations subject to environmental procurement standards (government, education, healthcare). The black powder-coat finish is standard for IT environments and resists scratching during equipment changes. The welded steel construction provides EMI shielding, which can be relevant in environments with radio equipment or sensitive measurement devices, though the cabinet is not rated as a Faraday enclosure.

Competitive positioning: The PZWMC12W competes with Middle Atlantic EWR-12-22, Tripp Lite SRW12US, and Chatsworth SlimFrame cabinets in the 12U wall-mount segment. Panduit's differentiator is the combination of 25-inch depth and 250 lb load rating—many competitors cap depth at 20-22 inches or limit load to 150-200 lbs, forcing installers to compromise on equipment selection or over-build wall reinforcement. The PanZone line is positioned for structured-cabling professionals who need guaranteed compatibility with Panduit's own patch panels, cable managers, and power distribution units, though the cabinet accepts any EIA-compliant equipment. The windowed door is a value-add for sites where non-technical staff need visual equipment checks (retail, branch offices, schools).

Typical deployment: A regional bank branch requires IP surveillance NVR, PoE switch for 16 cameras, and network patch panel in a 10x10 ft back-office telecom closet. The installer mounts the PZWMC12W to the CMU block wall using 1/2-inch sleeve anchors, installs a Panduit 48-port Cat6A patch panel in the top 2U, a 24-port PoE+ switch (370W) in the middle, the NVR in a 2U rackmount chassis, a 1U horizontal cable manager, and a 1500VA UPS in the bottom 2U. Total load is approximately 95 lbs. The windowed front door allows the branch manager to verify NVR recording status (via front-panel LEDs) without accessing the locked cabinet, while the IT contractor uses the rear door for cable termination and the removable side panels for horizontal cable routing to the overhead J-hook tray. The cabinet's depth accommodates the switch's rear-facing power cord and the NVR's cable bundle without forcing the rear door open.

The PZWMC12W is backed by Panduit's manufacturer warranty. Shipping configuration is one cabinet per carton; the cabinet ships fully assembled (doors installed, side panels in place) and does not require field assembly beyond wall mounting. Confirm wall structure load capacity and mounting hardware requirements before installation, and plan for cable entry routing based on building pathways.
