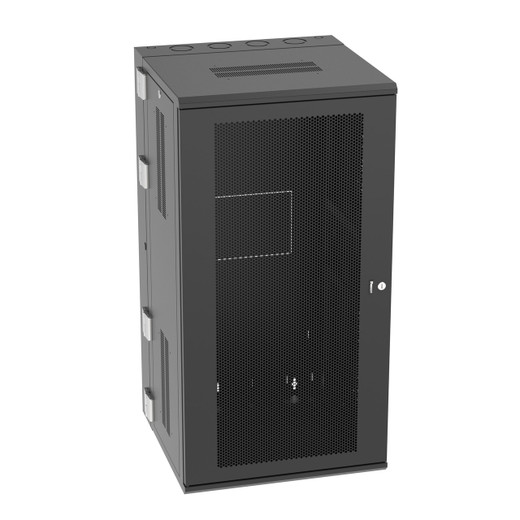

Panduit PZWMC26P PanZone 26U Wall-Mount Network Cabinet

The Panduit PZWMC26P PanZone wall-mount cabinet addresses the space and access constraints of intermediate distribution frames, security control rooms, and edge network deployments where floor-standing racks won't fit. With 26U of EIA-compliant mounting space, 635mm (25-inch) depth, and 350-pound load capacity, this enclosure supports multi-switch stacks, patch panels, and power distribution in a wall-hung footprint. The perforated front door delivers passive airflow without forced ventilation, while hinged front and rear doors plus removable side panels give you four-sided access for cable dressing and equipment swaps. Black powder-coat steel construction meets the durability requirements of commercial installs without the premium finish cost of IT-grade enclosures.

Key Features

• 26U rack height with EIA-483mm standard rail spacing for universal equipment compatibility
• 635mm depth accommodates deeper switches, UPS units, and cable management hardware
• 350-lb (158.76 kg) static load rating supports fully populated configurations
• Perforated front door provides passive cooling for heat-generating equipment
• Front and rear hinged doors with removable side panels enable four-sided access
• Steel construction with black powder-coat finish for commercial durability
• RoHS compliant for environmentally regulated installations

The depth spec matters in wall-mount cabinets because shallow enclosures force compromises—either you can't mount your UPS, or cable management becomes a bundle fight. This 635mm-deep cabinet clears most PoE switches (typically 300-450mm), 1U rackmount UPS units (400-500mm), and still leaves room for horizontal cable managers on the rear rail. The perforated door uses a hex-pattern perforation that balances airflow against dust ingress and visual security—you're not running open-frame in a hallway closet, but you're not trapping heat either. Static load rating of 350 pounds assumes proper wall anchoring into structural framing or masonry; the cabinet ships with mounting hardware, but job-site conditions dictate whether you're lag-bolting into studs, using toggle anchors in CMU, or through-bolting a plywood backer. The front door is reversible for left or right swing depending on your closet layout, and the rear door is split-design for routing access without removing the entire panel. Removable side panels don't require tools for basic access—they lift off mounting pins once you've cleared the rear door, letting you dress vertical cable runs or add equipment without disassembling the entire enclosure. The 48.2-inch overall height (1224mm) fits standard 8-foot ceilings with clearance for overhead cable trays or conduit entry, while the 25-inch width accounts for the cabinet body plus door swing in tight closet spaces.

Wall-mount 26U cabinets land in three common scenarios: IDF closets in multi-floor buildings where you're terminating floor-level drops and feeding back to the MDF; security control rooms where you're co-locating NVR, PoE switch, and patch for local camera home-runs; and edge locations like warehouses, retail back-offices, or remote buildings where you need a rack but don't have the floor space or cooling budget for a full enclosure. In security deployments, 26U typically supports 24-48 camera home-runs via one or two 24-port patch panels, a 24- or 48-port PoE switch, 1U rackmount UPS for ride-through, and cable management. The removable side panels let you dress cables along the vertical rails without disassembling doors or pulling equipment—critical when you're adding cameras post-install and need to route new runs without shutting down the switch. The black finish is commercial-grade powder coat, not texture paint, so it holds up to the scrapes and dings of equipment installation without chipping through to bare metal in the first year. For thermal management, the perforated front door handles passive convection loads up to about 1.5kW; if you're running fully populated PoE+ switches or multiple 1U servers, you'll need to plan for closet-level HVAC or exhaust fans rather than relying on the cabinet alone. The rear split door lets you run cable bundles through the top or bottom opening without removing the entire door panel, reducing the exposure time when you're working in a live environment and can't afford to leave the cabinet open.

The 26U form factor splits the difference between 12U shallow cabinets (adequate for single-switch edge deployments but cramped for stacked equipment) and 42U floor-standing racks (overkill for IDF applications and a floor-space problem in converted closets). Real-world loads: a typical commercial security IDF consumes 8-12U for network gear (two 24-port PoE switches, 1U UPS, 1U surge suppressor, two horizontal cable managers) plus 4-6U for patch (two 24-port panels, one fiber panel) plus 2-4U for future expansion, landing you in the 14-20U range with headroom. The 635mm depth accommodates Cisco Catalyst 9300 series switches (368mm), Ubiquiti Enterprise PoE switches (442mm), and most rackmount UPS units without requiring extended rails or custom brackets. If you're running shallower equipment like UniFi Dream Machine Pro (300mm) or basic patch panels (150mm), the extra depth gives you rear-mounted PDUs, vertical cable managers, or simplex-to-duplex fiber adapters without fighting for clearance. The steel construction uses 16-gauge rolled sheet for the main body and 18-gauge for doors and side panels—thicker than contractor-grade open racks but not data-center vault spec. It's built for commercial environments where the cabinet takes incidental contact from ladder work, tool bags, and facility maintenance, not high-security applications where you're guarding against forced entry.

EIA-483mm compliance ensures this cabinet accepts any standard 19-inch rack equipment, patch panel, or shelf without adapter rails or custom brackets. RoHS compliance meets the environmental restrictions in municipal and federal installations where procurement mandates certified components. The PanZone line positions between contractor-grade open-frame racks (no environmental control, limited security) and data-center enclosed cabinets (overkill for IDF applications, double the cost). Mounting hardware ships with the cabinet but verify your wall structure before installation—drywall anchors won't support 350 pounds of loaded equipment, and most building codes require attachment to structural framing or blocking for loads over 100 pounds. If you're spec'ing for a multi-floor office build-out, campus security retrofit, or distributed enterprise WAN edge, this cabinet delivers the mounting capacity, access, and thermal management for typical commercial loads without the footprint or budget of floor-standing alternatives. Manufacturer warranty applies.
