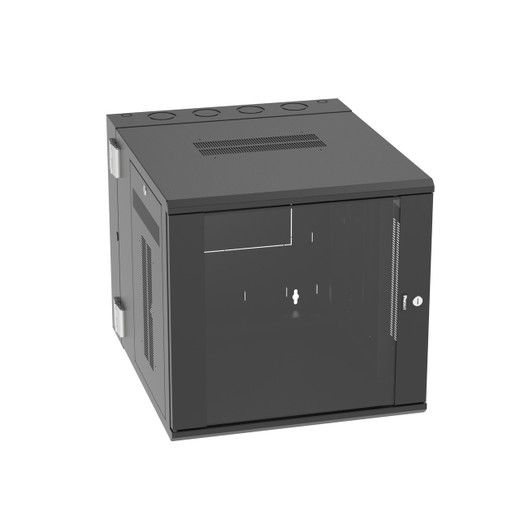

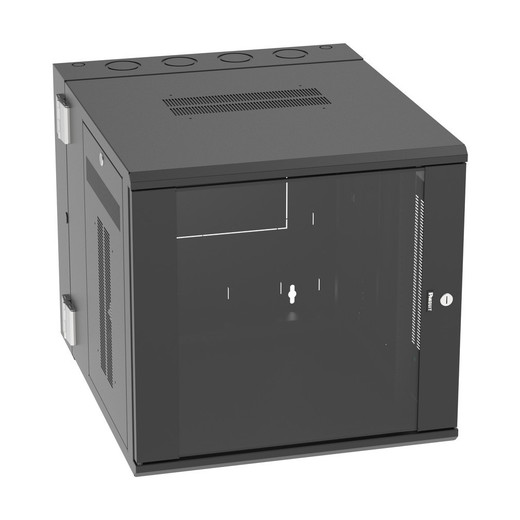

Panduit PZWMC1230W 12U Wall-Mount Network Cabinet

The Panduit PZWMC1230W PanZone™ wall-mount cabinet delivers 12U of EIA-compliant equipment space in a 762mm-deep steel enclosure engineered for enterprise network, security server, and AV control installations where floor space is limited. Windowed front door provides visual equipment status checks without opening the cabinet, while front and rear hinged access plus removable side panels give installers complete reach to mounted gear and horizontal cable managers. Rated for 113.4 kg (250 lb) static load capacity, this cabinet accommodates core switches, patch panels, NVRs, UPS units, and power distribution in telecom rooms, server closets, or secure equipment spaces requiring wall-mounted infrastructure.

Key Features

• 12U vertical mounting space for 19-inch EIA-compliant rack equipment and panels
• 762mm (30-inch) cabinet depth accommodates deep switches, servers, and cable management hardware
• Windowed front door enables visual status monitoring of indicator lights and displays without access
• Front and rear hinged doors with removable side panels provide complete equipment and cabling access
• 113.4 kg (250 lb) static load capacity supports dense network and security server configurations
• Steel construction with black powder-coat finish for commercial and industrial environments
• 604.5mm H × 635mm W × 762mm D (23.8" × 25" × 30") external dimensions for standard wall-mount installations
• Ventilated design supports controlled thermal management for temperature-sensitive network equipment
• Side panel access to vertical cable routing channels for structured low-voltage pathways
• RoHS compliant construction meets environmental and procurement standards

The PZWMC1230W's 762mm cabinet depth is the critical dimension for modern network installations. Unlike shallow 18-inch cabinets that force installers to fight with patch-cable bend radius and obstruct airflow behind equipment, this 30-inch-deep enclosure gives you working room for horizontal cable managers, deep patch panels, enterprise PoE switches with front-to-back cooling, and rack-mount NVRs with full-depth drive cages. The windowed front door isn't cosmetic—it solves the daily operational problem of checking link lights, verifying boot status, or reading front-panel displays on managed switches without unlocking and opening the cabinet. For security integrators running 24/7 recording servers or access control panels, that visual check capability eliminates nuisance service calls. Front and rear hinged doors open to 180 degrees for unobstructed equipment installation; side panels lift off without tools when you need lateral access to vertical cable managers or need to dress fiber bundles and low-voltage home runs entering from the side. The 12U height fits the common deployment of a 24-port PoE switch (1-2U), dual patch panels (2U), managed PDU (1U), network UPS (2-3U), cable management (1-2U), and a small form-factor NVR or environmental monitor (1-2U)—the typical kit for a branch office, retail back room, school IDF closet, or building security headend where you're consolidating IP cameras, access control, and data networking into one protected enclosure.

Thermal management in wall-mount cabinets is often overlooked until equipment starts thermal throttling or NVR drives fail early from heat stress. The PZWMC1230W's ventilated panel design and 30-inch depth create natural convection pathways—hot air rising from switch exhaust vents exits through top ventilation while cooler air enters from the bottom. For installations in unconditioned spaces (parking structure telecom closets, warehouse mezzanine equipment rooms, exterior building alcoves), pair this cabinet with Panduit's fan tray accessories or a filtered fan top to establish active airflow; the cabinet's depth and side-to-side width give you room to mount dual fans without blocking equipment or cable pathways. Cable routing access from removable side panels matters during MACs—when you're adding a new camera zone or expanding access control readers, you're threading new Cat6A or fiber from the cable entry at the bottom through vertical managers on the side rails up to the switch or patch panel. Removing the side panel instead of fighting blind through the rear door or trying to route around installed equipment cuts rough-in time and reduces the risk of snagging installed cables. Horizontal cable managers on the rear of the switch and patch panel work in concert with the cabinet's vertical pathways to maintain the structured separation installers need for TIA-568 compliance and for troubleshooting individual circuits later without disturbing the whole bundle.

The 113.4 kg (250 lb) static load capacity supports fully populated configurations—twelve 1U devices, dense 48-port switches with PoE power supplies, 4U rack-mount NVRs loaded with eight 3.5-inch surveillance drives, or heavy UPS units with internal battery packs. That capacity rating assumes proper wall anchoring into structural studs or concrete using the cabinet's mounting brackets; in drywall-only installations, the load limit is dictated by your wall anchors, not the cabinet. Panduit's PanZone™ line aligns with structured wiring and datacenter standards—the 19-inch mounting rails are tapped for square-hole cage nuts or round-hole screws depending on your equipment, and the 12U vertical spacing follows EIA-310 so there's no fiddling with non-standard hole patterns. For integrators working under BICSI, TIA, or NFPA 70 requirements, the steel construction and RoHS compliance check the boxes for commercial low-voltage specs and municipal procurement rules. This cabinet fits the commercial security and IT install where you need a wall-mounted, lockable, thermally managed enclosure that'll hold a real working load—not a lightweight plastic box or a 12-inch-deep open rack that leaves equipment exposed and creates cable management disasters.
