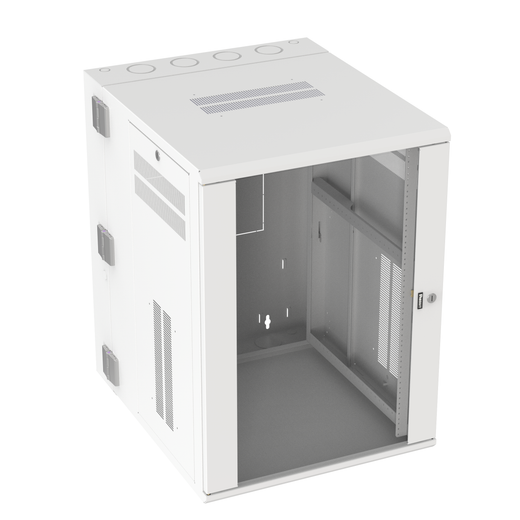

Panduit PZWMC1830WH PanZone 18U Wall-Mount Network Cabinet

The Panduit PZWMC1830WH delivers a full 30-inch depth in an 18U wall-mount form factor, purpose-built for network rooms and telecom closets where floor space is constrained but equipment density demands more than shallow swing-gate enclosures can support. This steel cabinet accommodates standard 19" EIA rack-mount switches, patch panels, and UPS units with front-to-back airflow requirements, while dual hinged doors—front windowed, rear solid—provide complete access for MAC operations without dismounting the enclosure. Rated to 300 lbs (136 kg) distributed load and certified to UL 2416, NEMA 1, and IP20, it bridges the gap between light-duty wall boxes and floor-standing racks for mid-density wiring closets, conference-room AV cores, and edge network deployments where installers need rack-depth equipment support on vertical surfaces.

Key Features

• 18U vertical mounting capacity with 762 mm (30") usable depth—accepts full-depth network switches, patch panels, cable managers, and horizontally-mounted 1U/2U UPS units
• 300 lb (136.08 kg) distributed load rating with reinforced steel construction and factory-installed mounting rails compliant with EIA-310-D 19" rack standards
• Front hinged door with acrylic window for visual equipment status checks; rear hinged door for back-panel access to power and network connections without cabinet removal
• Removable side panels with tool-less quarter-turn fasteners enable lateral cable entry, horizontal wire management, and service access to side-mounted PDUs or vertical cable managers
• Pre-punched top and bottom knockouts for conduit entry, overhead cable tray drops, and floor-penetration routing in multi-story installations
• White powder-coat finish over cold-rolled steel chassis—corrosion-resistant, suitable for office environments, conference rooms, and non-industrial telecom spaces where enclosure aesthetics matter
• Lockable front and rear doors with keyed-alike cylinder locks; optional hasp provisions for high-security padlock upgrades in open-access areas
• Integrated ventilation louvers in top panel and door frame support passive convection cooling; compatible with Panduit and third-party rack-mount fan trays for forced-air thermal management in high-wattage deployments
• UL 2416 listed for information technology equipment enclosures, NEMA 1 rated for indoor use, IP20 ingress protection against solid objects >12.5 mm, RoHS compliant
• Ships flat-packed with pre-assembled door hinges and illustrated instructions; typical two-person installation time under 90 minutes including wall anchoring and equipment transfer

The 30-inch depth is the critical differentiator here. Shallow 18–24" wall cabinets force integrators to choose between rear cable-management space or front equipment compatibility, often leaving insufficient clearance for SFP+ transceivers, rear-facing power inlets, or back-panel service loops. The PZWMC1830WH's 762 mm interior provides 680–710 mm of usable equipment depth depending on door-stop configuration, enough to mount a 600 mm switch with 50 mm rear service loop and 60 mm front cable bend radius—eliminating the kink failures and SFP unseating common in undersized enclosures. The dual-door design supports opposing-side service: network techs access front RJ45 ports and status LEDs through the windowed door during daily moves/adds/changes, while electrical contractors or AV installers work rear AC power distribution and trunk cabling through the back door without disturbing front terminations or requiring a second site visit to re-rack equipment. Removable side panels open the cabinet to horizontal cable routing—critical for installations where overhead J-hooks or underfloor conduits land mid-cabinet rather than top/bottom, and for retrofitting vertical cable managers or side-mount PDUs after initial deployment without unracking live gear.

Load capacity governs real-world equipment density. The 300 lb rating supports typical configurations like (6) 1U 48-port PoE+ switches at ~18 lbs each, (4) 2U patch panels at ~12 lbs, (2) 1U horizontal cable managers, and a rack-mount UPS—leaving 80+ lbs headroom for future adds. Wall-mount installations demand greater scrutiny than floor racks: the cabinet mounts via (4) keyhole slots on the rear frame, requiring 5/8" lag bolts into wood studs or 1/2" wedge anchors into concrete/CMU, with fastener engagement depth meeting local seismic and building codes. Installers must verify wall substrate load capacity exceeds cabinet weight plus equipment plus a 1.5× safety factor—typically requiring blocking between studs in wood-frame construction or structural anchors rated to 400+ lbs each in masonry. The flat-pack shipping reduces freight cost and eases transport into upper floors or through narrow doorways, but field assembly introduces risk of misaligned rail mounting or door sag if hinge screws aren't torqued to spec; using a magnetic torpedo level during rail installation and pre-threading all cage nuts before loading equipment prevents the "racked equipment won't align" service calls that cost return trips.

Thermal management becomes non-negotiable in sealed wall cabinets housing PoE switches pushing 500+ watts in HVAC-marginal spaces like back-of-house storage rooms or above-ceiling plenums. The PZWMC1830WH's louvered top panel and door perforations support passive convection when ambient temperature stays below 25°C and equipment load remains under 350W; beyond that, forced-air cooling via 1U rack-mount fan trays (exhaust-top configuration) or thermostatically controlled side-mount fans becomes necessary to maintain <35°C internal temperature and avoid the thermal shutdowns that kill switch uptime. The IP20 rating permits installation in controlled indoor environments—offices, telecom closets, server rooms—but excludes outdoor, wash-down, or high-dust industrial settings where IP54+ enclosures with gasketed doors and filtered ventilation are required. Cable entry through top/bottom knockouts or side-panel gaps means integrators must provide their own EMT/flex conduit bushings and seal unused penetrations with foam or brush grommets to maintain IP20 protection and prevent rodent intrusion in warehouse or below-grade installations. RoHS compliance matters for federal and California state contracts where non-compliant equipment triggers bid rejection; UL 2416 listing covers the enclosure itself but does not certify rack-mounted equipment, so integrators must verify switches, PDUs, and other installed gear carry their own UL/cUL marks to satisfy AHJ inspections during occupancy permitting. The white finish suits corporate, healthcare, and education environments where black or gray steel enclosures visually clash with office millwork or patient-area aesthetics, reducing the "can we paint it?" requests that void UL listings and add non-value labor to project budgets.
