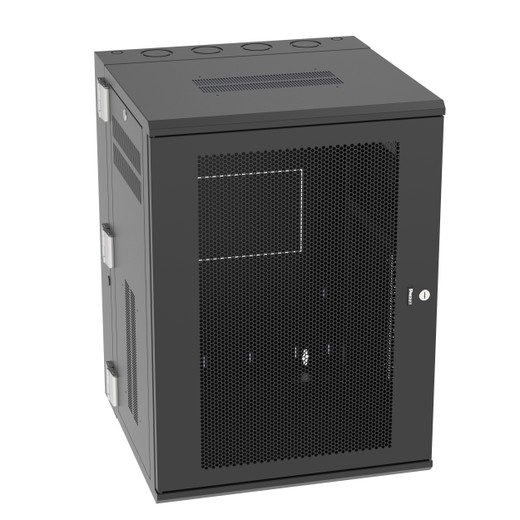

Panduit PZWMC18P 18U Wall-Mount Network Cabinet

The Panduit PZWMC18P PanZone wall-mount enclosure delivers 18 rack units of equipment capacity in a 25-inch-deep steel cabinet engineered for distributed network closets, equipment rooms, and security system installations where floor space is limited. Designed for commercial integrators deploying switches, patch panels, NVRs, and access control hardware, this cabinet combines 300-pound load capacity with dual-access hinged doors and tool-free removable side panels. The perforated front door provides passive airflow to prevent heat buildup in rack-mounted active equipment, while the 635mm mounting depth accommodates standard 19-inch EIA gear plus rear cable management accessories. Wall-mount construction keeps critical infrastructure off the floor in spaces like retail back offices, school IDF closets, and mid-rise building telecom rooms where rack footprint matters.

Key Features

• 18U vertical rack capacity with 483mm (19-inch) EIA-compliant mounting rails
• 300-pound (136 kg) static load rating supports fully populated switch/patch/UPS configurations
• 25-inch (635mm) usable depth fits deep switches, 1U servers, and rear cable managers
• Perforated steel front door provides passive thermal ventilation for active equipment
• Front and rear hinged doors enable access to both equipment faces without cabinet relocation
• Tool-free removable side panels expose vertical cable pathways and side-mount accessories
• Cold-rolled steel construction with black powder coat finish
• Wall-mounting hardware included for stud or concrete installation
• RoHS compliant for procurement documentation

The PZWMC18P's cold-rolled steel frame handles the mechanical demands of fully loaded enterprise network deployments. With a 300-pound static load capacity, the cabinet supports dense configurations including a 24-port PoE+ switch (30-40 lbs), two 1U cable managers, a 16-channel NVR with drives installed (25-35 lbs), a 1U UPS (40-50 lbs), and multiple patch panels—typical for a building floor or department-level distribution point. The 34-inch overall height (863.6mm) and 25-inch width (635mm) maintain a compact wall footprint, critical in retrofit projects where telecom closet space is already constrained by HVAC, electrical panels, or janitorial storage. Mounting rails conform to EIA-310-D spacing, ensuring compatibility with all standard 19-inch rack gear and eliminating adapter brackets or rail modifications. The 635mm usable depth accommodates equipment with rear-projecting connectors or cable arms—deeper than entry-level 18-inch cabinets that force installers to relocate power supplies or trim cable service loops. This depth specification matters when racking enterprise switches with rear cable management arms, 1U servers with extended power supplies, or UPS units with rear-terminal battery connections. Integrators spec'ing equipment for multi-floor office buildings or campus environments can confidently load this cabinet with mixed-vendor gear without discovering mid-install that a critical piece won't fit the mounting depth.

Dual-access design reduces service time and cabinet repositioning during adds, moves, and changes. The front door swings open on continuous hinges for equipment installation and port access, while the rear door provides direct reach to cable terminations, power distribution, and fiber patch panel outputs without disturbing front-facing connections. This matters during after-hours maintenance windows when a single technician needs to trace cables, swap modules, or photograph port maps—rear access eliminates the need to photograph connections, close the door, move equipment, and reopen. Side panels lift off without tools once the cabinet is mounted, exposing vertical cable runways for pulling backbone cables or adding side-mount power strips. Installers working in occupied buildings appreciate the ability to prep cables while the cabinet remains locked and operational—side access doesn't require front-door entry or interrupt live equipment. The continuous hinge design on both doors eliminates the weak point of stamped pin hinges found on budget enclosures, where repeated door swings cause hinge sag or pin failure after 18-24 months in high-traffic equipment rooms. For integrators maintaining service contracts on multi-site installations, this construction detail translates to fewer warranty callbacks and longer cabinet service life in schools or retail chains where facility staff routinely open cabinets to reset equipment or check cable labels.

The perforated front door manages heat in passively cooled installations where adding active exhaust fans isn't feasible or allowed by building management. Perforations cover approximately 65% of the door surface, enabling convective airflow from bottom to top as rack-mounted switches, NVRs, and PoE injectors generate heat during operation. This passive ventilation suits deployments with moderate thermal loads—think a single 24-port PoE switch (150W heat dissipation), a fanless NVR, and passive patch panels—where ambient room cooling keeps inlet air below 25°C (77°F). The design does not include active fans or sealed doors with filters; if you're housing high-wattage switches (370W+ PoE budget), blade servers, or equipment in unconditioned spaces, plan for supplemental ventilation or specify an actively cooled enclosure. The rear door is also perforated, creating a front-to-back airflow path when both doors are closed, although most integrators leave the rear door open or remove it entirely in secured equipment rooms where physical access is already controlled. Understanding thermal load matters when designing distributed network installations: a fully-loaded PoE switch powering 24 IP cameras at 25W each dissipates roughly 650W total (accounting for PSU efficiency losses), generating enough heat to cause thermal shutdown in a sealed enclosure within 30-45 minutes. The PZWMC18P's perforated design prevents this failure mode in typical installations, but integrators should calculate actual heat load based on equipment nameplates and verify that room HVAC can handle the cumulative BTU output, especially in telecom closets shared with water heaters or laundry equipment in multi-tenant buildings.

Wall-mounting strategy depends on construction type and load distribution. The cabinet ships with mounting hardware suitable for wood stud installation (lag bolts into 2x4 or 2x6 framing) or concrete/CMU walls (expansion anchors). For drywall-only installations, integrators must locate studs or install backing板 between studs before mounting—drywall anchors alone cannot support 300 pounds of loaded equipment. The cabinet's weight distribution concentrates load on the top mounting points when fully racked, so verify that wall framing can handle point loads of 150+ pounds per mounting location. In seismic zones (California, Pacific Northwest, Alaska), check local building codes for additional bracing requirements on wall-mounted equipment exceeding 50 pounds—some jurisdictions require diagonal bracing or seismic retention cables on cabinet installations. The 34-inch height allows installation with bottom clearance for cable entry conduits or floor-level raceways while keeping the top of the cabinet below typical 8-foot ceiling height, leaving clearance for overhead cable trays or HVAC ducts. This dimension matters in retrofit projects where existing infrastructure can't be relocated and new equipment must fit available vertical space.

The PZWMC18P ships with wall-mounting hardware and meets EIA-310-D and RoHS standards, ensuring compatibility with enterprise procurement requirements and LEED material documentation. The black powder-coat finish resists scratches during installation and blends into equipment room aesthetics—no exposed zinc plating or unfinished steel. For security and IT integrators working in schools, hospitals, corporate offices, or retail chains, this cabinet delivers the structural capacity and access flexibility needed to install and maintain multi-vendor network stacks without retrofitting mounting rails, adding structural reinforcement, or scheduling return visits to complete cable dressing. The PanZone series represents Panduit's mid-tier offering: more robust than residential-grade network boxes sold through electrical distributors, but less expensive than telecommunications-grade enclosures with active thermal management and multi-point locking systems. This positions the PZWMC18P for the bulk of commercial integration work where budgets allow for quality infrastructure components but don't justify datacenter-class cabinets for edge distribution points. It's built for the job where 18U of gear needs to live on the wall, stay cool, and remain accessible when you're back on-site at 11 PM tracing a tagged VLAN or troubleshooting a camera that dropped offline during a storm.
