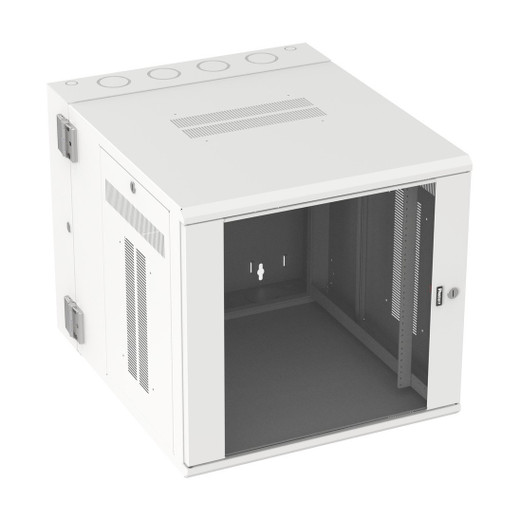

Panduit PZWMC1230WH PanZone 12U Wall-Mount Network Enclosure

The Panduit PZWMC1230WH delivers 30-inch depth and 250-pound load capacity in a wall-mount enclosure, purpose-built for intermediate distribution frames, edge server deployments, and high-density switching installs where rack depth and structural capacity are non-negotiable. This 12U PanZone cabinet accommodates full-depth UPS units, modular PoE switches, and stacked patch panels without the compromises typical of shallow wall-mount enclosures. Front and rear hinged doors with tempered glass windows provide tool-free access to equipment faces and rear I/O, while removable side panels expose cable pathways for MACs without equipment shutdown. Steel construction with UL 2416 and NEMA 1 ratings meets enterprise and datacenter standards for IDF closets, retail back-of-house network nodes, and surveillance head-end installations where wall real estate is constrained but equipment density is not.

Key Features

• 12U vertical rack space accepts standard 19-inch EIA equipment - switches, patch panels, UPS, media converters, and NVRs
• 30-inch (762mm) cabinet depth accommodates deep modular switches, full-size UPS chassis, and rear cable management without equipment overhang
• 250-pound (113.4kg) load capacity supports stacked PoE switches, enterprise-grade UPS units, and high-density copper or fiber patch fields
• Front and rear hinged doors with tempered glass windows allow visual equipment status checks without opening cabinet or interrupting airflow
• Removable side panels provide unrestricted access to vertical cable managers, horizontal troughs, and side-entry conduit without disassembling rack
• Steel construction with white powder-coat finish resists corrosion in climate-controlled server rooms and provides neutral aesthetic for front-of-house installs
• UL 2416 enclosure system certification, NEMA 1 indoor rating, and IP20 ingress protection meet building code and datacenter compliance requirements
• Integrated ventilation design supports passive cooling for heat-generating equipment - PoE switches, 10GbE aggregation, and AC-input UPS
• Pre-installed mounting hardware and leveling provisions simplify single-tech wall installation on wood studs or concrete block
• RoHS compliant construction meets federal and state e-waste regulations for California, New York, and EU export markets

The 30-inch internal depth is the critical dimension separating this enclosure from 18-inch and 24-inch shallow cabinets commonly spec'd for wall-mount IDF applications. Modern enterprise switches - Cisco Catalyst, HPE Aruba, Juniper EX series - frequently exceed 24 inches front-to-back when you account for rear cable bend radius, power cord clearance, and removable power supply modules. The PZWMC1230WH's 762mm usable depth provides 6+ inches of rear clearance for Cat6A patch cords with thick boots, redundant AC power cords to separate UPS circuits, and SFP+ DAC cables without stress on connectors or equipment rails. This depth also accommodates full-size tower UPS units (APC Smart-UPS, Eaton 5P) that won't fit in contractor-grade 24-inch cabinets, eliminating the need for separate floor-standing UPS and the associated conduit runs.

Load capacity becomes the constraint in retail, educational, and multi-tenant office deployments where a single IDF closet serves 200+ data drops and two dozen PoE cameras. A fully populated 12U cabinet in these environments might include a 48-port PoE switch (40 lbs), a 24-port fiber aggregation switch (25 lbs), two 1U patch panels (8 lbs each), a 2U UPS (60 lbs), and horizontal cable management (15 lbs) - totaling 156 pounds before cabling. Add structured copper bundles, fiber trunk assemblies, and equipment power cords, and total load approaches 200 pounds. The PZWMC1230WH's 250-pound rating provides 25% overhead, meeting the safety factor required by most datacenter standards and eliminating the wall stud reinforcement or steel backing plates needed with consumer-grade cabinets rated at 150 pounds. Wall mounting requires securing the cabinet to structural members - wood studs, steel studs with backing, or masonry with expansion anchors - per the load chart in Panduit's installation guide. For installations on drywall over metal studs, toggle bolts or structural backing are mandatory; for concrete block or poured walls, 3/8-inch wedge anchors are standard.

Hinged front and rear doors with tempered glass windows are purpose-built for environments where visual equipment monitoring - switch activity LEDs, UPS status displays, patch panel port labels - inform troubleshooting without opening the enclosure and disrupting controlled airflow. In server rooms with hot-aisle/cold-aisle separation, opening an enclosure door disrupts pressure differentials and thermal zones; the glass window allows techs to verify link lights, check UPS battery status, and read equipment labels from outside the thermal envelope. Rear door access is critical for equipment with back-to-front airflow (Juniper EX4300, Aruba CX6300) where hot exhaust exits the rear and must vent into the room or plenum. Both doors use continuous hinges for 180-degree swing and lift-off capability when door removal is needed for equipment installation. Doors lock with keyed cam locks (keys included) meeting insurance and PCI-DSS physical security requirements for payment networks and healthcare.

Removable side panels distinguish this enclosure from welded or riveted cabinets where cable pathway access requires unmounting equipment or fishing cables blind through vertical channels. In a live production network, adding a new switch or replacing a failed power supply often means routing new copper or fiber through existing cable bundles without pulling equipment. The PZWMC1230WH's side panels lift off after removing six screws, exposing the full vertical height of the cabinet's internal frame, both vertical cable managers, and all horizontal trough mounting points. This side access is essential when integrating ladder rack or cable tray from adjacent spaces - you can feed large bundles (100+ Cat6A cables, 72-fiber trunk assemblies) horizontally through the side panel opening instead of threading individual cables through top or bottom knockouts. The panel design also supports split installs where copper structured cabling and fiber backbone enter from opposite sides of the closet.

Steel construction with 16-gauge formed panels provides the rigidity needed to prevent cabinet flex when equipment is installed or removed. Flex in wall-mount enclosures creates two problems: equipment rails go out of parallel (causing binding when sliding rack-mount gear), and wall fasteners experience shear loading during equipment service. The PZWMC1230WH's formed-steel frame with welded corner reinforcements maintains dimensional stability under full load, ensuring equipment rails stay within the ±1mm tolerance required by EIA-310-D rack standards. White powder-coat finish over phosphate pre-treatment provides corrosion resistance in climate-controlled environments and matches the neutral color palette in healthcare, retail, and hospitality installs where network closets share space with general storage or are visible to occupants. For harsher environments - parking garages, loading docks, exterior soffits - consider NEMA 3R or NEMA 4 rated outdoor enclosures instead.

UL 2416 certification is the nationally recognized safety standard for information technology equipment enclosures, covering structural integrity, grounding continuity, and fire resistance. This certification is required by most building inspectors for permanent network installations and is explicitly called out in BICSI TDMM, TIA-569, and datacenter design standards. NEMA 1 rating confirms the enclosure provides protection against contact with internal equipment and falling dirt, but is not rated for washdown, outdoor exposure, or corrosive atmospheres. IP20 ingress protection (protection against solid objects >12.5mm, no water protection) aligns with indoor IT equipment standards and meets the baseline requirement for most commercial office and retail environments. For installations requiring dust protection (warehouses, manufacturing) or water resistance (semi-outdoor soffits), specify NEMA 12 (IP54) or higher-rated enclosures.

Ventilation is passive in this enclosure - top and bottom perforations allow convective airflow when equipment exhaust rises and cool air is drawn from below. This passive design works for equipment with internal fans (switches, routers, NVRs) but is insufficient for high-wattage density above 1.5 kW per cabinet. If your 12U load includes multiple high-wattage PoE switches (Cisco 9300 with 1100W PoE budget, UniFi Pro Max 48 PoE), add thermostat-controlled fan trays (Panduit CMFAN1U) or specify active cooling models from Panduit's CMRWEC series. For telecommunications rooms with no HVAC, ambient temperature and equipment duty cycle determine whether passive ventilation is adequate - run thermal modeling or monitor in-cabinet temperature with data loggers during peak load. Cabinet temperature above 30°C (86°F) accelerates equipment failure rates and voids some manufacturer warranties.

The PanZone ecosystem extends beyond enclosures to vertical cable managers, horizontal finger ducts, grounding kits, PDUs, and equipment shelves, all designed to interoperate on 19-inch EIA rack standards. When spec'ing a complete IDF closet, pair this enclosure with Panduit CMVR2E vertical managers for front cable management, CMHF1U horizontal ducts between equipment, a CMRPG1 grounding kit for NEC Article 250 compliance, and a CMRPDU15A PDU for circuit-level monitoring. This integrated approach simplifies procurement, ensures dimensional compatibility, and reduces field rework compared to mixing enclosure, cable management, and power from multiple vendors. For fiber-intensive installs (10G or 40G uplinks, SAN connections), add Panduit FAP enclosures or splice trays to organize breakout and patch assemblies inside the cabinet.

White finish is specified when network enclosures install in medical facilities (patient floors, imaging suites), retail front-of-house (sales floors, fitting rooms), or multi-tenant office lobbies where black IT equipment clashes with interior finishes. In these environments, the neutral white cabinet blends with walls, millwork, and ceiling systems while still meeting UL and NEMA requirements. For traditional datacenter or telecom room installs where aesthetics are not a concern, black versions of the same enclosure (PZWMC1230) are available at identical specs.
