Panduit F92ERANB1SNM009 9m OS2 SC/APC-LC/APC Patch Cord

Panduit F92ERANB1SNM009 OS2 Single-Mode Fiber Patch Cord

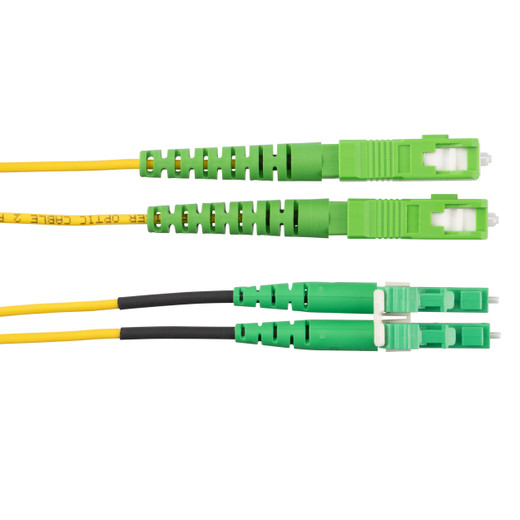

The Panduit F92ERANB1SNM009 Opti-Core fiber optic patch cord delivers OS2 single-mode performance in a compact 1.6mm duplex cable assembly, terminated with SC/APC and LC/APC connectors across a 9-meter span. Designed for datacenter, enterprise backbone, and long-haul network applications, this riser-rated (OFNR) jumper provides the low insertion loss and minimal back reflection required for 10G, 40G, and 100G Ethernet deployments. The yellow jacket follows TIA-598-C color coding conventions for instant OS2 identification in dense fiber environments.

Key Features

• OS2 single-mode fiber supports transmission distances up to 10 km at 10 Gbps, 40 km at 1 Gbps
• SC/APC to LC/APC angled physical contact connectors deliver <-60 dB return loss, critical for DWDM and high-bitrate systems
• 1.6mm duplex cable diameter enables high-density routing through congested pathways and cable managers
• OFNR vertical riser rating meets NEC Article 770 for installation in vertical shafts and non-plenum risers
• 9-meter (29.5 ft) length bridges rack-to-rack connections in mid-sized datacenter rows or distribution frames
• Factory-terminated and tested for guaranteed insertion loss performance out of the box

Single-mode OS2 fiber is the backbone of modern datacenter and campus networks, offering virtually unlimited bandwidth over distances that far exceed multimode capabilities. The F92ERANB1SNM009 uses 9/125 µm core/cladding geometry optimized for 1310 nm and 1550 nm wavelengths, making it compatible with both short-reach 10GBASE-LR transceivers and long-haul DWDM systems. Unlike OS1 cable (typically indoor-only tight-buffered constructions), OS2 specifications guarantee <1.0 dB/km attenuation across the full C-band, ensuring headroom for future 400G and coherent optics upgrades without re-cabling.

Both connectors use APC (angled physical contact) 8-degree end-face polish rather than flat UPC terminations. This design reflects any residual light into the cladding instead of back toward the source, reducing return loss to below -60 dB—ten times better than UPC's -50 dB typical performance. That matters in three scenarios: analog RF-over-fiber links (CATV headends, DAS), high-power laser systems where back reflection can damage transmitters, and dense wavelength-division multiplexing where crosstalk between channels must stay below -40 dB. The green connector boots on APC terminations provide tactile and visual confirmation, preventing accidental mating with UPC ports that would cause immediate 0.5+ dB insertion loss penalties and potential connector damage.

The 1.6mm duplex zipcord construction uses two 900 µm tight-buffered fibers in a low-smoke, riser-rated jacket. At half the diameter of traditional 3.0mm cordage, these slim jumpers reduce bundle cross-section by 75%, doubling the usable fill capacity of cable trays, overhead ladder rack, and vertical managers. Installers working in retrofit scenarios—adding 100G uplinks to existing ToR switches, for example—gain the slack management and bend radius compliance needed to thread new paths without removing legacy infrastructure. The OFNR flame rating satisfies NEC 770.154(A) for general-purpose vertical runs between floors, though plenum spaces require the OFNP-rated equivalents from Panduit's catalog.

SC and LC represent the two dominant connector families in enterprise and service provider networks. SC's push-pull coupling mechanism and 2.5mm ferrule have been the datacenter standard since the 1990s, commonly found on older switches, media converters, and GBIC transceivers. LC's reduced 1.25mm ferrule and RJ-45-style latch enable double the port density—critical for SFP+ and QSFP28 modules where faceplate real estate determines switching capacity. The F92ERANB1SNM009's hybrid SC-to-LC configuration bridges these domains: SC side typically connects to legacy distribution switches, DWDM mux/demux chassis, or fiber patch panels provisioned before 2010, while the LC end plugs into modern 10G/25G server NICs, top-of-rack switches, or SAN storage controllers. This eliminates the need for midspan SC-LC mating adapters that introduce additional insertion loss (0.2-0.3 dB each) and failure points.

The 9-meter length fits the 20-30 foot rack-to-rack spacing common in datacenter hot-aisle/cold-aisle layouts and telecommunications equipment rooms. It provides enough slack for proper service loops at both ends—six inches minimum per TIA-568 guidelines—while avoiding the excess coil bulk that 15-meter jumpers force into cable managers. For hyperscale deployments using structured mid-row or end-of-row patching architectures, these jumpers connect access switches to aggregation layers without the signal budget waste of oversized cable. The factory-specified insertion loss includes connector and fiber attenuation across the full 9 m span, so link budget calculations can use the Panduit test report values directly rather than estimating from per-kilometer fiber specs.

Panduit Opti-Core patch cords ship with individual test reports documenting insertion loss at 1310 nm and 1550 nm, return loss, and length measurements traceable to NIST standards. Every connector end-face is inspected for scratches, contamination, and geometry defects per IEC 61300-3-35 before leaving the factory. This lot-level quality control reduces field failures and eliminates the need for on-site termination and testing, cutting installation labor by 80% compared to field-terminated bulk fiber. The yellow PVC jacket is sunlight-resistant and rated for 0°C to 60°C operation, suitable for unheated telecom closets and equipment rooms without environmental controls. Carton quantity is ten units, allowing project managers to stock common jumper configurations without overbuying odd-lot quantities that sit unused after turnover.

OS2 single-mode infrastructure is a 20-30 year investment—transceivers and electronics will cycle through multiple technology generations (10G → 25G → 100G → 400G) while the fiber itself remains unchanged. Specifying APC-terminated jumpers from the start avoids costly retrofit campaigns when deploying noise-sensitive coherent optics or expanding DWDM channel counts. The F92ERANB1SNM009 provides the physical-layer foundation for scalable datacenter fabrics, storage area networks, and building backbone distribution systems where performance, density, and long-term reliability determine total cost of ownership.
