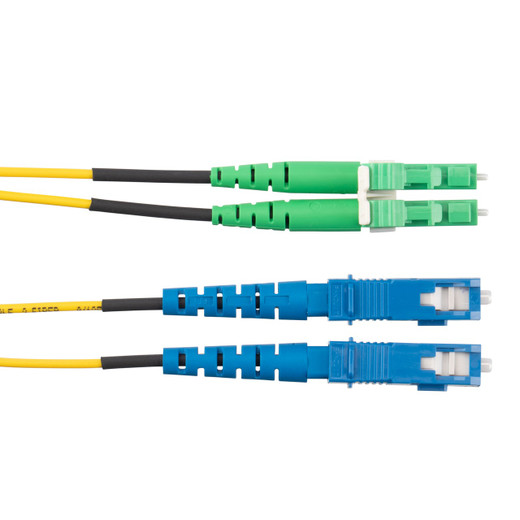

Panduit F92ERB1SNSNM009 Opti-Core OS2 Single-Mode Fiber Patch Cord
The Panduit F92ERB1SNSNM009 is a 9-meter OS2 single-mode fiber patch cord with LC/APC to SC duplex connectors, designed for high-bandwidth datacenter, telecom, and enterprise network deployments. This Opti-Core cable features a 1.6mm jacket, 9-micron core fiber, and OFNR vertical conductor rating for riser installations. Standard polarity and low insertion loss make it suitable for structured cabling systems where reliability and signal integrity are non-negotiable.
Key Features
- OS2 single-mode fiber for long-haul, high-bandwidth applications up to 10G/40G/100G
- LC/APC angled physical contact connectors on one end minimize back reflection below -60dB
- SC connectors on opposite end for equipment/patch panel termination
- 9-micron core diameter optimized for telecom and datacenter use
- OFNR (vertical conductor) flammability rating per EN 60332-1-2 for riser pathways
- 1.6mm duplex cable diameter for high-density rack and cable management
- Yellow jacket for instant single-mode identification in mixed-fiber environments
- Standard polarity eliminates guesswork during moves/adds/changes
- 9-meter (29.52 ft) length handles typical rack-to-equipment or cross-connect runs
OS2 fiber is the industry standard for single-mode applications requiring high bandwidth over extended distances—think 10GBASE-LR, 40GBASE-LR4, or 100GBASE-LR4 links that can reach 10km or more. The 9-micron core handles these wavelengths (1310nm, 1550nm) with minimal dispersion, making this cable appropriate for inter-building links, central office connections, or datacenter spine/leaf topologies. The LC/APC connectors use an 8-degree angled polish to direct reflected light into the cladding rather than back toward the source, critical for high-power laser transmitters in DWDM or CWDM systems where even -40dB return loss can cause bit errors. The opposite SC connector is a workhorse termination found on legacy equipment, media converters, and many fiber distribution panels. Standard polarity means Fiber A transmits on one strand while Fiber B receives on the other—no crossover confusion during installs. Panduit specs this cord for standard insertion loss, typically ≤0.5dB including both connectors, which leaves headroom in your link budget even after multiple bulkhead connections.
Use this cord in riser pathways—vertical runs between floors in commercial buildings—where OFNR rating satisfies NEC Article 770 without requiring plenum-rated (OFNP) cable. The 9-meter length is long enough to reach from a telecom room on one floor to an IDF closet one level up, or to span rack rows in a medium-sized datacenter. The 1.6mm duplex diameter is narrower than zipcord (2.0mm) or 3.0mm round cable, so it threads through congested cable managers and leaves breathing room in 1U horizontal organizers. Yellow jacketing is the universal single-mode color code; your techs won't mistake it for OM3/OM4 multimode (aqua) or OM5 (lime green) during a live-fiber cutover. The LC form factor is ubiquitous on SFP/SFP+/SFP28 transceivers, making this cable a go-to for server-NIC to switch-port connections or switch-to-switch uplinks. SC is still common on older Cisco, Juniper, and Arista gear, so this hybrid LC/SC cord bridges new and legacy infrastructure without requiring a bulkhead adapter that adds another 0.3dB loss.
EN 60332-1-2 compliance (vertical flame test) and OFNR construction mean this cable passes municipal electrical inspections for riser installations, eliminating the risk of failed walk-throughs or red-tags from the AHJ. Panduit's Opti-Core line is factory-terminated and tested, so you're not gambling on field-polish quality or cleanliness—every connector ships with a dust cap and a test report traceable to the 10-pack carton. When your SLA hinges on ≤0.5dB insertion loss and ≤-60dB return loss, factory precision beats field termination every time.
