Panduit F92ELB1SNSNM009 Opti-Core OS2 Single-Mode Fiber Patch Cord

The Panduit F92ELB1SNSNM009 delivers OS2 single-mode fiber connectivity between LC and SC interfaces in a 9-meter duplex configuration. Built for datacenter, telecom, and enterprise fiber backbones, this Opti-Core patch cord combines 1.6mm tight-bend cable construction with APC-polished LC connectors and LSZH jacketing to meet the demands of high-density installations and stringent fire-safety codes. Yellow jacket color-coding follows TIA-598-C standards for instant OS2 identification in mixed-fiber environments.

Key Features

OS2 single-mode fiber (9/125µm) rated for distances up to 10km at 10G, 40km+ at 1G

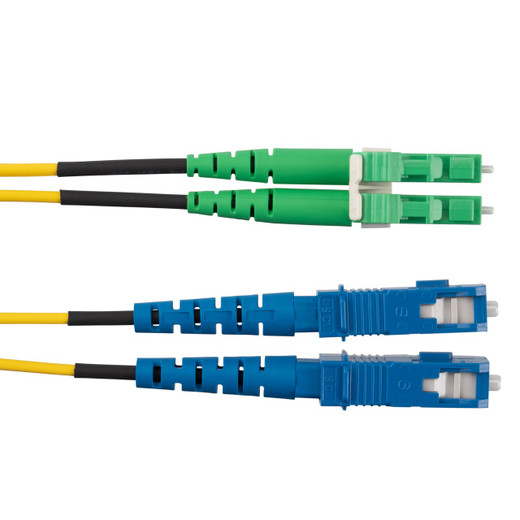

LC/APC duplex connector on one end, SC duplex on the other — angled physical contact reduces return loss to <-60dB

1.6mm cable diameter enables tight bend radius (10x cable diameter) for high-density patch panels and cable management

LSZH (low smoke zero halogen) jacket meets IEC 60332-1 and 60754-2 fire-safety requirements for enclosed spaces

Factory-terminated with insertion loss ≤0.5dB typical — eliminates field-polishing inconsistency

9-meter length suits datacenter row-to-row connections and equipment-room cross-connects

Opti-Core construction: aramid yarn strength members, tight-buffered 900µm fiber, PVC inner jacket

OS2 single-mode fiber is the backbone of long-haul and high-bandwidth applications — 10GBASE-LR, 40G/100G optics, DWDM transport, and FTTP deployments all require the low attenuation and wide modal bandwidth that only 9/125µm core geometry can deliver. The F92ELB1SNSNM009's APC (angled physical contact) polish on the LC side cuts return loss by an order of magnitude compared to UPC polish, critical when interfacing with DWDM gear, high-power lasers, or RF-over-fiber systems where back-reflection can destabilize the light source. SC connectors on the opposite end maintain compatibility with legacy telecom equipment, media converters, and older switches that haven't migrated to LC — this LC-to-SC hybrid config is common in environments transitioning from SC-based infrastructure to LC-based active gear. The 1.6mm cable diameter is half the size of standard 3mm cordage, letting you double patch-panel density and maintain minimum bend radius (16mm) in shallow horizontal managers and vertical wire guides. LSZH jacketing is mandatory in EU installations per CPR (Construction Products Regulation) and widely specified in US datacenters, hospital IT closets, and transportation hubs where PVC combustion products pose life-safety risks.

Deploy this patch cord in datacenter east-west links between top-of-rack switches and spine aggregation layers, in telecom central offices for OLT-to-distribution connections, or in enterprise campuses where fiber runs traverse between buildings via underground conduit and terminate on SC-based media converters at building entries. The 9-meter length covers typical datacenter row spans (25-30 feet) with enough service loop for future re-patching, and the duplex configuration supports bi-directional 1G/10G/25G links without needing separate TX/RX cordage. Factory termination and insertion-loss testing (≤0.5dB typical, per Panduit's process control) mean you're not burning hours on fusion splicing or field-polish rework — every connector ships with a protective dust cap and performs to spec out of the bag. Aramid yarn strength members handle the pull tension of horizontal cable trays and vertical riser pathways, and the tight-buffered 900µm construction resists crush damage in congested conduit fills.

This patch cord meets TIA-568-C.3 performance requirements for OS2 fiber, IEC 60332-1 flammability, and IEC 60754-2 halogen-content limits. The APC polish follows IEC 61755-3-2 geometry standards (8° end-face angle), ensuring return loss stays below -60dB even after multiple mate/de-mate cycles. When your design calls for low-loss, high-return-loss single-mode connectivity between dissimilar connector interfaces in a fire-rated, high-density environment, the Panduit F92ELB1SNSNM009 delivers field-proven Opti-Core reliability without the lead time or quality variability of field-terminated alternatives.
