Panduit FCS9N-12-LAR OS2 12-Fiber LC Duplex APC Splice Cassette

Overview

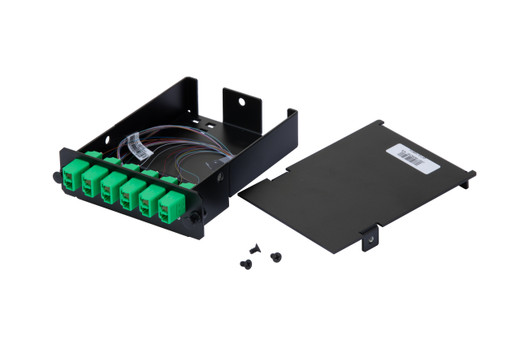

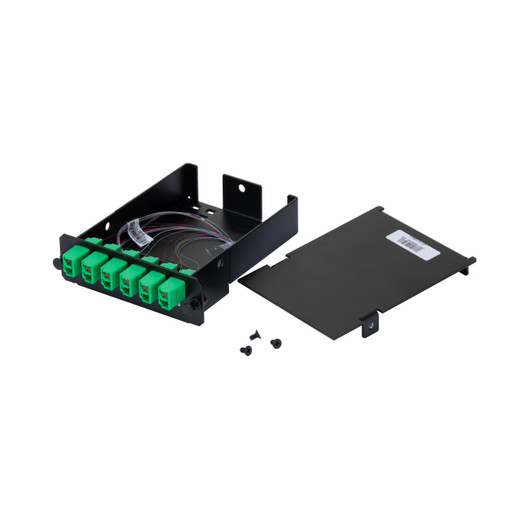

The Panduit FCS9N-12-LAR is a pre-loaded 12-fiber OS2 single-mode splice cassette from the Panduit Opticom fiber management line, designed for structured cabling deployments where clean, modular fiber termination in an enclosure is required. It ships with 12 LC Duplex APC connectors pre-installed on one side and unterminated OS2 fibers on the splice side — the format favored when field-fusion-spliced runs terminate inside a centralized patch enclosure rather than at individual panel connectors. If you are building out a fiber optic patch panel or cassette enclosure system and need APC-grade returns on your single-mode plant, the FCS9N-12-LAR is the cassette to spec.

Key Features

• LC Duplex APC Connectors (12-fiber): APC (angled physical contact) connectors deliver return loss typically better than -65 dB, compared to -55 dB for UPC. That difference is material in DWDM, CATV, and FTTx links where back-reflections cause signal degradation — if your application is sensitive to return loss, APC is the correct choice and UPC variants cannot be substituted.
• OS2 Single-Mode Fiber, 9µm: The 9-micron core diameter confirms this cassette is built for long-haul single-mode runs, not OM3/OM4 multimode. Deploy it on backbone runs between IDFs and MDFs, inter-building links, or any span where distance or wavelength (1310/1550nm) demands single-mode glass.
• Unterminated Splice Side: The opposite end is bare fiber, not factory-connectorized. This is intentional — fusion splicing the incoming cable directly to the pigtails inside the cassette eliminates a connector interface, reducing insertion loss in the link budget. Plan for a fusion splicer on-site during installation.
• Steel Cassette Housing: The steel body resists crush and impact better than plastic-bodied alternatives in busy fiber optic enclosures where cable management and repeated access are routine. It also contributes to EMI shielding inside metal racks.
• Opticom Modular System Compatibility: As part of Panduit's Opticom platform, the FCS9N-12-LAR slides into compatible Opticom enclosures without tools — the cassette-based approach means you can populate a chassis incrementally, adding fiber capacity one 12-fiber cassette at a time rather than over-building upfront. Pair with a compatible OS2 LC APC patch cable on the front port side.
• Compact 12-Fiber Per Cassette: Each cassette handles one dozen fibers — sized right for per-floor or per-zone distribution points. For higher-density needs, multiple cassettes stack in the same enclosure rather than requiring a different product family.

Integration & Compatibility

The FCS9N-12-LAR (often searched as FCS9N 12 LAR) integrates with Panduit Opticom-compatible chassis enclosures. Front-side connectivity requires LC Duplex APC patch cords — do not mix APC cassettes with UPC patch cords; the angle mismatch increases return loss and defeats the purpose of APC termination. The splice side accepts standard 9µm OS2 single-mode pigtails or direct fiber fusion. Verify chassis slot compatibility against Panduit Opticom enclosure documentation before ordering.

What's in the Box

• 1x Panduit FCS9N-12-LAR OS2 12-Fiber LC Duplex APC Splice Cassette

Frequently Asked Questions

Q: What is the difference between the APC connectors on the FCS9N-12-LAR and UPC connectors?

A: APC (angled physical contact) connectors use an 8-degree angled ferrule that reflects back-reflections away from the fiber core, delivering return loss typically better than -65 dB. UPC connectors return approximately -55 dB. For DWDM, CATV, and FTTx applications where back-reflection causes signal issues, APC is the correct choice. The two types are not interchangeable — APC connectors have a green housing and cannot mate with UPC connectors without optical penalty.

Q: Is the FCS9N-12-LAR compatible with multimode OM3 or OM4 fiber?

A: No. The FCS9N-12-LAR is an OS2 single-mode cassette with a 9µm fiber diameter. It is not compatible with OM3 or OM4 multimode fiber (50µm or 62.5µm core). Attempting to splice multimode fiber to these OS2 pigtails would result in severe insertion loss. Select a multimode cassette variant for OM3/OM4 plant.

Q: Does the FCS9N-12-LAR come pre-connectorized on both ends?

A: No. The FCS9N-12-LAR has LC Duplex APC connectors factory-installed on the front (patch) side and unterminated bare OS2 fibers on the splice side. The splice side requires on-site fusion splicing to your incoming cable. This is by design — fusion splices inside the cassette reduce connector interfaces and improve overall link loss budget.

Q: What enclosure does the FCS9N-12-LAR mount into?

A: The FCS9N-12-LAR is designed for Panduit Opticom-compatible fiber enclosures and chassis. Verify the specific enclosure model's cassette slot compatibility against Panduit Opticom documentation before ordering, as cassette form factor and latch style must match the chassis.

Q: What is the fiber count per cassette, and can I add more capacity later?

A: Each FCS9N-12-LAR cassette handles 12 fibers (6 LC Duplex ports on the front). The Opticom modular system allows you to add cassettes incrementally to a populated chassis — you do not need to replace the enclosure to increase fiber count, just add cassettes as your needs grow.

Marty Allison

The FCS9N-12-LAR is a cassette I recommend specifically when the design calls for APC termination on OS2 backbone runs — the LC Duplex APC front connectors and fusion-splice rear make it the right fit for loss-sensitive links where UPC return loss headroom just isn't enough. That 9µm OS2 spec tells you exactly what plant this belongs in: single-mode backbone, not multimode horizontal.

Technical Highlights:

• LC Duplex APC Front Ports: APC's angled ferrule drives return loss beyond -65 dB — a decisive margin over UPC's -55 dB in wavelength-division or analog optical links where back-reflection matters.
• 12-Fiber OS2, 9µm Core: Single-mode glass throughout means this cassette handles 1310nm and 1550nm transmission without the modal dispersion ceiling that limits multimode — correct for inter-building or long-haul backbone segments.
• Steel Housing: The steel body holds up in active IDFs and MDFs where cassettes get pulled and reseated repeatedly. Plastic-bodied cassettes crack at the latch tabs over time; steel doesn't.

Deployment Considerations:

• The unterminated splice side requires a fusion splicer on-site — budget technician time and equipment accordingly. This is not a plug-and-play cassette; it is a splice-and-patch cassette.
• APC and UPC connectors are physically incompatible for low-loss mating. Confirm your patch cord inventory is LC APC (green boots) before deploying the FCS9N-12-LAR — mixing connector types will introduce significant return loss and is a common installation error in mixed-fleet fiber rooms.

The FCS9N-12-LAR is the right call for campus backbone distribution points and inter-building fiber links on OS2 single-mode plant where APC return loss performance is specified — particularly in security and access control backbone runs feeding IP camera aggregation switches across long horizontal distances.
