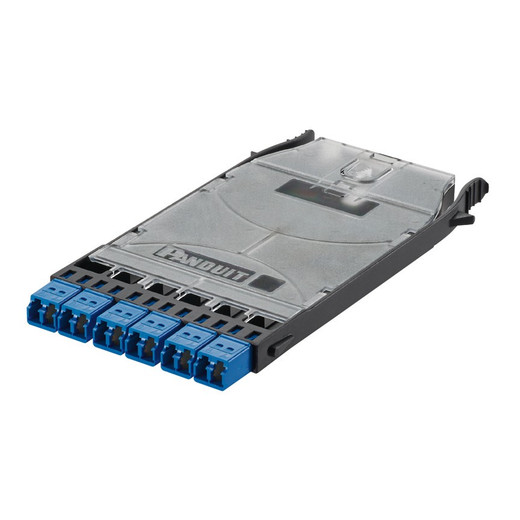

Panduit FHS9N-12-10P HD Flex LC Splice Cassette, 12-Fiber OS2

Overview

The Panduit FHS9N-12-10P is a preloaded 12-fiber OS2 single-mode splice cassette from the HD Flex™ family, built for structured fiber backbone deployments where you need repeatable, contamination-controlled LC connections in a compact, tool-free cassette format. It ships factory-loaded with 12 standard IL OS2 ribbon pigtails and 12 splice sleeves — meaning your technicians pull it from the box, mount it, splice the field fiber, and move on. No field loading, no loose components to manage on a ladder.

The cassette format integrates directly into HD Flex-compatible fiber optic panels and enclosures, making it the right choice for MDA/HDA backbone infrastructure or any high-density run where port density and cable management discipline both matter. If you are specifying Panduit fiber infrastructure end-to-end, the FHS9N-12-10P keeps your splice points organized, accessible, and protected inside a standard HD Flex footprint.

Key Features

• Factory-Preloaded OS2 Ribbon Pigtails (12 fibers): Each cassette arrives with 12 standard IL OS2 single-mode ribbon pigtails already installed. That eliminates field-loading labor — a meaningful time save when you are commissioning a multi-cassette backbone run where every panel position needs to be spliced and tested the same day.
• 12 LC Duplex Adapters (Blue, Zirconia-class): Six blue LC Duplex adapter ports deliver 12 fiber connections per cassette. Blue color coding is the industry standard for OS2 single-mode — reduces mis-mating risk on mixed-fiber panels where APC green and OM multimode ports coexist on the same patch panel.
• Integrated Shutter/Dust Plugs on Every Port: All six LC Duplex adapters include integral shutters to block contamination when ports are unplugged. On long-haul single-mode runs where insertion loss budgets are tight, a single contaminated ferrule can push you over budget — the shutters are a passive protection layer that matters in dusty IDF/MDF environments.
• 12 Preloaded Splice Sleeves: Fusion splice sleeves are included and pre-positioned in the cassette. Technicians do not need to source or stage sleeves separately — the cassette is a self-contained splice unit ready for the fusion splicer to work immediately.
• Transparent Cover: The clear polycarbonate lid lets you visually inspect splice positions and trace individual fibers without opening the cassette or disturbing the splice tray. Useful during commissioning and for post-installation audits without breaking any connections.
• Polycarbonate Construction: The cassette body is molded polycarbonate — lightweight, dimensionally stable, and resistant to the flex and vibration you see in high-density patch cabinets with heavy cable bundles. More durable than ABS alternatives in thermal-cycling environments like rooftop or outdoor cabinet deployments.
• HD Flex™ Platform Compatibility: The FHS9N-12-10P is part of Panduit's HD Flex system, designed to snap into HD Flex-compatible fiber optic cassette panels without tools. Swapping a cassette for maintenance or reconfiguration is a one-person job that does not require disconnecting adjacent cassettes — important in live, production backbone runs.
• Discrete Pigtail Routing: The pigtail design routes individual fibers discreetly within the cassette housing, keeping the splice zone organized and reducing the risk of macrobend losses that occur when fibers are poorly managed around tight-radius bends inside a tray.

Integration & Compatibility

The FHS9N-12-10P is engineered for the Panduit HD Flex™ platform and is compatible with HD Flex-rated panels and enclosures. OS2 single-mode fiber (9/125 µm) is the correct fiber type — this cassette is not interchangeable with multimode OM3/OM4/OM5 deployments. LC Duplex connectors on the adapter side mate with standard LC patch cords; verify your transceiver and patch cord inventory is OS2 single-mode (blue jacket, blue connector housing) before specifying this cassette in a mixed-fiber environment.

For fiber optic backbone planning in enterprise LAN, data center interconnect, or campus distribution layer deployments, OS2 supports 10GbE to 40km and 100GbE across standard reach distances — the splice cassette format is common at MDA-to-HDA runs where pre-terminated trunks terminate into spliced cassettes for flexibility. Pair with an appropriate HD Flex enclosure or patch panel to complete the assembly. Cassettes ship individually (package quantity: 1); carton quantity is 10 units.

Frequently Asked Questions

Q: What fiber type is the FHS9N-12-10P compatible with?

A: The FHS9N-12-10P is designed for OS2 single-mode fiber (9/125 µm). It is not compatible with multimode fiber types such as OM3, OM4, or OM5. Verify your backbone fiber plant is OS2 before specifying this cassette.

Q: Does the FHS9N-12-10P come preloaded with pigtails and splice sleeves?

A: Yes. Each cassette ships factory-preloaded with 12 standard IL OS2 ribbon pigtails and 12 fusion splice sleeves. No field loading of pigtails or sleeves is required — the cassette is ready for the fusion splicer immediately out of the box.

Q: What connector type does the FHS9N-12-10P use on the adapter side?

A: The cassette has six LC Duplex adapters (blue, indicating OS2 single-mode), providing 12 fiber connections per cassette. The field side (pigtail) is unterminated and intended for fusion splicing to incoming fiber.

Q: What panels or enclosures is the FHS9N-12-10P compatible with?

A: The FHS9N-12-10P is part of Panduit's HD Flex™ platform and is designed for use with HD Flex-compatible fiber optic panels and enclosures. Consult Panduit's HD Flex panel lineup to confirm enclosure compatibility before ordering.

Q: How many cassettes come per package, and what is the carton quantity?

A: The FHS9N-12-10P ships as a single cassette (package quantity: 1). The standard carton quantity is 10 units, which is relevant for bulk project ordering.

Q: Can the cassette be swapped or replaced without disturbing adjacent cassettes?

A: Yes. The HD Flex™ cassette design supports individual cassette removal and replacement without requiring disconnection of neighboring cassettes in the same panel — a practical advantage in live backbone environments where minimizing disruption to adjacent circuits is a real operational concern.

Eden Phillips

The FHS9N-12-10P is one of those cassettes I specify when a project has a tight commissioning schedule and I cannot afford rework at the splice tray. The factory-preloaded 12 OS2 ribbon pigtails and 12 splice sleeves mean field crews show up to a fully staged cassette — the only variable left is fusion splice quality, which is where their time should be. On a 96-fiber backbone run across six cassettes, eliminating the pigtail-loading step alone saves meaningful time per cassette.

Technical Highlights:

• OS2 Single-Mode, 9/125 µm: Correct fiber type for 10GbE to 40km and 100GbE standard-reach backbone runs. Blue LC Duplex adapters provide the visual confirmation of single-mode at the port level — critical on mixed-fiber panels where an OM3/OM4 mismatch is easy to make under time pressure.
• Transparent Polycarbonate Cover: Visual inspection of all 12 splice positions without opening the tray. During post-splice OTDR testing, being able to identify which pigtail corresponds to which port without disturbing the splice tray reduces test time and eliminates the risk of re-breaking a fresh fusion splice during identification.
• Integral Shutters on All 6 LC Duplex Ports: Passive contamination control when ports are unplugged. On OS2 single-mode, where a dirty ferrule can add 0.5 dB or more of insertion loss, having shutter protection built into the adapter is not a luxury — it is the correct engineering choice for MDF/IDF environments where the panel may sit unplugged for months during construction phases.

Deployment Considerations:

• The FHS9N-12-10P is an HD Flex platform-specific cassette. Confirm your enclosure or panel is HD Flex-rated before ordering — it will not drop into older or third-party cassette panels that use different form factors or retention mechanisms.
• The field side is unterminated ribbon, intended for fusion splicing only. If your project requires a pre-terminated (no-splice) solution, this is the wrong cassette — look at Panduit's pre-terminated MPO or LC cassette options instead.

This cassette is well-suited to enterprise campus backbone and data center MDA/HDA infrastructure projects where OS2 single-mode is already the specified fiber plant, HD Flex panels are in the BOM, and commissioning timelines are tight enough that factory-staged splice components have measurable schedule value.
