Panduit FHS9N-12-LAP HD Flex LC/APC OS2 12-Fiber Splice Cassette

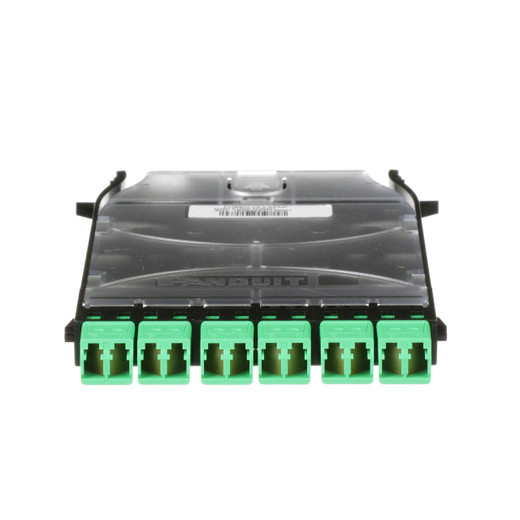

The Panduit FHS9N-12-LAP is a preloaded HD Flex splice cassette designed for single-mode OS2 fiber deployments where you need clean, high-density termination in a structured enclosure. It ships with 12 OS2 pigtails (250µm) already fusion-spliced and dressed, six LC/APC duplex ports (zirconia split-sleeve adapters), and a polycarbonate housing that integrates with Panduit HD Flex panels and enclosures. If you're building out a data center backbone, a campus distribution point, or a security network requiring low-loss APC terminations, this cassette eliminates field polishing and significantly reduces installation time versus loose-tube splice work.

Key Features

• 12 OS2 Pigtails, Pre-Spliced: All 12 single-mode 250µm pigtails are factory-prepared and loaded — no field terminations, no epoxy, no polish. In a high-fiber-count enclosure, this cuts per-cassette installation time materially versus field-polish methods.
• LC/APC Duplex Adapters, 6 Ports: APC (angled physical contact) connectors produce lower back-reflection than UPC, typically -65 dB or better — critical for analog video-over-fiber links, DWDM runs, and any single-mode path where return loss matters. Six duplex ports = 12 fibers per cassette face.
• Zirconia Split Sleeves: Zirconia ceramic sleeves hold ferrule alignment tighter than phosphor bronze over repeated insertions. In a security or AV backbone that sees frequent patch changes, sleeve wear is a real factor — zirconia extends service life under cycling.
• HD Flex Form Factor: The HD Flex cassette footprint integrates directly with Panduit HD Flex panels and enclosures. If your rack infrastructure is already in the Panduit HD Flex ecosystem, these cassettes drop in without adapters or custom hardware.
• OS2 Single-Mode Fiber: OS2 (9µm core) supports long-distance single-mode runs — appropriate for inter-building links, campus fiber rings, and fiber optic network infrastructure where you're spanning hundreds of meters or more. Not the right choice for short-run OM3/OM4 multimode applications.
• Polycarbonate Housing: The cassette body is polycarbonate — lighter and impact-resistant in a structured patch environment. Fibers are protected and organized inside the cassette housing, reducing the risk of macrobend loss from loose fiber management.
• Standard Insertion Loss Rating: Rated at standard (PI Std) insertion loss — not low-loss (PI Low). Verify your link budget has adequate margin; if you're right at the edge of a long-haul budget, the low-loss variant may be the better call.

Integration and Compatibility

The FHS9N-12-LAP is engineered for the Panduit HD Flex structured cabling platform. It installs into HD Flex fiber panels and enclosures, which are commonly deployed in enterprise data centers, campus distribution frames, and security head-end rooms. The LC/APC connector type requires LC/APC-compatible patch cords — do not mix APC and UPC connectors on the same link. If your installed base uses LC/UPC, this is not a drop-in replacement. Verify adapter compatibility before ordering. For a broader look at fiber optic cassettes and structured cabling options, including OM3/OM4 multimode variants, review available HD Flex family configurations. When planning rack density, each cassette handles 12 fibers; a fully loaded panel with multiple cassettes can manage hundreds of fiber connections in a compact footprint — relevant to high-density network infrastructure builds.

What's in the Box

• 1x Panduit FHS9N-12-LAP HD Flex LC/APC OS2 12-Fiber Splice Cassette (preloaded with 12 OS2 pigtails)

Frequently Asked Questions

Q: What fiber type does the FHS9N-12-LAP support?

A: The FHS9N-12-LAP uses OS2 single-mode fiber (9µm core diameter, 250µm coating). It is not compatible with multimode fiber (OM1/OM2/OM3/OM4).

Q: Are the pigtails already spliced, or do I splice them in the field?

A: The cassette ships preloaded — all 12 OS2 pigtails are factory-prepared. Field splicing is not required; you connect your incoming fiber to the pigtail tails inside the splice tray.

Q: What connector type do the front-facing ports use?

A: The six front ports are LC/APC duplex adapters with zirconia split sleeves. APC connectors use an angled ferrule for lower back-reflection. You must use LC/APC patch cords — LC/UPC patch cords will physically mate but will degrade return loss performance significantly.

Q: How many fibers does one cassette handle?

A: One FHS9N-12-LAP cassette handles 12 fibers (6 duplex LC/APC ports × 2 fibers each).

Q: Does this cassette fit standard HD Flex panels?

A: Yes. The FHS9N-12-LAP is designed for the Panduit HD Flex cassette panel platform. It integrates with Panduit HD Flex fiber panels and enclosures without additional adapters.

Q: What is the insertion loss rating?

A: The FHS9N-12-LAP is rated at standard insertion loss (PI Std). If your link budget requires low-loss performance, Panduit offers low-insertion-loss variants in the HD Flex line — verify your power budget before specifying.

Jerry Tildsen

The FHS9N-12-LAP is the cassette I spec when a project needs APC terminations on a single-mode backbone and the team doesn't have a fiber polishing setup on site. The factory-preloaded 12 OS2 pigtails (250µm, 9µm core) mean your field crew is splicing bare fiber to the pigtail tails — not polishing connectors under time pressure. Zirconia split sleeves on the LC/APC adapters matter more than most buyers realize for a security or AV infrastructure with repeated patch changes.

Technical Highlights:

• APC Connector Geometry: The angled ferrule on APC connectors drives back-reflection down to typically -65 dB or better — a real factor on any analog video-over-fiber or CWDM/DWDM run where return loss degrades link performance. UPC won't meet that spec.
• 12-Fiber Density per Cassette: Six duplex LC/APC ports handle 12 fibers in a single HD Flex cassette slot. Stacking multiple cassettes in a panel gives you a very clean, high-density splice point for a 48- or 96-fiber building entry or distribution frame.
• Standard vs. Low-Loss Rating: This SKU carries a PI Std (standard) insertion loss rating, not PI Low. On a long campus run where you're already consuming most of your link budget, the standard-loss variant may put you at the margin — check your ORL and IL budget before ordering at scale.

Deployment Considerations:

• APC and UPC connectors must not be mixed on the same link. If the rest of your infrastructure uses LC/UPC, you'll need a full-path conversion — this isn't a plug-compatible swap.
• Pigtails are 250µm coated (not 900µm tight-buffered) — they're designed to be fusion-spliced to incoming bare fiber inside a splice tray, not handled as free-hanging jumpers. Route them carefully inside the enclosure.

The FHS9N-12-LAP is the right call for a new-construction single-mode backbone — campus security fiber ring, inter-building camera backbone, or a data center structured cabling run — where APC low-reflection terminations and HD Flex panel compatibility are both required from the start.
