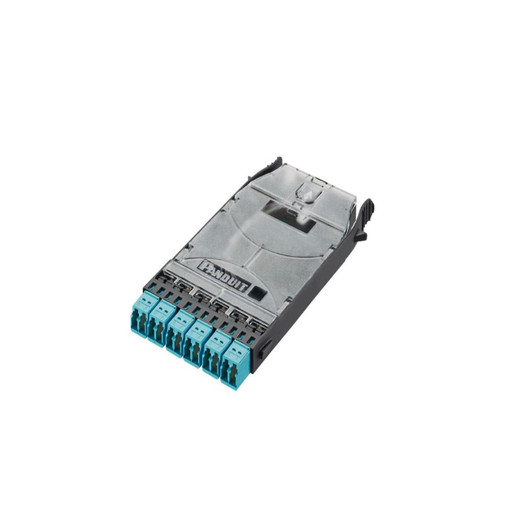

Panduit FHSZO-12-10P HD Flex LC OM4 12-Fiber Splice Cassette

Overview

The Panduit FHSZO-12-10P is a factory-preloaded HD Flex™ splice cassette designed for high-density fiber backbone deployments where speed of termination and long-term signal integrity are non-negotiable. It arrives ready to install with 12 IL-optimized OM4 ribbon pigtails and 12 splice sleeves already loaded — meaning your technician pulls the cassette from the box and splices directly, without staging loose components or sourcing matching sleeves separately. That matters on large cabling projects where labor time per termination compounds quickly across hundreds of fibers.

The cassette format fits the Panduit HD Flex™ fiber management system, integrating with compatible enclosures and panels designed around the same chassis footprint. If you're building or extending a structured fiber plant using Panduit's high-density infrastructure, this cassette slots directly into that architecture without adapter hardware or field modification.

Key Features

• 12 Factory-Loaded OM4 Ribbon Pigtails: OM4 multimode fiber (50µm core diameter) supports 40GbE and 100GbE transmission over standard link distances — the right fiber type for intra-building backbone runs and data center horizontal cabling where laser-optimized performance matters. Factory-loaded means no loose pigtail staging on the bench.
• LC Duplex Front Connectors: LC duplex adapters on the front panel match the dominant connector standard in high-density enterprise and data center environments — compatible with SFP+ and QSFP transceivers without field-side adapters. The fiber optic cassette terminates unterminated on the rear (splice side), giving you flexibility to splice directly into your backbone ribbon cable.
• 12 Pre-Installed Splice Sleeves: Sleeves ship installed and ready — one per fiber — so there's no sleeve-count math, no partial box waste, and no mid-job sourcing run. Splice protection is staged the moment the cassette arrives.
• 6 Integrated LC Duplex Adapters with Dust Shutters: The six blue LC duplex adapters include integral dust shutters on each port. Dust contamination is the leading cause of insertion loss degradation in multimode links — shutters on unused ports prevent particulate ingress during phased deployment when not all ports are patched on day one.
• Black Polycarbonate Housing: Polycarbonate construction provides the structural rigidity needed in rack-mounted enclosures subject to cable-pull stress, while keeping the cassette lightweight enough to hot-swap without disrupting adjacent cassettes. The black finish is standard for HD Flex panel systems, maintaining visual consistency in managed fiber infrastructure.
• HD Flex™ Form Factor: Designed specifically for Panduit's HD Flex fiber optic panel and enclosure ecosystem. The cassette slides and latches into compatible HD Flex chassis without tools, enabling fast adds-moves-changes in live environments — relevant during phased network buildouts where downtime on adjacent links is not acceptable.
• Unterminated Rear (Splice Side): The ribbon pigtails exit the cassette rear unterminated, intended for fusion or mechanical splicing directly onto your backbone ribbon fiber. This approach eliminates a connector-pair insertion loss at the backbone junction — better for loss-budget-sensitive links at the far end of OM4 reach limits.
• Cross-Reference: Corning SPLCH-12A: The FHSZO-12-10P is a direct functional cross to the Corning SPLCH-12A (12-fiber LC splice cassette, OM4). If you're evaluating both platforms for a multi-zone fiber project, note that cassette form factors between vendor ecosystems are typically not interchangeable — verify chassis compatibility before mixing.

Integration and Compatibility

The FHSZO-12-10P (often searched as FHSZO 12 10P) is engineered for use within Panduit's HD Flex™ high-density fiber management ecosystem. Compatible enclosures and patch panels from the HD Flex line accept this cassette directly. On the front side, LC duplex patch cords connect to active equipment — switches, routers, SAN arrays, media converters — using standard LC-LC or LC-SC OM4 multimode patch cables. On the splice side, the 12 pigtails are designed for ribbon fusion splicing onto 12-fiber OM4 ribbon backbone cable, which is the standard topology for high-count fiber backbones in enterprise and data center structured cabling.

OM4 fiber is backward-compatible with OM3 transceivers at reduced link distances, though deploying OM4 cassettes on OM3 backbone segments is generally not recommended where you're trying to maximize reach. Verify your active equipment's transceiver specifications and link budget before finalizing fiber type selection across the plant.

What's in the Box

• 1x Panduit FHSZO-12-10P HD Flex™ LC Splice Cassette (preloaded with 12 OM4 ribbon pigtails and 12 splice sleeves)

Frequently Asked Questions

Q: What fiber type does the FHSZO-12-10P use, and what transmission speeds does it support?

A: The FHSZO-12-10P uses OM4 multimode fiber with a 50µm core diameter. OM4 supports 40GbE and 100GbE over standard intra-building distances and is the current baseline for high-performance multimode backbone cabling in data center and enterprise environments.

Q: Does the FHSZO-12-10P come preloaded, or do the pigtails and splice sleeves need to be installed in the field?

A: It is fully factory-preloaded. The cassette ships with 12 IL-optimized OM4 ribbon pigtails and 12 splice sleeves already installed. No field staging of components is required — the cassette is ready to splice on arrival.

Q: What connector type is on the front panel of the FHSZO-12-10P?

A: The front panel has 6 LC duplex adapters (blue, with integral dust shutters), providing 12 LC duplex fiber ports total. The rear exits are unterminated ribbon pigtails for fusion or mechanical splicing onto backbone fiber.

Q: Is the FHSZO-12-10P compatible with Corning splice cassettes or other vendor enclosures?

A: The FHSZO-12-10P is a functional cross-reference to the Corning SPLCH-12A, but the cassette is designed for Panduit's HD Flex™ enclosure ecosystem. Cassette form factors are typically vendor-specific — do not assume physical interchangeability between Panduit and Corning (or other vendor) chassis without confirming mechanical compatibility.

Q: How many fibers does the FHSZO-12-10P support, and how many LC ports does that provide?

A: The cassette supports 12 fibers, delivered via 6 LC duplex adapters on the front panel. Each duplex adapter carries 2 fibers (transmit and receive), totaling 12 fiber connections per cassette.

Q: What material is the FHSZO-12-10P housing made from?

A: The cassette housing is polycarbonate — a structural thermoplastic that provides rigidity for rack-mounted enclosure use while remaining lightweight enough for tool-free hot-swap installation in HD Flex chassis.

Jerry Tildsen

The FHSZO-12-10P is the cassette I reach for when a project calls for ribbon-based OM4 backbone termination inside a Panduit HD Flex infrastructure. The preloaded 12-fiber configuration with factory-installed splice sleeves removes the most time-consuming part of cassette prep from the field — on a 144-fiber riser, that's 12 of these cassettes and zero sleeve-staging steps. That's meaningful labor savings on any multi-floor enterprise build.

Technical Highlights:

• 50µm OM4 Fiber Core: The 50µm core diameter is the correct spec for laser-optimized multimode links running SFP+ at 10GbE or QSFP28 at 100GbE — don't substitute OM3 cassettes in OM4-specced runs if you're pushing the link distance ceiling.
• 6 LC Duplex Adapters with Integral Dust Shutters: Dust shutters on all 6 adapters matter in phased deployments where ports sit open for weeks before patch cords are installed. Contaminated connectors are the leading cause of unexplained insertion loss on new fiber plants — shutters remove that variable.
• Unterminated Ribbon Rear: The pigtails exit ribbon-style for direct fusion splice onto backbone ribbon cable. This eliminates a connector-pair insertion loss at the backbone junction — relevant when you're calculating loss budgets at the far end of OM4 reach for 40GbE or 100GbE links.

Deployment Considerations:

• This cassette is chassis-specific to Panduit's HD Flex enclosure line. Verify your patch panel or enclosure model accepts HD Flex cassettes before ordering — the form factor is not universal across Panduit's own catalog, let alone cross-vendor.
• The competitor cross-reference to Corning SPLCH-12A is functional (same fiber count and connector type), but physical form factor interchangeability is not guaranteed. Do not assume a Corning-chassis site can swap in FHSZO-12-10P cassettes without testing fit.

Best suited for structured cabling engineers building or expanding high-density OM4 fiber backbones in enterprise campuses or data center interiors where Panduit HD Flex enclosures are already the specified platform — this cassette is the correct termination component for ribbon-to-LC transition points in that environment.
