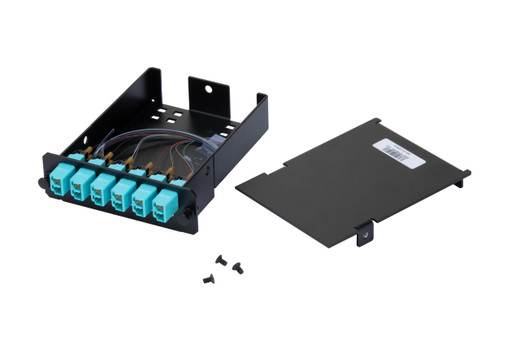

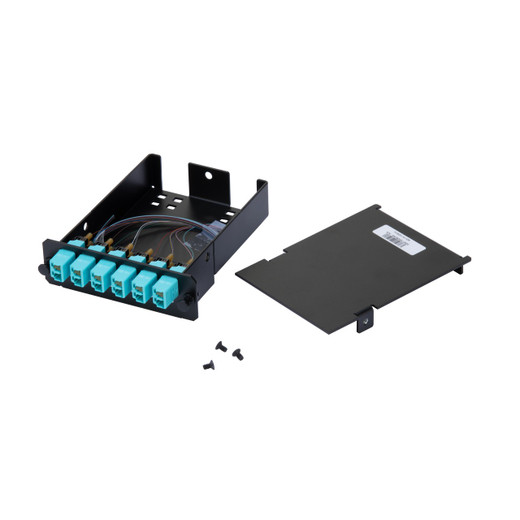

Panduit FCSZO-12-10P OptiCom LC Splice Cassette, OM4, 12-Fiber, Preloaded

Overview

The Panduit FCSZO-12-10P is a preloaded OM4 splice cassette from the Opticom™ fiber management line, designed for structured fiber deployments in enterprise data centers, security infrastructure backbones, and high-density patch environments. It ships ready to install with 12 factory-terminated LC duplex pigtails on 50µm OM4 fiber — eliminating field splicing labor and the variability that comes with it. If you're building or extending a fiber optic system and need a clean, dense termination point with consistent insertion loss performance, this cassette is engineered for that role.

The FCSZO-12-10P (often searched as FCSZO 12 10P) competes directly with Corning CCH-CS12-E4-POOTE and Leviton LVS12-LCPLRAB1A in this cassette format — useful context if you're standardizing across a mixed-vendor installation and need a cross-reference.

Key Features

• Preloaded with 12 OM4 LC Duplex Pigtails (50µm, 250µm coating): Factory-terminated pigtails land in the cassette before it ships, so field termination becomes a splice-and-close operation rather than a full connectorization job. On a 48-port panel with four of these cassettes, that difference in labor adds up fast — no polishing, no field epoxy, no insertion-loss rework at 2 a.m. during a cutover.
• LC Duplex Front / Unterminated Rear (Pigtail Design): The front face presents standard LC duplex ports for patch cord connections; the rear exits as unterminated fiber tails for fusion or mechanical splicing into the backbone. This matches the typical meet-point architecture where pre-terminated cassettes interface with blown or pulled trunk cable — a clean handoff without adapters or gender mismatches.
• OM4 Fiber (50µm): OM4 supports 10GbE to 400m, 40GbE to 150m, and 100GbE to 100m — meaningful headroom if your infrastructure is running or planning to run 40/100G over multimode. Specifying OM4 here instead of OM3 gives you roughly 2x the bandwidth-distance product, which matters on longer inter-closet or MDA-to-HDA runs in larger facilities.
• Steel Housing: The steel body provides crush resistance and dimensional stability inside a loaded panel or enclosure. In high-density racks where cable management can exert lateral pressure on cassettes, a plastic housing can deform and alter fiber routing geometry — the steel shell avoids that failure mode.
• Optimized PI (Physical Interface): The product description explicitly calls out PI optimization, which refers to the physical contact geometry of the LC connectors. Optimized PI reduces back-reflection and insertion loss variance — relevant in systems using VCSEL-based transceivers where return loss budgets are tighter than legacy LED systems.
• Discrete Pigtail Routing: The 250µm coating on each pigtail keeps the fiber bundle compact inside the cassette, reducing the minimum bend radius footprint and making splice tray management cleaner. In a 1U panel holding multiple cassettes, that compactness is not cosmetic — it's what keeps the splice trays manageable when you're working in a live environment.
• Panduit Opticom™ Ecosystem: The FCSZO-12-10P integrates into the broader Panduit fiber management infrastructure — panels, enclosures, and trunk cables that share the same mechanical form factor and connector footprint. If you're already running Opticom enclosures, this cassette drops in without adapter plates or modified mounting hardware.

Integration & Compatibility

This cassette is engineered for Panduit Opticom™ fiber optic panels and enclosures that accept the standard splice cassette form factor. The LC duplex front interface is compatible with any LC-terminated patch cord or trunk cable, making it vendor-agnostic on the connection side. The unterminated rear pigtails are designed for fusion splicing into OM4 backbone cable — confirm your splicer settings are dialed for 50µm multimode before you start. Cross-reference against Corning CCH-CS12-E4-POOTE or Leviton LVS12-LCPLRAB1A if working with a mixed-panel environment; the FCSZO-12-10P is a recognized alternative to both in the 12-fiber LC OM4 splice cassette category.

For installations combining fiber backbone with active surveillance or networking equipment, pairing this cassette with the appropriate fiber optic transceivers and a managed PoE switch ensures the full end-to-end link budget is accounted for before termination.

What's in the Box

• 1x Panduit FCSZO-12-10P OptiCom LC splice cassette, preloaded with 12 OM4 LC duplex pigtails (50µm, 250µm coating)

Frequently Asked Questions

Q: What fiber type does the FCSZO-12-10P support, and what bandwidth distances does that enable?

A: The FCSZO-12-10P uses OM4 multimode fiber with a 50µm core diameter. OM4 supports 10GbE to 400m, 40GbE to 150m, and 100GbE to 100m — providing meaningful headroom for current and near-future high-speed multimode applications.

Q: Are the pigtails in the FCSZO-12-10P factory-terminated or field-terminated?

A: The cassette ships preloaded with 12 factory-terminated LC duplex pigtails on 250µm coated OM4 fiber. Field work is limited to fusion or mechanical splicing at the unterminated rear ends — no field connectorization or polishing is required.

Q: What enclosures or panels is the FCSZO-12-10P compatible with?

A: The FCSZO-12-10P is designed for the Panduit Opticom™ fiber management system, including Opticom panels and enclosures that accept the standard splice cassette form factor. The LC duplex front interface is compatible with any standard LC-terminated patch cord or trunk cable.

Q: What is the difference between the FCSZO-12-10P and its common cross-references like the Corning CCH-CS12-E4-POOTE?

A: The FCSZO-12-10P is a Panduit Opticom™ native cassette that integrates directly into the Panduit panel ecosystem. The Corning CCH-CS12-E4-POOTE and Leviton LVS12-LCPLRAB1A are the most commonly cited alternatives in the same 12-fiber LC OM4 splice cassette category. Select based on your existing panel brand and enclosure compatibility requirements.

Q: How many fibers does the FCSZO-12-10P terminate, and how does that translate to port density?

A: The FCSZO-12-10P terminates 12 fibers via LC duplex connectors, which presents 6 LC duplex ports on the front face. In a standard Opticom panel, multiple cassettes can be loaded to achieve higher port density without increasing rack unit consumption.

Q: What is the carton quantity for the FCSZO-12-10P?

A: The FCSZO-12-10P ships individually (package quantity of 1). Carton quantity is 10 units, useful for project-scale procurement on larger structured cabling deployments.

Jerry Tildsen

The FCSZO-12-10P is one of those cassettes I recommend when a project scope requires consistent termination quality across a high fiber count and the labor budget doesn't have room for field connectorization variability. The preloaded 12-fiber OM4 pigtail design — 250µm coating, 50µm core, LC duplex front — means you're installing a factory-controlled loss point rather than relying on field techs to hit insertion loss specs at 2 a.m. during a cutover window.

Technical Highlights:

• OM4 50µm Fiber: Supports 100GbE to 100m and 40GbE to 150m — if the backbone ever upgrades to 100G transceivers, this cassette doesn't become a bottleneck. Specifying OM3 here to save a few dollars per cassette is a mistake you'll pay for at the next technology refresh.
• Optimized PI LC Connectors: Physical interface optimization on the LC front ports reduces back-reflection variance — matters specifically on VCSEL-based transceivers where return loss budgets are tighter than legacy LED systems. Not a spec that shows up in basic cross-reference comparisons but relevant on high-channel-count links.
• Steel Housing: In loaded enclosures where lateral cable pressure is a real factor, steel maintains the cassette's dimensional geometry. Plastic cassettes in high-density panels can deform enough to alter fiber routing inside the splice tray — a failure mode that's difficult to diagnose after the fact.

Deployment Considerations:

• The rear pigtails are unterminated for fusion splicing — confirm your fusion splicer is configured for 50µm multimode before starting the splice run. Using settings dialed for singlemode or 62.5µm OM1 will produce elevated splice loss on every fiber.
• This cassette is sold individually (package quantity 1) but ships in cartons of 10. For large panel builds, ordering in carton quantities reduces per-unit cost and ensures you're working from the same manufacturing lot — relevant for projects where insertion loss consistency across cassettes is being documented for a certification report.

The FCSZO-12-10P is the right call for enterprise MDA-to-HDA fiber runs, security camera backbone distribution points, and data center horizontal cross-connects where OM4 headroom and factory termination quality are required — and where the structured cabling plant needs to hold up under a formal certification audit.
