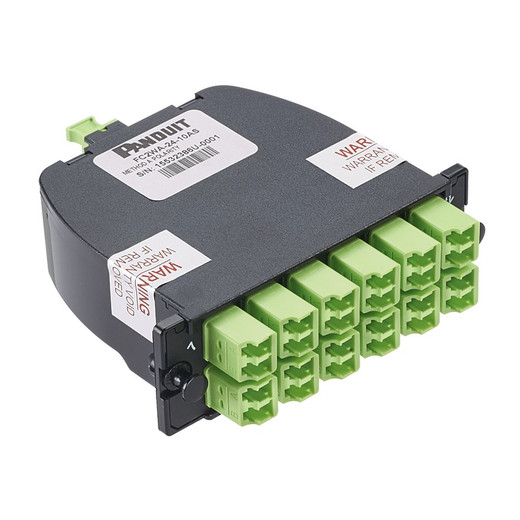

Panduit FC2WA-12-10AF OptiCom OM5 12-Fiber MPO-LC Cassette

The Panduit FC2WA-12-10AF is a high-density fiber cassette that converts a single 12-fiber MPO trunk interface into six duplex LC connections, designed for OM5 wideband multimode deployments in datacenters, enterprise networks, and high-performance AV backbone systems. This cassette implements Method A polarity with pair inversion, ensuring correct transmit-receive alignment in spine-leaf architectures and structured cabling systems where pre-terminated MPO trunk cables feed modular patch panels or enclosures. Built on Panduit's OptiCom platform, the FC2WA-12-10AF delivers field-proven reliability for integrators managing 40G/100G migration paths, shortwave wavelength-division multiplexing (SWDM), and fiber channel storage networks where port density, polarity control, and future bandwidth scaling are non-negotiable.

Key Features

• OM5 Wideband Multimode Fiber: Supports SWDM (850–950 nm) for 40G/100G over extended distances; backwards compatible with OM3/OM4 transceivers and legacy 10G infrastructure
• MPO-12 Male to 6× LC Duplex Breakout: Single MPO trunk interface fans out to six individually accessible LC duplex ports; eliminates splice trays and reduces patch-panel footprint by 60% compared to discrete LC-LC cabling
• Method A Polarity with Pair Inversion: Pre-configured pinout mapping (positions 1↔12, 2↔11, etc.) maintains TIA-568 duplex polarity when mated with Method A MPO trunk cables; no field re-pinning or polarity-flip adapters required
• Tool-Free Installation: Snap-in cassette form factor fits standard LGX, FHD, and FAP enclosures; latching mechanism provides audible click confirmation and 10+ insertion-cycle durability
• Polycarbonate Strain-Relief Housing: Black UL 94 V-0 rated chassis protects internal fanout legs from kink-radius violations during cable dressing; integrated label window accepts laser-printed port identifiers
• Factory-Terminated Connectors: LC and MPO interfaces pre-polished and insertion-loss tested to ≤0.35 dB typical; eliminates field termination labor and return-loss variability
• High-Density Patching: Six LC duplex ports in a single-module width support 12-fiber connectivity in <1U of vertical rack space; enables 144-fiber distribution in a 1U FHD enclosure (12 cassettes)
• Pin-and-Key MPO Interface: Male MPO connector with guide pins ensures correct alignment with female MPO trunk adapters; prevents accidental mismating with other cassette types in mixed polarity environments

The FC2WA-12-10AF addresses the core tension in modern fiber distribution: how to bridge between high-fiber-count MPO backbone trunks and the individual LC duplex ports that end-users need for switch uplinks, storage arrays, and AV matrix endpoints. In a typical spine-leaf datacenter topology, 12-fiber or 24-fiber MPO trunk cables run vertically through cable trays from TOR (top-of-rack) switches to aggregation switches or storage head units. Those trunk cables terminate in MPO patch panels or breakout enclosures, where cassettes like the FC2WA-12-10AF convert the single MPO interface into accessible LC ports. This architecture reduces cable congestion in vertical pathways by 10:1 compared to running individual LC duplex cables, and it cuts installation labor by eliminating hundreds of discrete terminations. The Method A polarity scheme is critical here: when an MPO trunk cable uses straight-through pinouts (position 1 on one end maps to position 1 on the other), the cassette's internal pair inversion ensures that Fiber A-Tx on the switch side maps to Fiber A-Rx on the patch-panel side, maintaining the duplex transmit-receive relationship that 10G/40G/100G transceivers require. Without this inversion, integrators would need to insert polarity-flip adapters or re-terminate cables in the field—both of which introduce insertion loss, failure points, and labor overhead that Method A cassettes eliminate by design.

OM5 fiber, specified in TIA-492AAAE and ISO/IEC 11801-1, extends the multimode roadmap beyond OM4 by optimizing the refractive index profile for wavelength-division multiplexing across the 850–950 nm window. In practical terms, this means the FC2WA-12-10AF supports 40GBASE-SR4 and 100GBASE-SR4 at the same 100-meter reach as OM4, but it also enables SWDM transceivers (40G over duplex fiber using four wavelengths) and future 200G/400G SWDM standards that require low differential mode delay (DMD) across multiple wavelengths. For integrators planning 3–5 year technology refresh cycles, OM5 provides a hedge against transceiver obsolescence: if a client's 10G SFP+ infrastructure needs to scale to 40G or 100G, the existing OM5 cabling plant remains viable without a rip-and-replace. The cassette's factory-terminated LC and MPO connectors are individually insertion-loss tested and serialized, so integrators receive documentation showing <0.35 dB typical loss per mating pair. This matters in long-channel budgets where a 40G SR4 link might traverse two cassette breakouts (one at each end), two MPO trunk cable segments, and two LC patch cords—each 0.1 dB saved at the cassette level translates to 100+ feet of additional reach or margin against future connector wear.

Installation follows a repeatable pattern: mount the FHD or LGX enclosure on the rack or wall, slide the cassette into the module slot until the latch clicks, route the pre-terminated MPO trunk cable from the distant switch or enclosure, mate the MPO connector to the cassette's rear MPO interface (guide pins ensure correct orientation), and dress the trunk cable to the strain-relief bar. The six LC duplex ports are now live and ready for patch cords to individual switch ports or endpoint devices. The polycarbonate housing's integrated strain relief prevents kink-radius violations on the internal fanout legs (the 12 individual fibers that break out from the MPO connector to the six LC connectors), which is the most common failure mode in field-terminated breakout assemblies. The black UL 94 V-0 material resists flame propagation in plenum-rated enclosures, and the label window accepts standard laser-printed port labels so technicians can identify circuits without tracing cables. For projects with multiple cassette types (Method A, Method B, or different fiber counts), color-coding or label conventions are critical: a Method A cassette mated to a Method B trunk cable will result in Tx-to-Tx polarity errors that show up as link-down alarms and cryptic transceiver diagnostics. Panduit's part numbering includes the polarity method in the SKU, and the cassette body is marked "Method A" so field techs can verify compatibility at a glance.

The FC2WA-12-10AF conforms to TIA-568.3-D for MPO connector geometry, TIA-604-5 (FOCIS-5) for LC connector endface specifications, and IEC 61754-7 for MPO performance requirements. The OM5 fiber meets TIA-492AAAE chromatic dispersion and bandwidth specs (3500 MHz·km at 850 nm), ensuring compliance with 40GBASE-SR4 and 100GBASE-SR4 reach requirements in IEEE 802.3. For integrators serving financial services, healthcare, or government clients where audit trails and standards compliance are table stakes, the cassette's serialized test reports and UL/cUL listing provide the documentation chain that passes low-voltage inspector review. The 10-pack carton quantity (FC2WA-12-10AF ships 10 units per carton) matches the scale of typical 1U or 2U fiber distribution projects, where a single enclosure might hold 6–12 cassettes to break out 72–144 fibers from six or twelve MPO trunk cables. This packaging reduces per-unit cost and ensures integrators have spare cassettes on hand for adds/moves/changes without triggering restocking orders that delay punch-list closeout.
