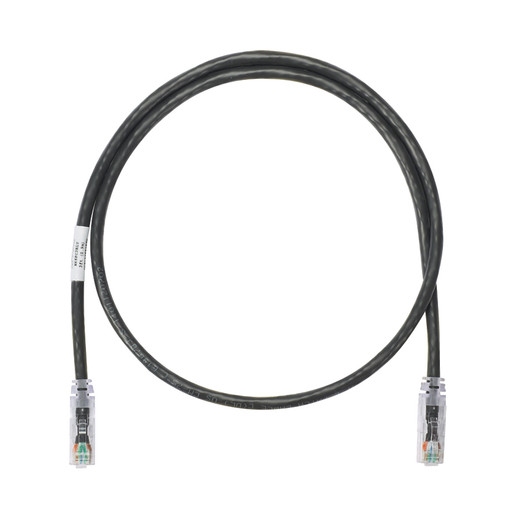

Panduit NK6PC10BLY NetKey Cat 6 Patch Cord
The Panduit NK6PC10BLY NetKey Cat 6 patch cord delivers certified Category 6 performance in a 10-foot black cable engineered for high-density racks and frequent moves, adds, and changes. Built with 24 AWG stranded UTP construction and Panduit's patented tangle-free latch design, this patch cord solves the cable-snag problem that costs integrators time on every service call. Every cord ships 100% performance-tested to exceed ANSI/TIA-568.2-D and ISO 11801 Class E standards across the full 1–250 MHz spectrum, ensuring reliable 10GBASE-T and PoE performance in surveillance NVR uplinks, access control panels, and VoIP infrastructure.
Key Features
- Patented tangle-free latch design prevents snags during cable routing and provides easy one-hand release in crowded patch panels
- Slender strain relief boot fits into high-density 1U patch panels and switch ports where bulky boots create access problems
- 24 AWG stranded conductors deliver flexibility for tight bends behind racks without the stiffness of solid-core premise wire
- 100% performance tested to exceed Category 6 standards from 1–250 MHz, supporting 10GBASE-T at full cable-plant distances
- Supports IEEE 802.3af/at/bt PoE (Type 1–4) for IP cameras, access controllers, and WiFi access points without voltage drop issues
- Enhanced performance modular plugs maintain pair geometry and shield against crosstalk in multi-cable bundles
- CM flammability rating meets NEC Article 800 for general-purpose horizontal wiring and in-ceiling runs
- Compatible with both T568A and T568B wiring schemes for universal deployment across existing infrastructure
Integrators running surveillance NVR uplinks, PoE camera drops, or VoIP panel connections face two recurring problems: cables snagging on adjacent patch cords during service work, and bulky strain relief boots that won't fit into high-density 1U panels. The NK6PC10BLY solves both. Panduit's tangle-free latch uses a low-profile release tab that stays flush with the plug body, so you can route cables in tight bundles without the latch catching on neighboring plugs. The slender boot tapers to 0.281 inches at the plug body—narrow enough to fit 48 ports across a 19-inch panel with room for finger access. On a densely populated switch, that's the difference between a 5-minute port swap and a 20-minute wrestling match with adjacent cables.
The 24 AWG stranded construction gives you the flexibility premise cable can't match. Solid-core Cat 6 premise wire is engineered for long horizontal runs in walls and ceilings, where cables sit static for years. Patch cords live in racks, where cables bend around cable managers, loop through vertical channels, and get moved every time you add a camera or swap a switch. Stranded conductors handle those repeated flexes without the work-hardening and eventual conductor fracture that kills solid-core patch cords in high-cycle environments. The tradeoff is slightly higher DC loop resistance (the reason you don't run stranded cable for 90-meter horizontal runs), but at 10 feet the resistance delta is negligible and the flexibility gain is significant.
Every cord ships with 100% factory performance testing across the full 1–250 MHz bandwidth, covering insertion loss, return loss, NEXT, PS-NEXT, ACR-F, and PS-ACR-F at every frequency step. That's not a sample-batch test or a design-verification test—it's an individual per-cord certification that this specific patch cord meets spec. When you pull a cord out of the bag, you know it will pass a Fluke DTX verification without the "marginal NEXT at 235 MHz" failures that show up with untested commodity patch cords. The enhanced-performance plugs use a staggered-contact design that maintains pair geometry through the termination and minimizes the untwist length where crosstalk spikes. In a 48-port switch serving PoE cameras, that per-port crosstalk control is what keeps your link margins clean when all 48 ports are active.
PoE support covers the full IEEE 802.3 family: 15.4W 802.3af (Type 1), 30W 802.3at (Type 2), 60W 802.3bt Type 3, and 100W 802.3bt Type 4. At 10 feet, DC loop resistance is low enough that voltage drop stays under 1V even at Type 4 current levels, so you can power PTZ cameras, 802.3bt access points, and high-power LED fixtures without the integrator's usual "is the cable the problem?" guessing game when a device won't power up. The cable's UTP construction (unshielded twisted pair) is the right choice for the vast majority of commercial installations—STP (shielded) only matters when you're running cables in high-EMI environments like manufacturing floors near VFDs or alongside fluorescent ballasts, and the grounding complexity STP introduces usually creates more problems than it solves.
The NK6PC10BLY is wired to be compatible with both T568A and T568B termination schemes, so you can use it in any infrastructure without worrying about pinout mismatches. It meets UL 1863 and CSA-C22.2 safety standards, FCC Part 68 (now ANSI/TIA-1096-A) telecommunications requirements, and IEC 60603-7 international connector specs. RoHS compliant. Black jacket. 10-foot length. Packaged individually, sold in cartons of 10.
