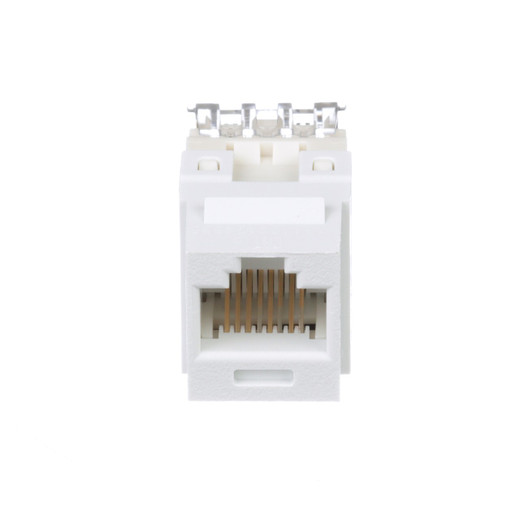

Panduit NK688MWH-Q NetKey Cat 6 UTP Keystone Jack Module
The Panduit NK688MWH-Q is a Category 6 UTP RJ45 keystone jack module engineered for integrators running structured cabling in IP surveillance, access control, and converged network installations. This punchdown-style module terminates 22–26 AWG twisted-pair cables and exceeds ANSI/TIA-568-C.2 and ISO 11801 Class E performance requirements up to 250 MHz. Every jack is factory-tested and serialized for end-to-end traceability, and each contact is plated with 50 microinches of gold to resist corrosion in high-cycle PoE++ deployments. The white housing integrates with Panduit's NetKey faceplate, patch panel, and surface-mount box ecosystem, and the 25-unit package scales to mid-sized projects without opening bulk cartons.
Key Features
- Category 6 UTP performance certified to 250 MHz per ANSI/TIA-568-C.2 and ISO 11801 Class E
- Qualified for 2,500 mating cycles under IEEE 802.3af/at PoE and 802.3bt PoE++ Type 3/4 power loads
- 50-microinch gold-plated contacts for low insertion loss and long-term reliability in PoE environments
- Punchdown termination accepts 22–26 AWG solid or stranded twisted-pair cable
- Factory tested with individual serial number on every module for audit trails and warranty claims
- NetKey-compatible keystone footprint fits Panduit faceplates, modular panels, and surface boxes
- 25-pack quantity bridges the gap between sample orders and full 250-unit cartons
Panduit's NK688MWH-Q keystone jack uses a 110-style punchdown termination block that accommodates both solid and stranded conductors from 22 to 26 AWG, covering the range of plenum-rated, riser, and direct-burial cables common in commercial security and IT builds. The contact geometry exceeds the Category 6 insertion-loss and return-loss specifications across the full 1–250 MHz sweep, ensuring margin for 1000BASE-T Ethernet, HDBaseT extenders, and PoE++ power delivery up to 100 W per port. The 50-microinch gold plating on all eight contacts resists oxidation and fretting corrosion during the frequent plug/unplug cycles typical of IP camera commissioning, access-point moves, and adds/changes in access-control panels. Each module carries a laser-etched serial number that ties back to Panduit's factory test records, simplifying troubleshooting when a link fails certification and providing auditable proof of genuine components for TAA-compliant projects.
The white thermoplastic housing snaps into any standard keystone cutout—Panduit NetKey faceplates, blank patch panels, surface-mount boxes, or third-party furniture grommets—giving integrators a consistent termination platform across office fit-outs, data centers, and retrofit surveillance installations. The 25-module package is sized for typical conference-room builds, small-branch IP camera arrays, or access-control door stations where a full 250-count carton would create long-term inventory waste. Because the NK688MWH-Q is rated for 2,500 mating cycles under the IEEE 802.3bt PoE++ Type 4 thermal and mechanical stress test, it will outlast cheaper jacks in high-power applications such as PTZ cameras with heaters, multi-radio Wi-Fi 6E access points, and LED lighting controllers that pull continuous 90 W loads. The module's rear cable-entry design keeps the front profile flush with the faceplate, preventing snag hazards in tight rack channels and allowing duplex or quad gang boxes to close without interference.
The NK688MWH-Q is UL 1863 and CSA C22.2 listed (file E129886), meets IEC 60603-7 and IEC 60512-99-001 connector durability standards, and complies with the European RoHS directive for restricted substances. The combination of third-party safety certification, serialized factory testing, and published PoE++ cycle qualification makes this jack a low-risk choice for installations that must pass AHJ inspections, satisfy IT security policies requiring traceability, or meet federal procurement rules under the Trade Agreements Act. When you need verifiable Category 6 performance, gold-plated contacts that survive years of PoE heat cycling, and a keystone jack that integrates into the NetKey structured-cabling platform, the Panduit NK688MWH-Q delivers the reliability and documentation that commercial integrators depend on.
