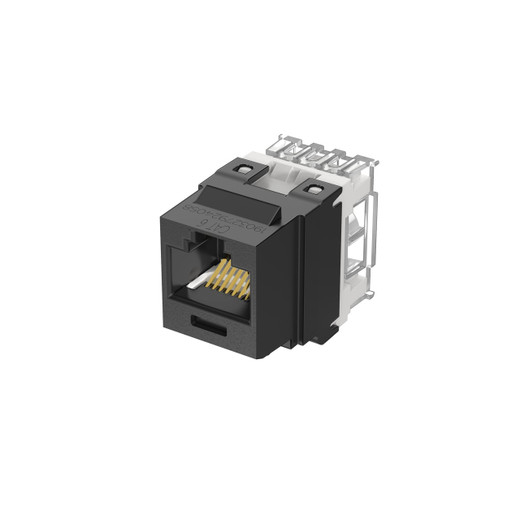

Panduit NK688MBL-Q NetKey Cat6 UTP RJ45 Keystone Jack Module
The Panduit NK688MBL-Q is a Category 6 UTP RJ45 keystone jack module engineered for mission-critical structured cabling installations where termination reliability and long-term network performance are non-negotiable. Built on Panduit's NetKey™ platform, this punchdown-style module terminates 22-26 AWG 4-pair twisted pair cable and ships factory-tested to exceed ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E specifications at frequencies up to 250 MHz. Every contact is plated with 50 microinches of gold for superior signal integrity and corrosion resistance, and each jack carries an individual serial number for full deployment traceability. Packaged 25 units per box (250 per carton), the NK688MBL-Q is color-coded black for organized cable management in high-density enterprise, campus, and datacenter environments.
Key Features
- Factory-tested Category 6 UTP performance to 250 MHz — exceeds ANSI/TIA-568-C.2 and ISO 11801 Class E channel and component requirements
- 50 microinch gold-plated contacts deliver consistent connectivity and resistance to oxidation across the life of the installation
- Rated for 2,500 insertion cycles with IEEE 802.3af (15.4W) and 802.3at (30W) PoE, plus proposed for 802.3bt Type 3 (60W) and Type 4 (100W) applications
- Punchdown termination for 22-26 AWG 4-pair solid copper cable — supports 110-style punch tools for fast, repeatable field installation
- Individual serial number on every jack enables asset tracking and audit-trail documentation for compliance and warranty purposes
- Universal keystone form factor fits NetKey faceplates, modular patch panels, surface mount boxes, and most third-party keystone-compatible outlets
- UL 1863 and CAN/CSA-C22.2 No. 182.3 Listed (File E129886), RoHS compliant, meets ANSI/TIA-1096-A and IEC 60603-7 modular jack standards
- Black housing for color-coded cable management — integrates with Panduit's NetKey family of faceplates, inserts, and patch panels
- 25-unit packaging (10 packs per carton) balances project inventory with per-floor or per-closet deployment planning
The NK688MBL-Q addresses three persistent installer challenges: termination consistency, PoE power delivery reliability, and documentation compliance. Panduit factory-tests every module to verify pair-to-pair crosstalk (NEXT, FEXT, PowerSUM), return loss, and insertion loss across the full 1-250 MHz Category 6 bandwidth before it leaves the manufacturing line. This pre-qualification eliminates the field variability that causes intermittent link flap or marginal certification results on job sites where multiple technicians terminate hundreds of drops per day. The 50-microinch gold plating on the contacts — thicker than the industry-standard 30 microinches — maintains gas-tight connections even in environments with elevated humidity or airborne contaminants, and the rated 2,500 mating cycles (5× the TIA minimum) make these jacks suitable for work-area outlets subject to frequent patch cord changes. For PoE-intensive deployments (IP cameras, access points, VoIP phones, door controllers), the NK688MBL-Q's qualification for 802.3at and proposed support for 802.3bt Type 3/4 means you can deliver up to 100 watts per port without de-rating or thermal concerns that plague lower-grade terminations.
In the field, the NK688MBL-Q integrates into structured cabling architectures where keystone modularity and color-coding discipline separate professional installations from ad-hoc patchwork. The universal keystone footprint drops into Panduit NetKey single-gang faceplates (NK1-series), dual-gang faceplates (NK2-series), blank modular patch panels (NKPP-series), and surface mount boxes (NKSB-series), as well as most Leviton QuickPort, Hubbell iStation, and generic keystone outlets. The punchdown IDC accepts 22-26 AWG solid copper conductors (the standard range for Category 6 horizontal cable) and uses the familiar 110-style termination sequence — pair 3 (white-green/green) on pins 1-2, pair 2 (white-orange/orange) on pins 3-6, pair 1 (white-blue/blue) on pins 4-5, pair 4 (white-brown/brown) on pins 7-8 per T568A/B wiring. Each module ships with an integral cable management bar and strain relief clip that secure the cable jacket within 0.5 inches of the termination point, maintaining the twist ratio required for Category 6 alien crosstalk (AXT) performance in high-density bundles. The black housing color matches Panduit's standard black faceplates and panels, enabling color-coded network segmentation strategies (e.g., black = data, white = voice, red = security) across multi-system installations.
The NK688MBL-Q carries UL 1863 Listing (Communications Circuit Accessories) and CSA C22.2 No. 182.3 certification under File E129886, which satisfies the National Electrical Code Article 800 requirements for communications raceways in commercial buildings and the California Title 24 mandates for labeled components in state-funded projects. The module meets ANSI/TIA-1096-A (Performance Categories for Copper Telecommunications Jacks) for Category 6 insertion loss, return loss, and crosstalk limits, and IEC 60603-7 (Detail Specification for 8-Way Unshielded Free and Fixed Connectors) for mechanical durability and environmental resistance. RoHS compliance eliminates lead, mercury, cadmium, and hexavalent chromium from the manufacturing process, addressing WEEE Directive requirements for EU-market projects and California Proposition 65 disclosure obligations. The individual serial number laser-etched into the jack body provides a unique asset identifier for DCIM (data center infrastructure management) systems, warranty claim documentation, and post-installation testing records — critical when a 500-drop installation requires forensic troubleshooting or when a building owner demands proof of Category 6 component pedigree during a sale. For integrators managing campus refresh projects, multi-tenant office build-outs, or hospitality network upgrades where termination speed, PoE reliability, and audit-trail documentation determine whether you finish on schedule and on budget, the NK688MBL-Q delivers Panduit's factory-controlled quality in a field-installable keystone format that installs as fast as a punchdown and certifies as clean as a pre-terminated cassette.
