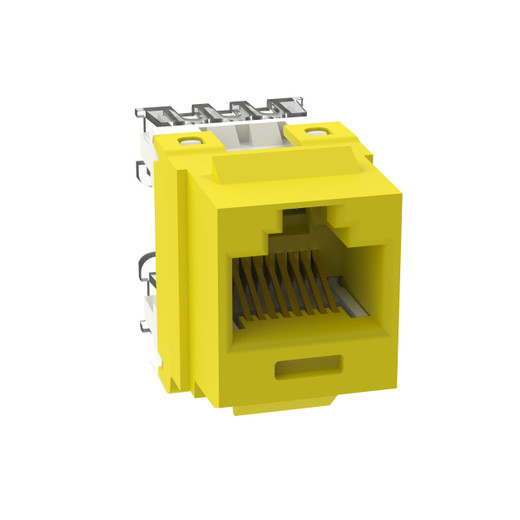

Panduit NK688MYL-Q NetKey Cat 6 Punchdown Keystone Jack - Yellow, 25-Pack
Structured cabling reliability starts at the termination point. The Panduit NK688MYL-Q NetKey Cat 6 UTP keystone jack delivers factory-verified performance for commercial networks, data centers, and IP surveillance infrastructures where gigabit throughput and PoE++ power delivery are non-negotiable. Sold in contractor-friendly 25-packs with individual serialization for asset tracking, these yellow modules exceed ANSI/TIA-568.2-D channel requirements and support 2500 connection cycles under full 802.3bt Type 4 load—critical for high-density switch environments where patch cable churn is constant.
Key Features
- Cat 6 UTP performance exceeding ANSI/TIA-568.2-D and ISO 11801 standards
- 50-microinch gold-plated contacts for low insertion loss and corrosion resistance
- 2500 connection-cycle durability rated for IEEE 802.3af/at/bt (PoE, PoE+, PoE++ Type 3 & 4)
- 100% factory tested—zero field failures from manufacturing defects
- Individual jack serialization for documentation and traceability
- Tool-free 110-style punchdown termination for 22-26 AWG solid or stranded pairs
- UL 2043 plenum rating for air-handling spaces without conduit
- Yellow boot for instant circuit identification in multi-service installations
- Keystone form factor compatible with NetKey faceplates, patch panels, and surface boxes
- 25-jack pack density reduces per-drop cost on rollouts
Each NK688MYL-Q module terminates four twisted pairs using Panduit's proven 110-style IDC contacts, which maintain pair geometry through the punchdown without nicking conductors. The 50-microinch gold plating on the RJ45 interface ensures consistent contact resistance below 20 milliohms even after hundreds of plug insertion cycles, preventing the intermittent link drops common with tin or bare-bronze contacts in high-use IDF closets. Factory testing verifies NEXT, return loss, and insertion loss across the full 1–250 MHz spectrum before shipping, eliminating the need for field certification on every drop unless required by contract. Individual serialization—laser-etched on the jack body—enables as-built documentation that maps physical layer infrastructure to logical VLANs, a requirement in finance, healthcare, and government installations subject to audit.
The 2500-cycle mechanical endurance rating is tested specifically under PoE++ load conditions, meaning these jacks handle the thermal and contact-wear stress of 90W 802.3bt Type 4 delivery to PTZ cameras, access points, and LED lighting controllers without spring-tension degradation. UL 2043 plenum compliance allows direct installation in ceiling return-air plenums common to open-plan offices and retail spaces, eliminating the need for costly conduit runs between the structured cabling backbone and endpoint devices. The yellow boot provides instant visual differentiation—use it to denote surveillance VLANs, building automation circuits, or temporary event networks alongside standard blue/gray data jacks. The keystone format integrates seamlessly with Panduit's NetKey faceplate and modular patch panel ecosystem, allowing tech refresh or circuit adds without replacing mounting hardware.
Where this jack separates from commodity keystones: the combination of serialized traceability and PoE++-validated cycle life. In hyperscale data centers and enterprise campuses running 10GBASE-T to the desktop, knowing that jack serial number traces back to a specific manufacturing lot—and that it's proven to survive 2500 hot-swap events under 90W load—means fewer trouble tickets and faster root-cause isolation when a link does fail. That's the difference between a $5 part and a $6 part that eliminates a $150 truck roll.
