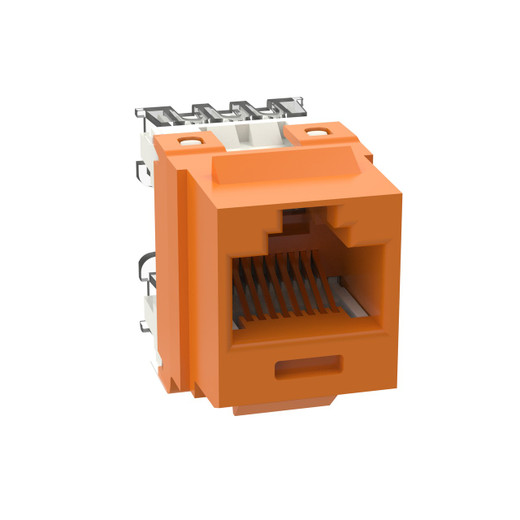

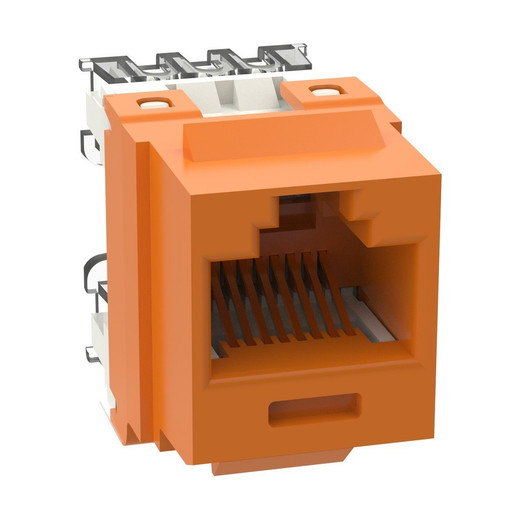

Panduit NK688MOR-Q NetKey Cat 6 Punchdown Jack Module, Orange
The Panduit NK688MOR-Q is a Cat 6 UTP RJ45 keystone jack designed for high-density structured cabling deployments where color-coded port identification and field-termination flexibility are critical. Each module terminates 4-pair, 22-26 AWG twisted pair cable using 110-style punchdown blocks, ships 100% factory-tested to exceed ANSI/TIA-568.2-D channel and component requirements, and carries individual serial numbers for asset tracking and warranty verification. The orange housing supports ANSI/TIA-606-B administration standards, enabling installers to visually segment voice, data, surveillance, or access-control networks within a single rack or wall plate. Twenty-five jacks per package provide enough terminations for a typical IDF or small datacenter patch-panel row without mid-project reordering.
Key Features
- Cat 6 UTP performance exceeding ANSI/TIA-568.2-D and ISO 11801 requirements for Gigabit Ethernet and 10GBASE-T applications
- 50 microinches of gold plating on contacts for low insertion loss and superior corrosion resistance over 2,500 connection cycles
- 110-style punchdown termination for 22-26 AWG solid or stranded twisted-pair cable, compatible with standard impact tools
- Individually serialized modules for end-to-end cable-plant documentation and traceability
- Universal keystone footprint fits Panduit NetKey faceplates, modular patch panels, surface-mount boxes, and third-party keystone outlets
- Orange housing meets ANSI/TIA-606-B color-coding standards for network segmentation and port identification
- IEEE 802.3af/at/bt Type 3 and Type 4 PoE support for IP cameras, access points, and VoIP phones up to 90 W per port
- UL 1863 and UL 2043 plenum ratings for above-ceiling and air-handling-space installations without additional conduit
- RoHS compliant for green-building and LEED documentation requirements
The NK688MOR-Q uses a staggered-contact design that maintains pair geometry during insertion, reducing crosstalk and return loss compared to in-line jack architectures. Contacts are phosphor bronze with 50 microinches of gold over nickel, specified for 2,500 mating cycles under IEEE 802.3bt Type 4 PoE loads—critical for surveillance and access-control installations where cameras and card readers draw continuous power. The 110-style IDC termination block accepts 22-26 AWG solid or stranded conductors and provides gas-tight connections that resist oxidation in high-humidity environments. Each jack ships with a dust cover and cable tie-mount tab, and the serialized label includes a QR code for integration with DCIM and cable-management platforms. Panduit's factory testing verifies insertion loss, return loss, NEXT, PSNEXT, ACR-F, and DC loop resistance on every unit before packaging, eliminating the field failures common with sample-tested commodity jacks.
The NetKey jack family integrates with Panduit's modular faceplate, patch-panel, and surface-mount-box ecosystem, enabling installers to build custom port configurations without proprietary frames or bezels. The NK688MOR-Q fits any keystone cutout that meets the EIA/TIA standard 0.65-inch width and accepts snap-in retention, including Panduit's NKFP series faceplates, NK6PP series patch panels, and NKSMB series surface boxes, as well as third-party keystone outlets from Leviton, Hubbell, and Belden. Orange color-coding is commonly assigned to demarcation points, auxiliary circuits, or isolated VLANs per ANSI/TIA-606-B Appendix C, making the NK688MOR-Q ideal for separating IP camera PoE drops from general data infrastructure or marking telecom hand-off points in multi-tenant buildings. The module's compact 0.9-inch height and 1.16-inch depth fit shallow electrical boxes and tight rack spaces, and the side-entry cable path supports vertical and horizontal mounting orientations without exceeding the 1-inch bend-radius limit for Cat 6 cable. Full PoE support across all four pairs means a single jack can power an 802.3bt Type 4 PTZ camera, high-power access point, or digital signage display without mid-span injectors or separate power wiring.
Compliance with ANSI/TIA-568.2-D, ISO 11801, IEC 60603-7, UL 1863, and UL 2043 ensures the NK688MOR-Q meets NEC Article 800 plenum requirements and supports 10GBASE-T applications up to 55 meters when installed with Cat 6A cable—eliminating the need for fiber uplinks in small to mid-size IP surveillance or access-control networks. The UL 2043 plenum rating allows installation in HVAC plenums without metal conduit, reducing labor and material costs in drop-ceiling environments. RoHS compliance satisfies green-building certifications (LEED v4 MRc4, BREEAM Mat 01) and California Proposition 65 disclosure requirements. Twenty-five jacks per package align with standard 24-port patch-panel densities, and the 250-unit carton quantity supports large rollouts or pre-kitted site packages for national integrators. The individually serialized label and asset-tracking QR code integrate with Panduit's PanView iQ infrastructure-management software, enabling installers to generate as-built documentation, trace cable IDs, and schedule recertification intervals from a single database—critical for maintaining TIA-942 datacenter uptime standards and SOC 2 audit trails in financial, healthcare, and government facilities.
